MeterHome 14.3kWh Stackable Home Battery Backup System | 10kW Output | Solar, Grid & Generator Compatible | LiFePO4

$14,061.00

SKU# MHOME-K001-V

MeterHome is the all-in-one home energy storage system for whole-home backup, rate-hike protection, and everyday reliability. It integrates solar, grid, and generator with safe, stackable LiFePOâ‚„ batteries, real-time weather outage protection, and 24/7 US-based monitoring – designed, built, and tested in the USA with a 10-year warranty.

Choose Your Inverter Option*

Choose Your Battery Option*

Choose Your Inverter Option*

Choose Your Battery Option*

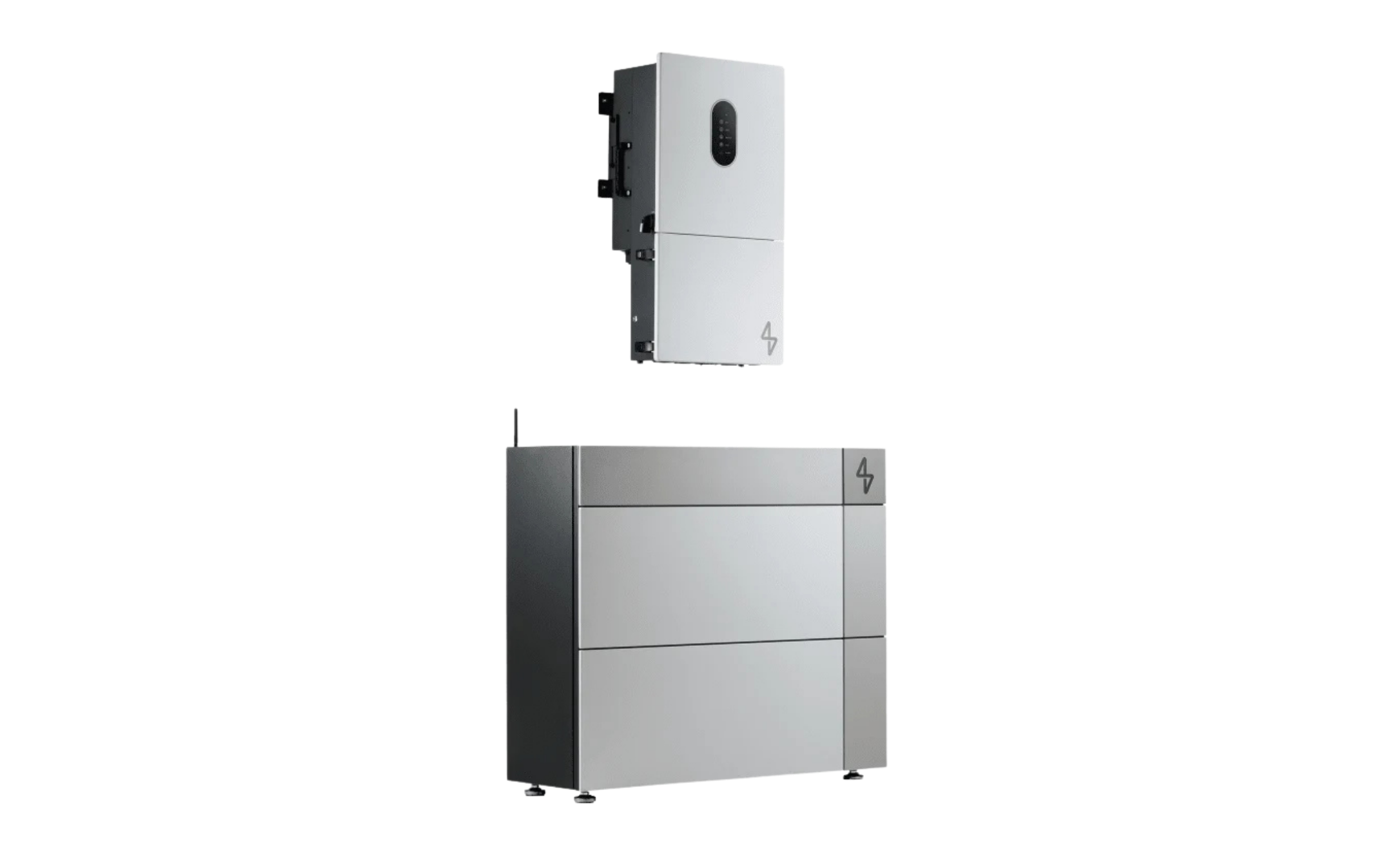

Introducing MeterHome

The all-in-one home backup energy system that keeps you powered through outages, rate hikes, and everyday surprises. It integrates seamlessly with solar, grid, and generator inputs, combining smart energy management with stackable capacity for true energy independence. Whether you’re living off-grid, preparing for emergencies, or cutting monthly bills, MeterHome adapts to your needs with safe, high-performance LiFePO₄ batteries and advanced inverter technology—built in the USA and backed by a 10-year warranty.

Whole Home Battery 14.3 kWh/10kW

  • No Solar Required For Peak Shaving (Utility Savings)

  • Self Consumption (Utility Independence) with Solar

  • Emergency Home Backup Power

  • Real-time Weather Outage Protection

Battery Downloads

SKU#:MHOME-BATT-MOD-7, MHOME-K001, MHOME-K002
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
Install Guide:DownloadDOWNLOAD

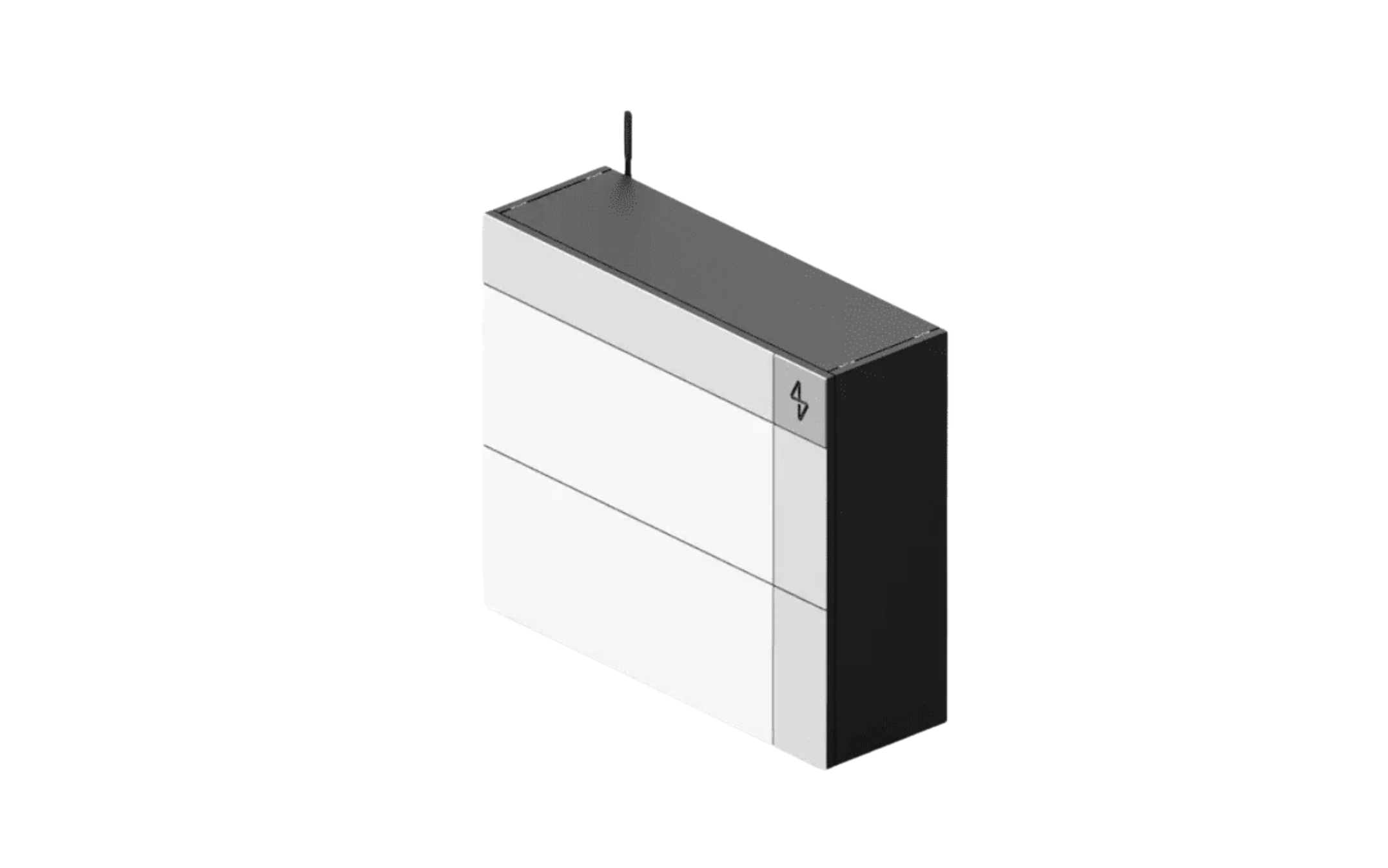

Battery Specifications

Dimension (W x D x H):39.6″ x 16″ x 34.5″ (1006mm x 406mm x 876mm)
Weight Approximation:463 lbs. (210 kg)
Installation Style:Indoor, Floor Mounted
Cooling:air-cooled
Humidity:5%-95%/span>
Maximum Operation Altitude:max 6,562ft (2000m)
Enclosure Protection Rating:IP44
Energy Configuration (kWh):14.3kWh
Maximum Charging / Discharging Current (A):150
Battery Operating Voltage (V):40-58.4
Battery Chemistry:LiFePO4
Charging Temperature Range:0°C to 35°C (32°F to 95°F)
Discharging Temperature Range:-30°C to 35°C (-22°F to 95°F)
Cycle Life:25°C (77°F) 8000 cycles, 70% SOH / 45°C (113°F) 3000 cycles, 70% SOH
Safety Certification: UL60730, UL1973, UL9540, UL9540A, UN38.3
Warranty:10 years (Standard)
Connection In Parallel:8 Battery Enclosures

Inverter Downloads

SKU#:MHOME-INV010
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
Install Guide:DownloadDOWNLOAD

Inverter Specifications

Dimension (W x D x H):16.5″ x 9.4″ x 31.5″ (420mm x 240mm x 800mm)
Weight Approximation:88 lbs. (40 kg)
Mounting:Wall bracket
Cooling Method:Fan Cooling
Ingress Protection Degree:NEMA 3R
Operating Temperature Range:-20°C to 60°C (-4°F to 140°F)
Maximum Operation Altitude:max 6,562ft (2000m)
Relative Humidity:0~100%
Ingress Protection Degree:NEMA 3R
Nominal AC Output (W):10,000
Maximum PV Input Power (W):15,000
Maximum Input Current per MPPT (A):30/22/22
Nominal Grid Voltage (Vac):120/240V (Split phase) / 208V (2/3 phase)
Nominal Grid Frequency (Hz):50/60
Rated PV Input Voltage (Vdc):600
Start Up DC Voltage (Vdc):90
MPPT Voltage Range (Vdc):70-540
Maximum PV Circuit Current (A):44+44
Number of MPPT:3
String per MPPT:2/2/2
PV Connection Way:Terminals
Peak Power (off grid):2 times of rated power, 10s
Power Factor:0.8 leading to 0.8 lagging
DC Injection Current (mA):THD <3% (Linear load <1.5%
Maximum Efficiency (PV to AC):98.0%
Maximum Efficiency (BAT to AC):94.5%
CEC. Efficiency:96.5%
Communication Interface:CAN(for BMS), DRM/RS485 (for meter), RS485
Safety Certification:UL1741, CSA C22.2, UL1699B
Grid Regulation:2018, HECO SRD 2.0
EMC:FCC Part 15 Class B
Protection Category:Class I
Connects up to:9 Inverters

10-Year MeterHome Manufacturer Warranty
