Weight Approximation:88 lbs. (40 kg)
Dimension (W x D x H):16.5″ x 9.4″ x 31.5″ (420mm x 240mm x 800mm)
Mounting:Wall bracket
Cooling Method:Fan Cooling
Ingress Protection Degree:NEMA 3R
Operating Temperature Range:-20°C to 60°C (-4°F to 140°F)
Maximum Operation Altitude:max 6,562ft (2000m)
Relative Humidity:0~100%
Nominal AC Output (W):10,000
Maximum PV Input Power (W):15,000
Maximum Input Current per MPPT (A):30/22/22
Nominal Grid Voltage (Vac):120/240V (Split phase) / 208V (2/3 phase)
Nominal Grid Frequency (Hz):50/60
Rated PV Input Voltage (Vdc):600
Start Up DC Voltage (Vdc):90
MPPT Voltage Range (Vdc):70-540
Maximum PV Circuit Current (A):44+44
Number of MPPT:3
String per MPPT:2/2/2
PV Connection Way:Terminals
Peak Power (off grid):2 times of rated power, 10s
Power Factor:0.8 leading to 0.8 lagging
DC Injection Current (mA):THD <3% (Linear load <1.5%)
Maximum Efficiency (PV to AC):98.0%
Maximum Efficiency (BAT to AC):94.5%
CEC. Efficiency:96.5%
Communication Interface:CAN(for BMS), DRM/RS485 (for meter), RS485
Safety Certification:UL1741, CSA C22.2, UL1699B
Grid Regulation:2018, HECO SRD 2.0
EMC:FCC Part 15 Class B
Protection Category:Class I

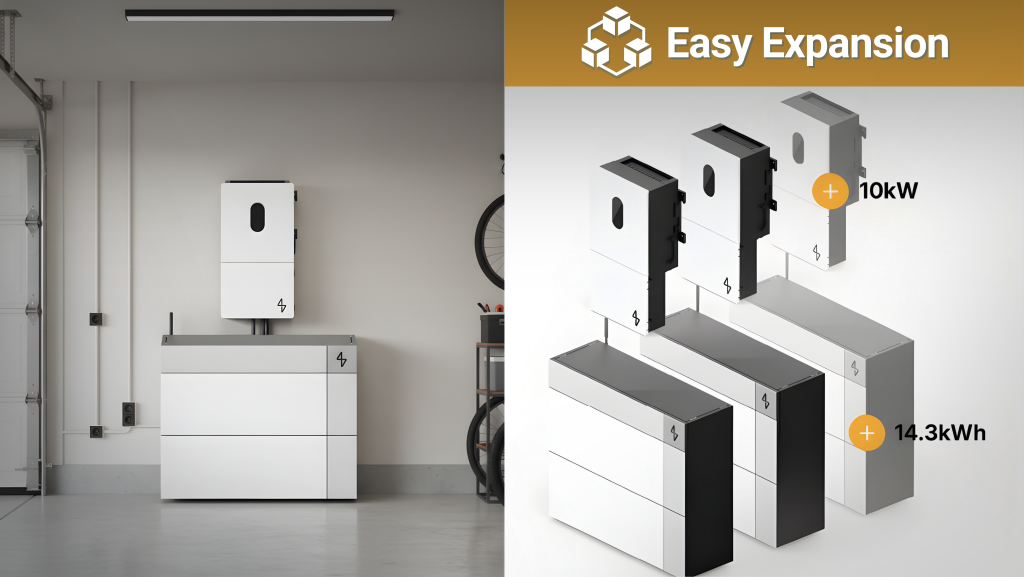

Connects up to:9 Inverters
