Growatt 3K Inverter

$460.00

SKU# INV001

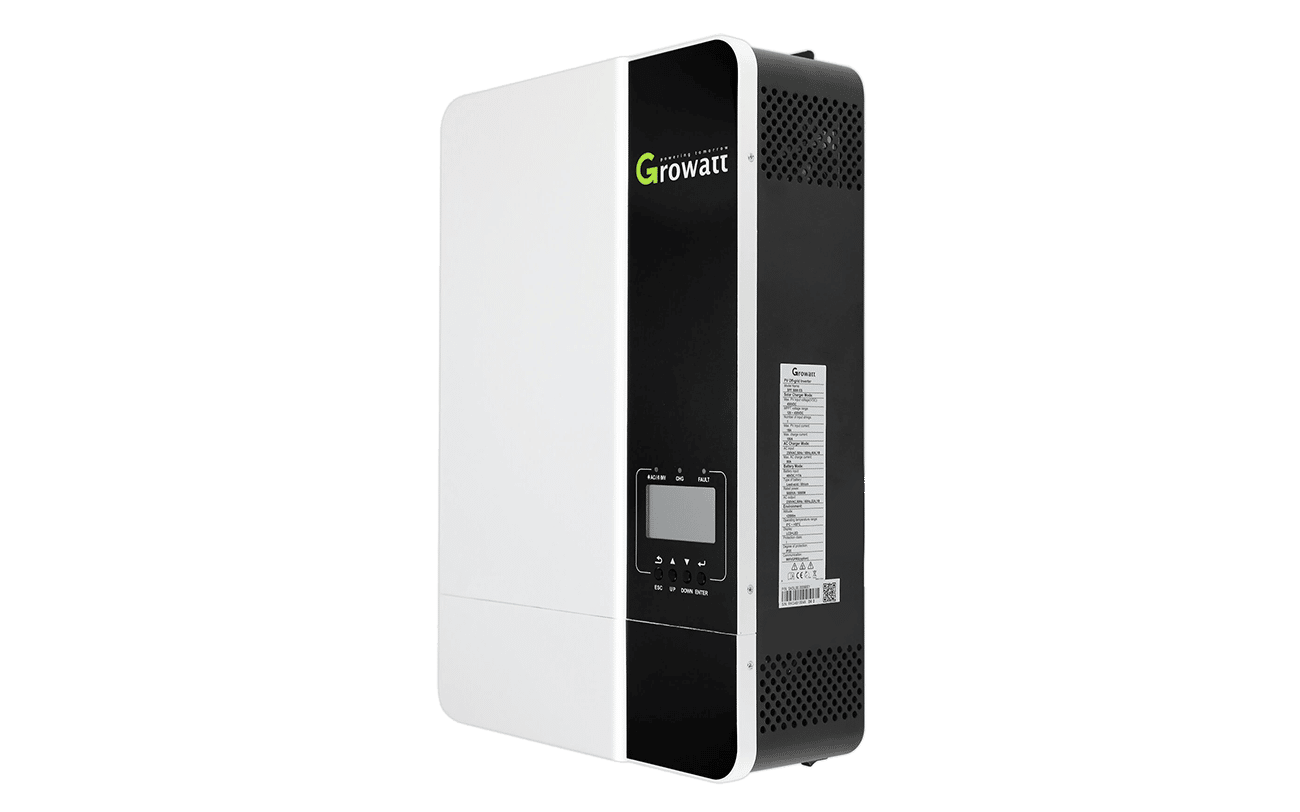

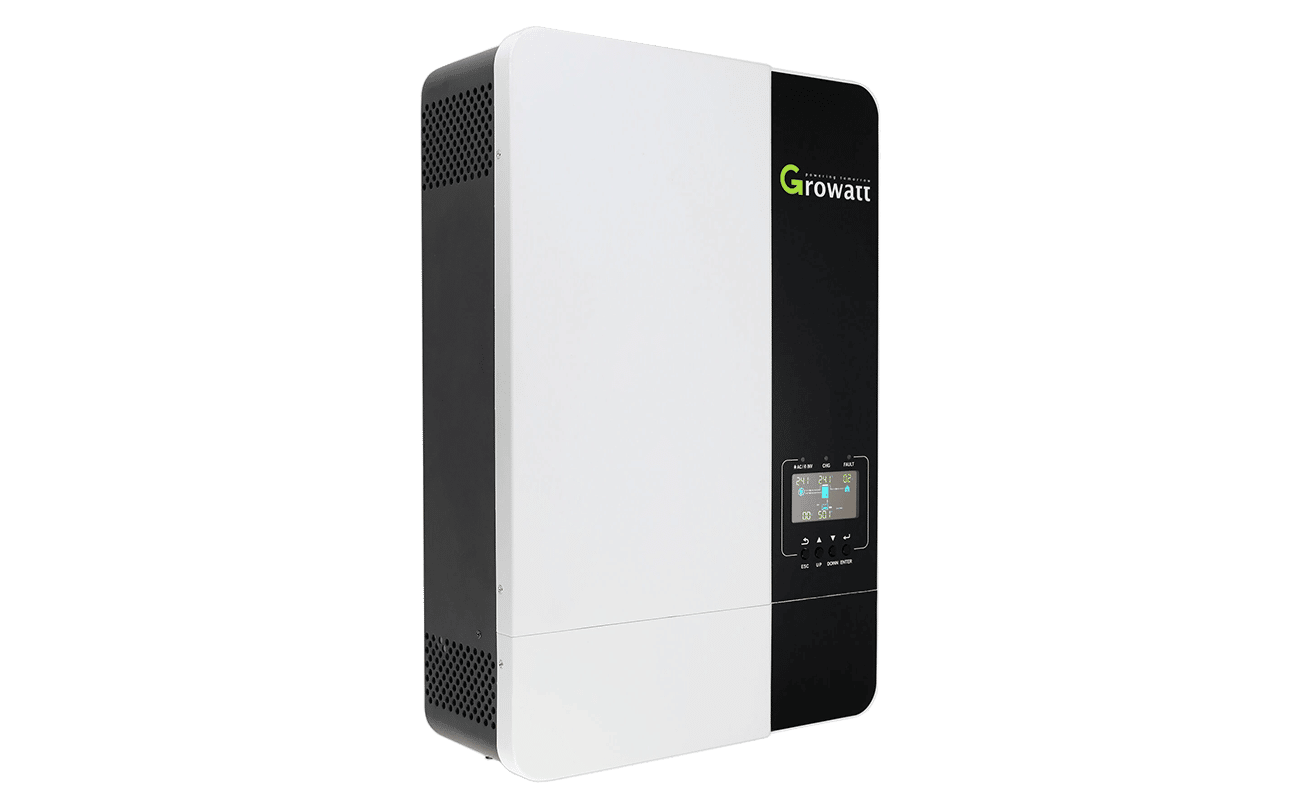

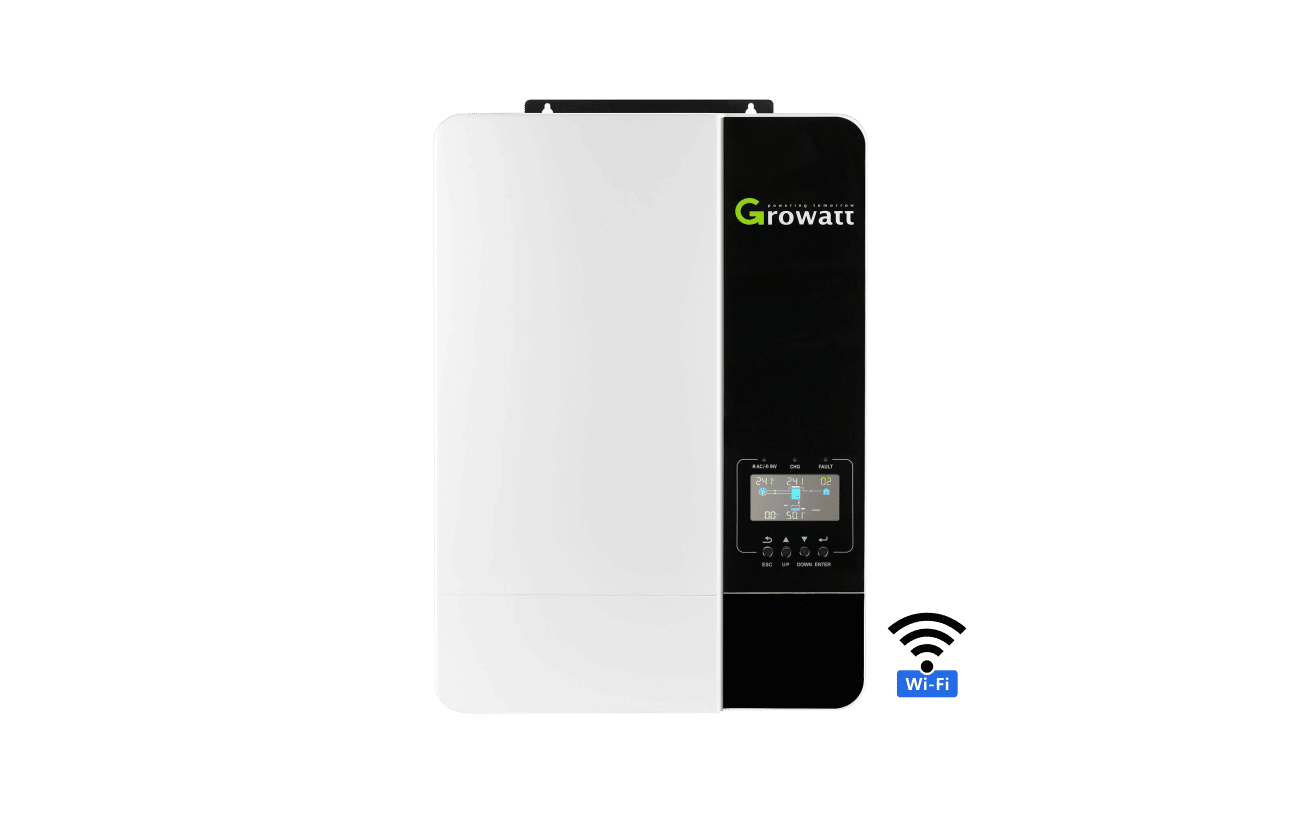

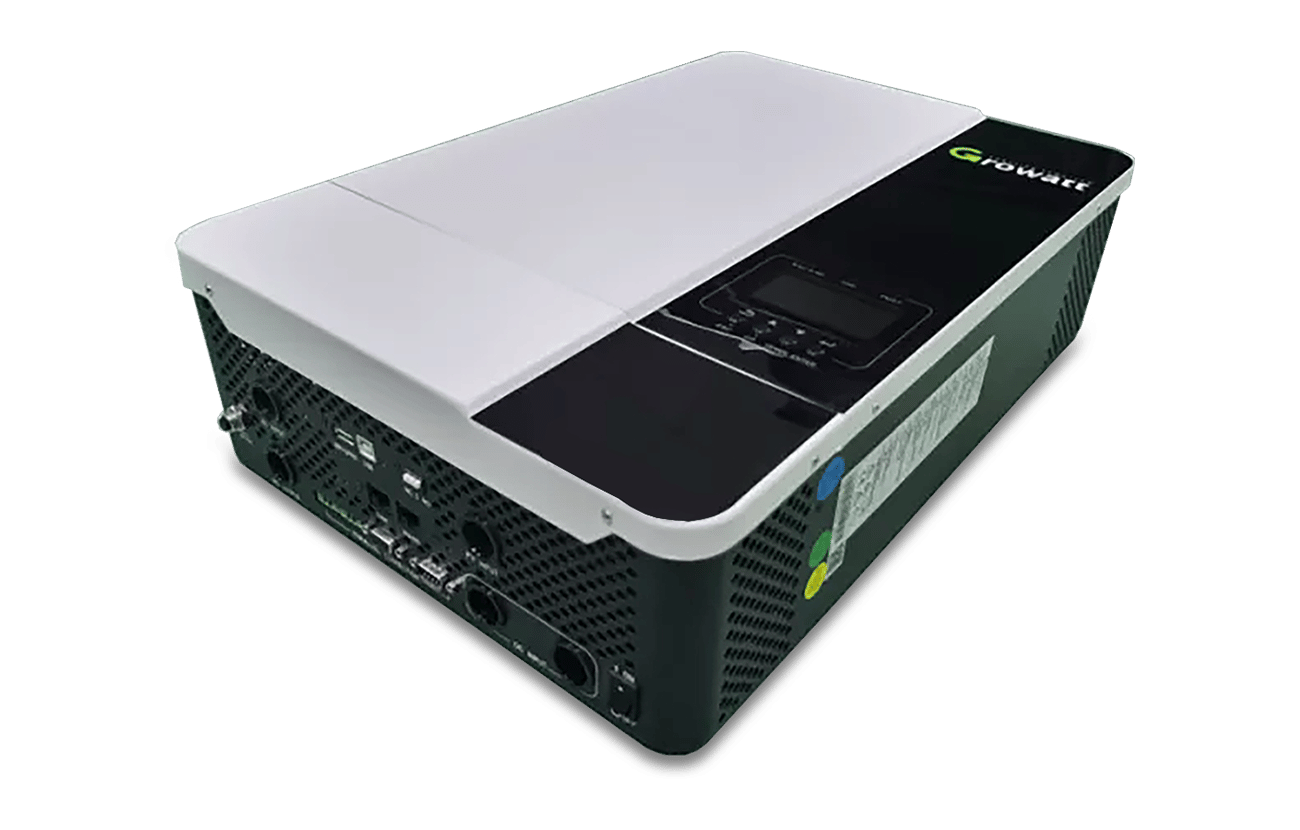

The SPF 3000TL LVM-ES module is Growatt’s cutting-edge, multi-functional off grid and solar inverter-charger, and serves as an essential component for any small to mid-sized power system. This model was designed specifically for residential systems, off-grid and solar systems, & self-consumption applications, and comes equipped with an MPPT solar charge controller, high-frequency pure sine inverter, a UPS function module, and more all in one compact unit.

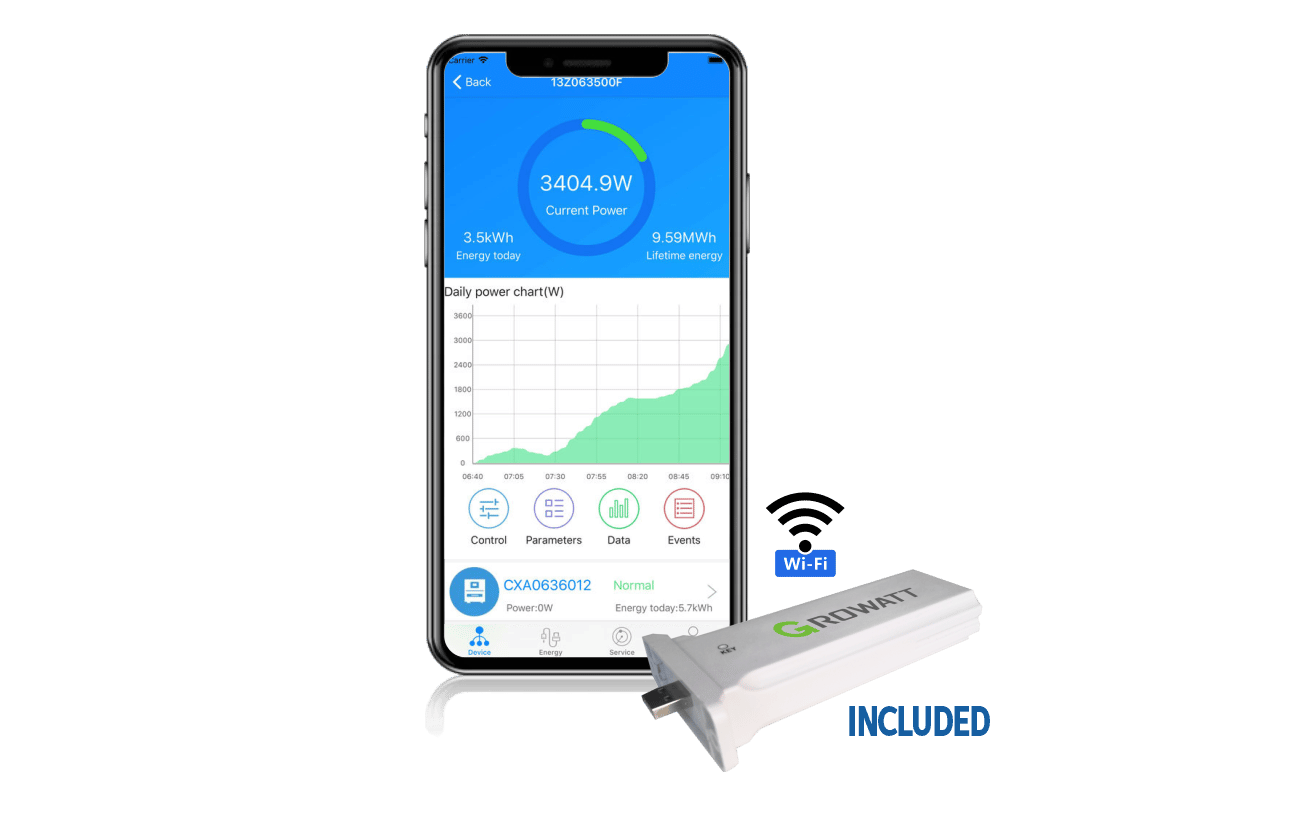

The included WiFi module is a plug-and-play monitoring device able to be connected directly to your inverter, allowing you to monitor the status of your power system online or from your mobile phone anytime, anywhere. Plus, this inverter works with or without batteries, so you can create a power system tailored to your needs. Combine this 3kW inverter and charger with your PV array, stable grid connection, or favorite BigBattery battery to equip your home or camper van with a safe, reliable power system.

Features

  • High-Frequency Pure Sine Waveform
  • Integrated MPPT Charge Controller
  • Integrated AC Transfer Switch
  • High PV Input Voltage
  • Configurable Off-Grid or Solar Input Priority
  • Joint PV & Grid Load Support
  • Equalization Charging Function
  • Flexible Charge & Discharge Scheduling
  • CAN/RS485 Protocols for BMS Communications
  • WiFi Remote Monitoring
  • Expandable up to 18kW
  • 3-Phase & Split-Phase Output (6 units req.)
  • In-Depth LCD Display
  • Charging, Status, & Fault Indicators
  • Lightweight & Compact

Suitable For

  • 48V Battery Systems
  • Residential Solar Systems
  • Mid-Sized Off-Grid Systems
  • Backup Power Systems
  • Cabins and Small Campers
  • Self-Consumption Applications
  • Parallel Scalability

Inverter Downloads

SKU#:INV001
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
Shine WiFi-F Spec Sheet:DownloadDOWNLOAD

Inverter Specifications

Battery Voltage:48VDC
Rated Power:3000VA/3000W
Surge Power:6000VA
AC Voltage Regulation (Battery Mode):100/110/120VAC at 50/60Hz
Waveform:Pure Sine Wave
Efficiency (Peak):90%
Transfer Time (Typical):10ms
Transfer Time (Max.):20ms
Parallel Capability:Yes (Max 6 units)
Input Voltage:120VAC
Selectable Voltage Range (For Personal Computers):95 – 140VAC
Selectable Voltage Range (Home Appliances):65 – 140VAC
Charge Current:40A
Frequency Range (Auto-Sensing):50/60Hz
Max. PV Array Power:4000W
Max. PV Charge Current:80A
Max. PV Array Open Circuit Voltage:250VDC
No. of Independent MPP Trackers / Strings Per MPP Tracker:1/1
Standby Power Consumption:2W

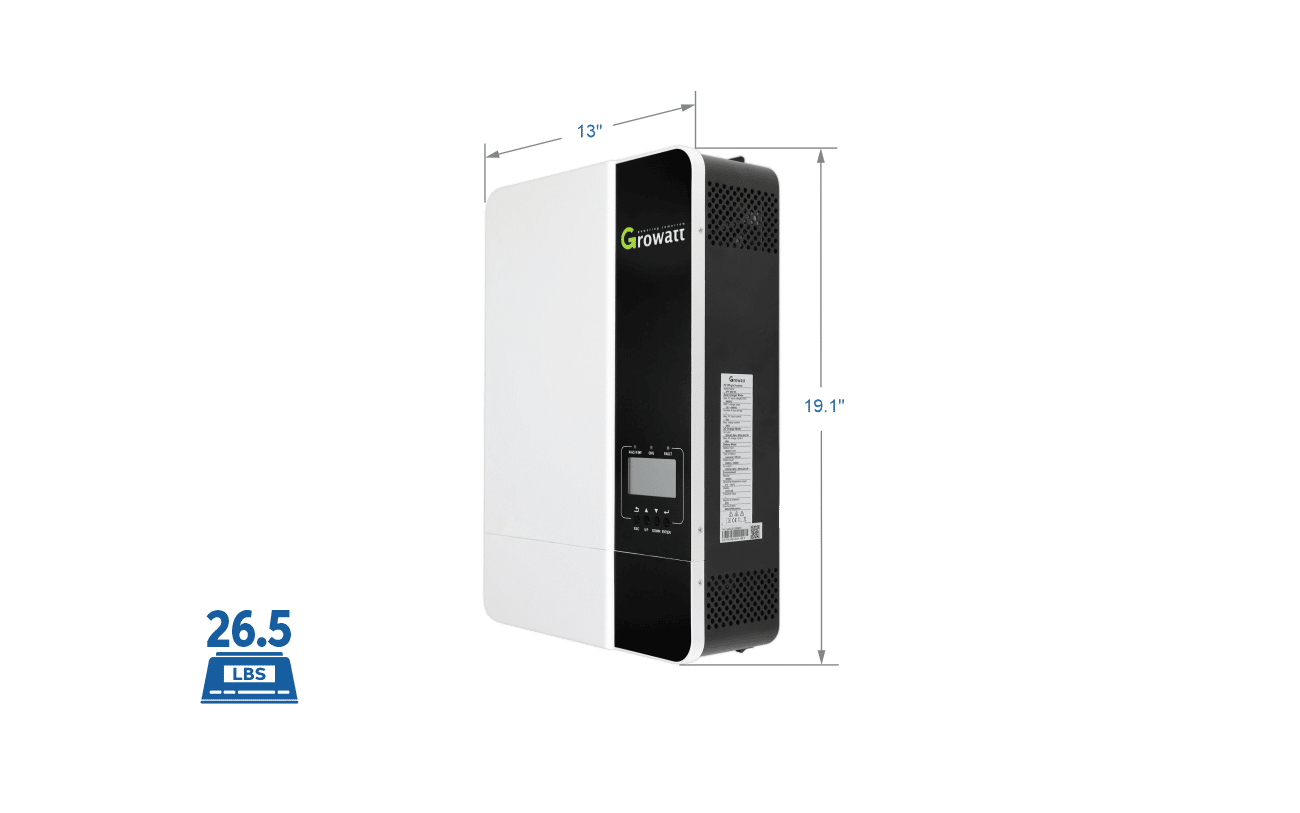

Weight:26.5 lbs
Depth:5.3 in
Width:13 in
Height:19.1 in
Operating Temperature:0°C (32°F) – 50°C (122°F)
Storage Temp:-15°C (5°F) – 60°C (140°F)
Relative Humidity (Non-Condensing):5% – 95%
Protection Rating:IP20
