ETHOS + EG4 FLEXBOSS21 ESS

$30,240.00

SKU# K0241-V

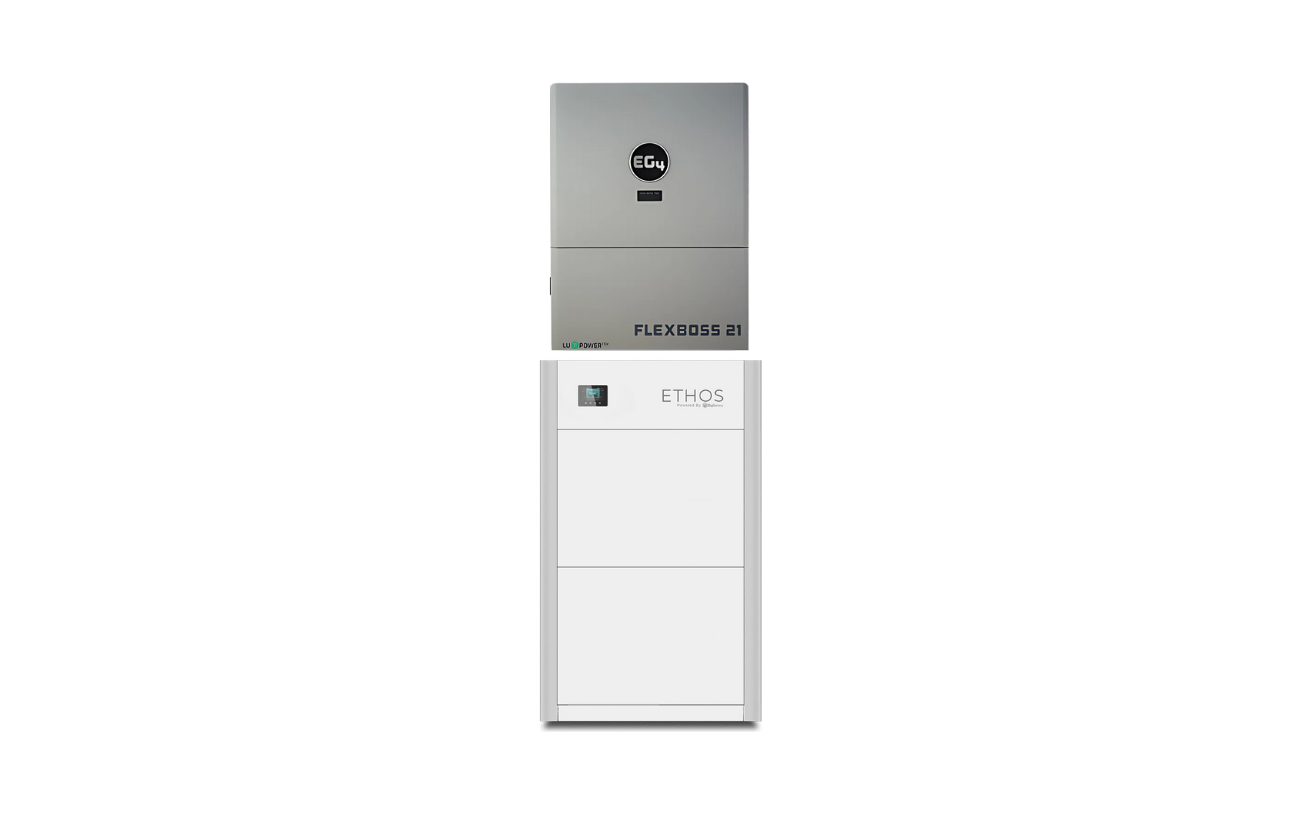

The BigBattery ETHOS + EG4 FlexBOSS21 system pairs modular, UL-certified 48V lithium storage with a next-generation hybrid inverter for a complete, future-ready energy solution. ETHOS provides scalable capacity, intelligent management, and a 12-year warranty for long-lasting, maintenance-free energy independence, while FlexBOSS21delivers 12kW output and up to 21,000W of PV input with 3 MPPTs, 90A grid feed-through at 120/240VAC, and seamless integration with the EG4 GridBOSS MID gateway for smart load management, AC coupling, and generator support. With built-in rapid shutdown, ground fault and arc fault protection, plus Wi-Fi monitoring and mobile alerts, this combo offers safe, efficient, and highly flexible power for modern on-grid or off-grid residential and commercial systems.

Choose Your Inverter Option*

EG4 18kPV EG4 FlexBoss18 EG4 FlexBoss21 None

Choose Your Battery Option*

BigBattery ETHOS EG4 280Ah All Weather EG4 280Ah Indoor EG4 314Ah Indoor None

Choose Your Inverter Option*

EG4 6000XP EG4 12000XP None

Choose Your Battery Option*

BigBattery NEXUS BigBattery ETHOS BigBattery HUSKY2 INV EG4 280Ah All Weather EG4 280Ah Indoor

Battery Downloads

SKU#:K0241, K0242, K0243, K0244, K0245, K0246, K0247, K0248, K0249, K0250, K0251
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
UL9540 Certificate – BigBattery ETHOS + EG4 FlexBOSS21:DownloadDOWNLOAD
UL9540A Certificate:DownloadDOWNLOAD
UL1973 Certificate:DownloadDOWNLOAD
UN38.3 Certificate:DownloadDOWNLOAD
Safety Data Sheet:DownloadDOWNLOAD
CEC Listing – BigBattery ETHOS + EG4 FlexBOSS21:Go to linkGO TO LINK

Battery Specifications

GTIN-12 (U.P.C.):850061252005
System Voltage:48V
Nominal Voltage:51.2V
Chemistry:LiFePO4
kWh Capacity:10.24kWh
Ah Capacity:200Ah
Charging Voltage Range:55.6 – 57V
Max Charge Voltage:57V
Operating Voltage Range:48 – 57V
Suggested Low Voltage Cutoff:48 – 50.8V
BMS Cutoff Range:42 – 47V
Cell Configuration:16S 2P
Max Continuous Discharge Current:200A
Max Continuous Power:10240W
Max Discharge Peak Current:300A (Max 5 seconds)
Max Charge Current:200A
Charge Temperature Range:32°F – 113°F (0°C – 45°C)
Discharge Temperature Range:-4°F – 140°F (-20°C – 60°C)
Optimal Discharge Temperature Range:59°F – 95°F (15°C – 35°C)
Storage Temperature Range (SoC >50%):-4°F – 113°F (-20°C – 45°C)(Max 6 months)
Weight:273 lb (123.8 kg)
Depth:6.7 in (170 mm)
Width:26.5 in (674 mm)
Height:43.3 in (1100 mm)
Max Connections:Up to (16) parallel connections per control box
Protection Rating:IP65 / NEMA 4X
Communications:CANBus / RS485
Certifications:UL9540, UL9540A, UL1973, & UN38.3

Inverter Downloads

SKU#:K0241, K0242, K0243, K0244, K0245, K0246, K0247, K0248, K0249, K0250, K0251
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
UL1741 Certificate:DownloadDOWNLOAD
CEC Listing – BigBattery ETHOS + EG4 FlexBOSS21:Go to linkGO TO LINK

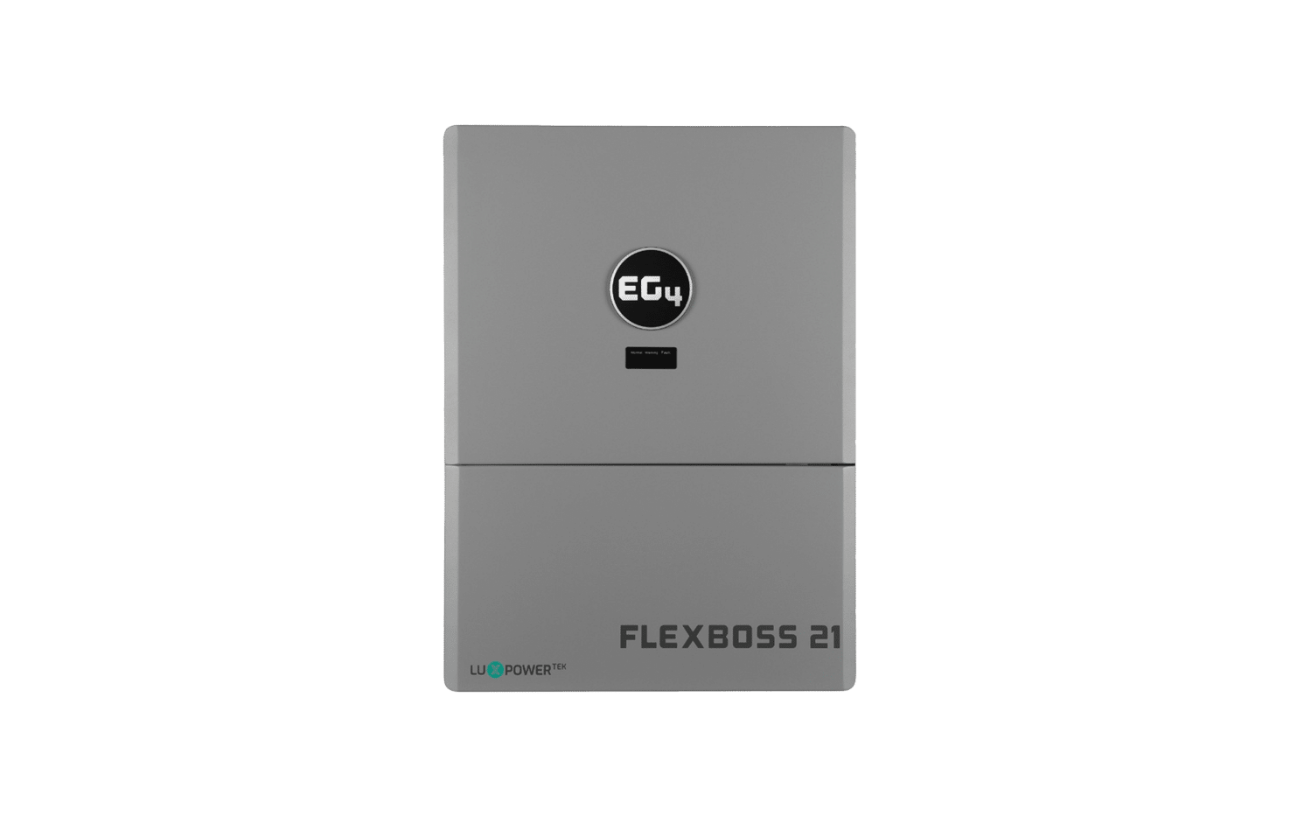

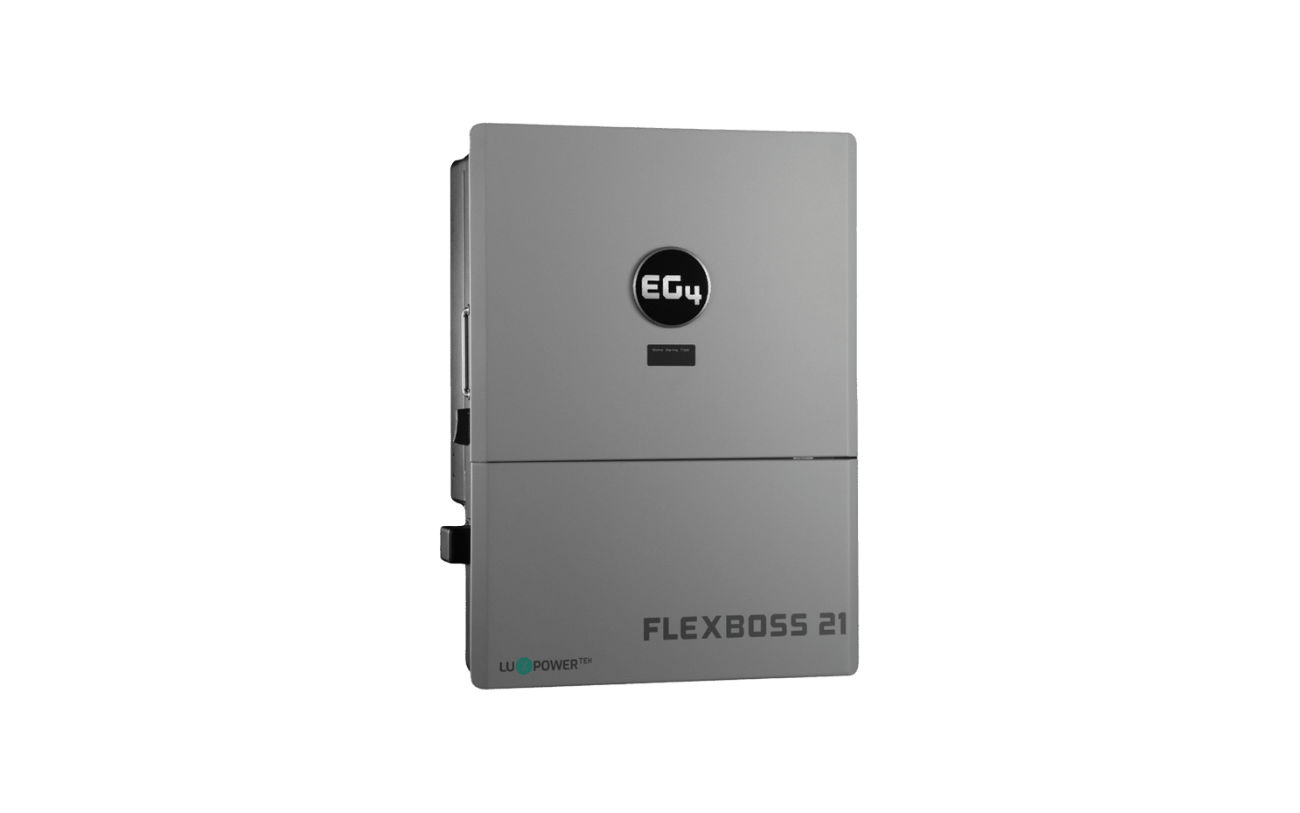

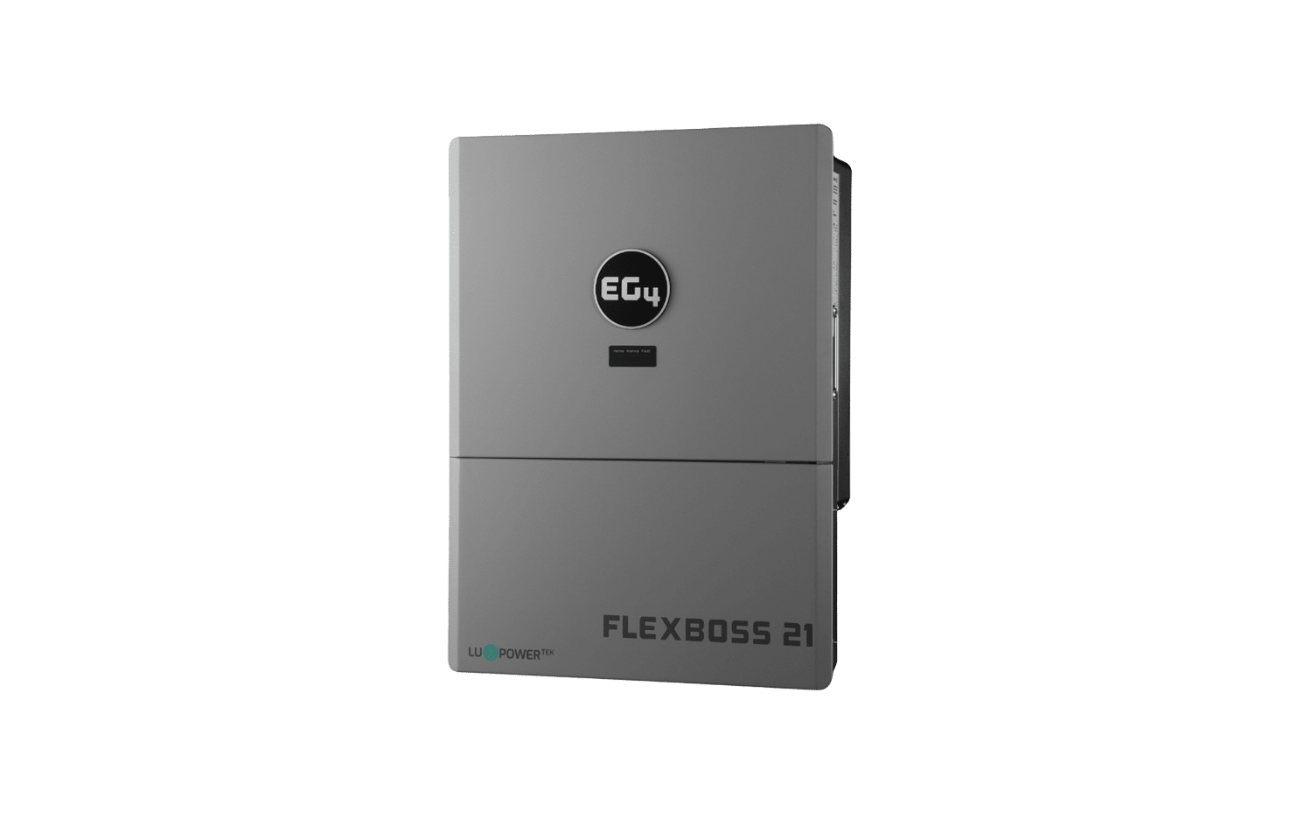

Inverter Specifications

Nominal AC Voltage:120/240VAC | 120/208VAC (L1/L2/N required)
Frequency:60 Hz (Default) | 50 Hz
Max. AC Current:50A @ 240V | 57.7A @ 208V
Max. AC Input Power:12000W
Max. AC Bypass:90A
Operating Voltage Range:180 – 270VAC
Output Voltage:120/240VAC | 120/208VAC (L1/L2/N required)
Max. Output Current:66.7A
Output Frequency:60 Hz (Default) | 50 Hz
Nominal Output Power (without PV):12000W @ 240V | 12000W @ 208V
Nominal Output Power (with PV):16000W @ 240V | 13800kW @ 208V
Power Factor:0.99 (Full Load)
Reactive Power Adjustment Range:-0.8 – 0.8 Leading Adjustable
Total Harmonic Distortion:<5% (Full Load)
Transfer Time:20ms (Default) | 10ms (Configurable) | 20ms (Parallel)
Rated Output Current:50A @ 240V | 57.7A @ 208V
Nominal Output Voltage:120/240VAC | 120/208VAC
Rated Output Power:12000W @ 240VAC | 12000W @ 208VAC
Peak Power:24000W (0.5 sec) | 18000W (1 sec)
15000W (6 min) | 13200W (12 min)
Operating Frequency:60 Hz (Default) | 50 Hz
Total Harmonic Distortion Voltage:<5%
Transfer Time:20ms (Default) | 10ms (Configurable) | 20ms (Parallel)
No. of MPPTs:3
Inputs per MPPT:2 (MPPT 1) | 2 (MPPT 2) | 1 (MPPT 3)
Max. Usable Input Current:26A (MPPT 1) | 26A (MPPT 2) | 15A (MPPT 3)
Max. Short Circuit Input Current:31A (MPPT 1) | 31A (MPPT 2) | 19A (MPPT 3)
DC Input Voltage Range:100 – 600VDC
Unit Start-Up Voltage:100VDC
MPPT Operating Voltage Range:120 – 440VDC
Nominal MPPT Voltage:360VDC
Max. Utilized PV Array Power:21000W
Max. Recommended PV Input:25000W
Max. Efficiency:97% (PV to Grid) | 94.5% (PV to Battery) | 94% (Battery to Grid)
Idle Consumption:<65W
Nominal Voltage:48VDC
Voltage Range:40 – 60VDC
Max. Charge / Discharge Power:12000W
Recommended Battery Capacity per Inverter:>300Ah
Operating / Storage Temperature Range:-13ºF – 140ºF (-25ºC – 60ºC)
Operating Altitude:<6,561 ft (2000 m)
Relative Humidity:0 – 100%
Typical Noise Emission:<50dB @ 3 ft
Design Topology:High-Frequency / Transformerless
Protection Rating:IP65 / NEMA 4X
Communications:RS485 / CANBus / WiFi
Max. Parallel Connections:16
Weight:88 lbs (40 kg)
Depth:11.3 in (287 mm)
Width:22.3 in (567 mm)
Height:30.5 in (775 mm)

Related products

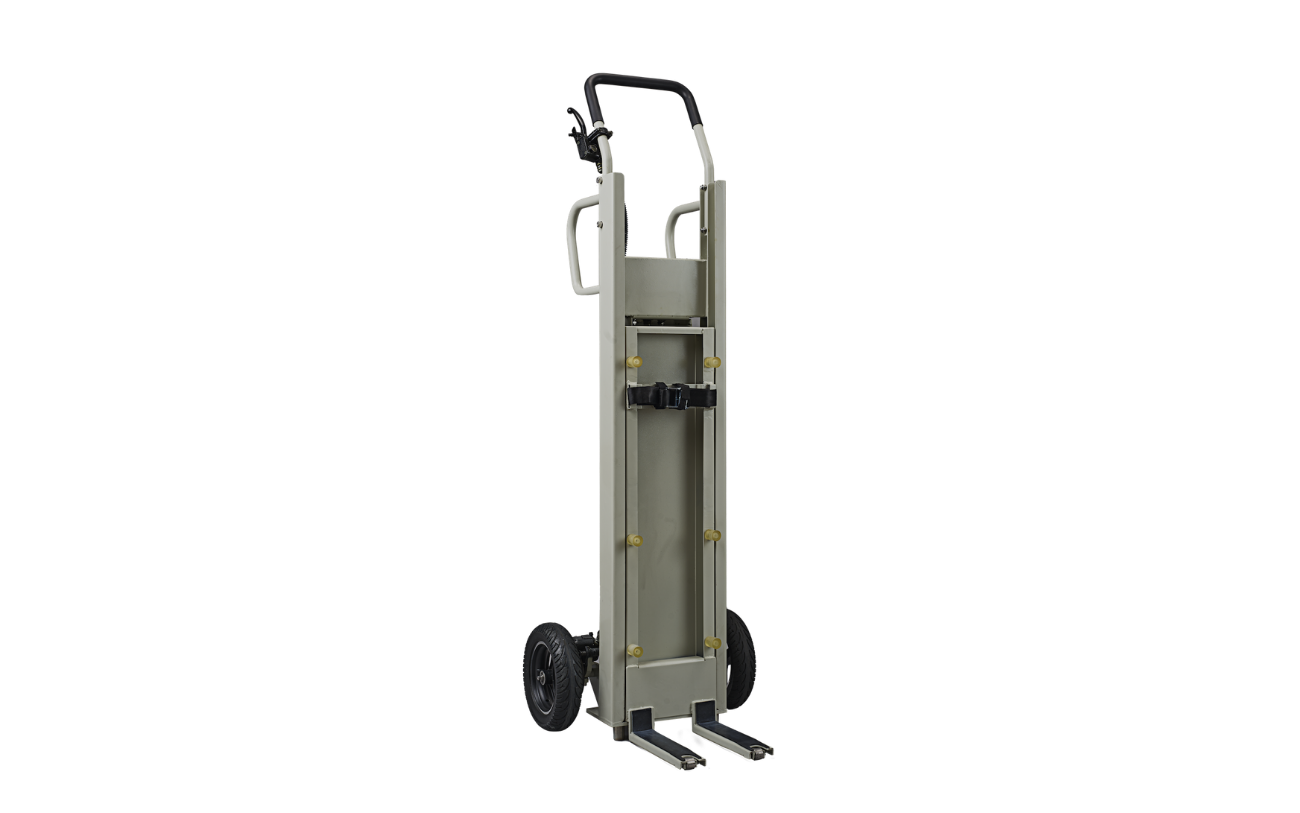

EG4 PowerLift Pro
