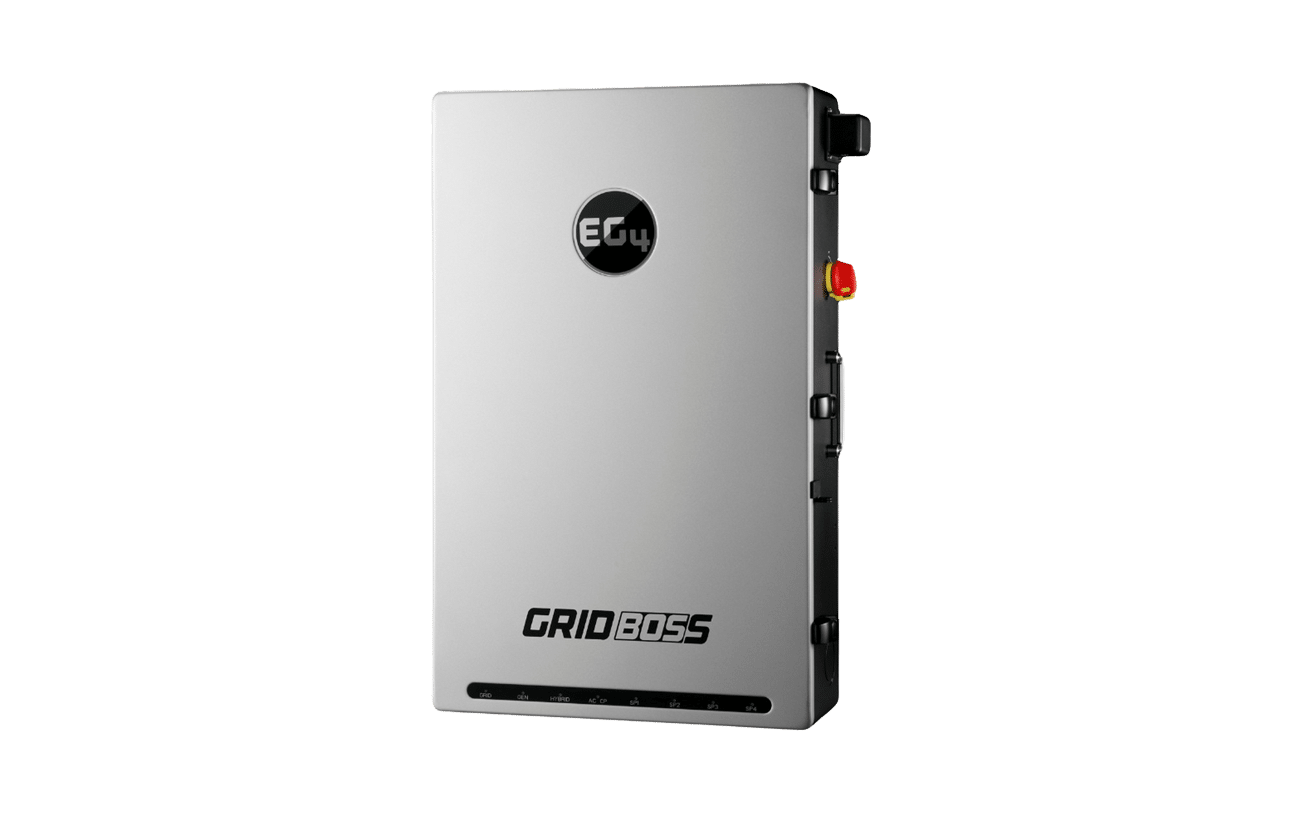

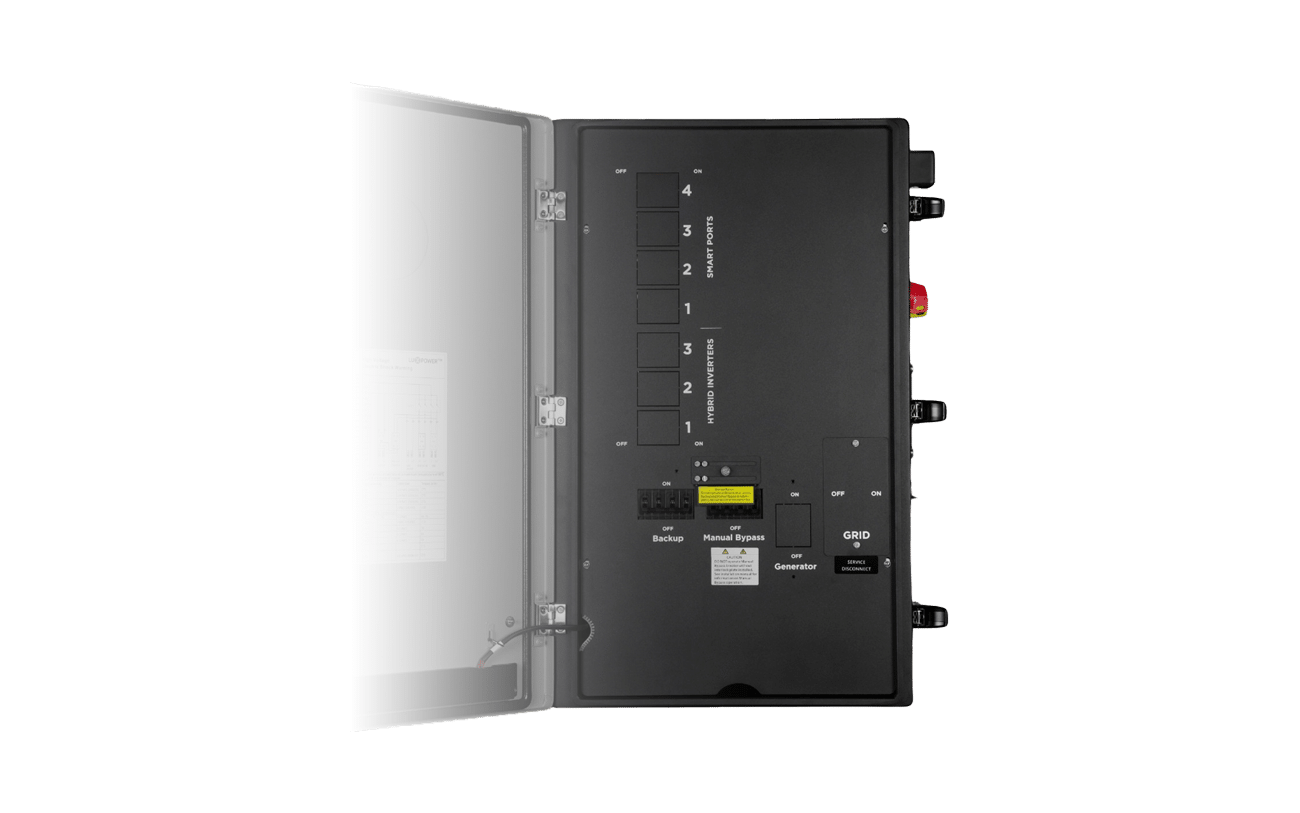

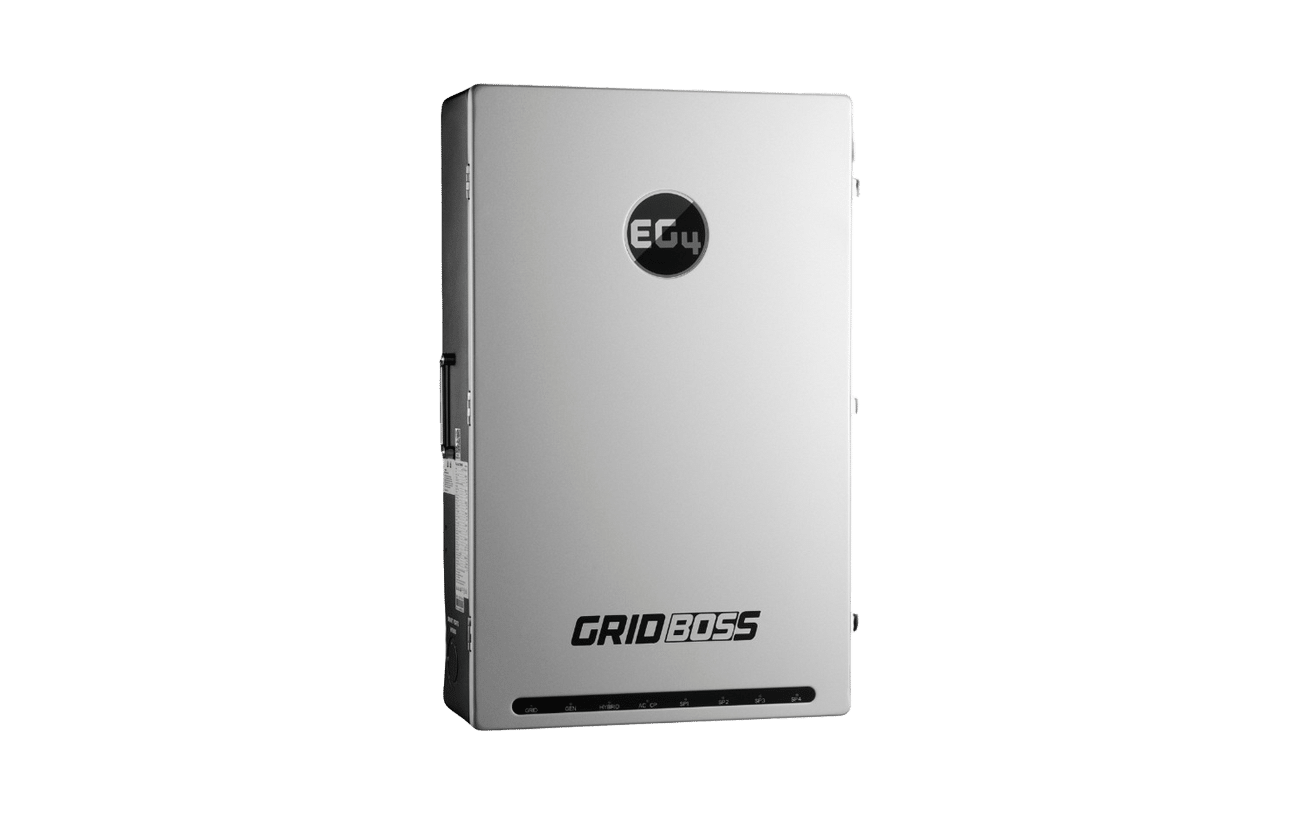

EG4 GridBOSS 200A MID
Original price was: $2,399.95.$1,798.11Current price is: $1,798.11.
Available on backorder
See More On YouTube
Inverter Downloads
SKU#:INV033
Spec Sheet:
DOWNLOAD
DOWNLOADUser Manual:DOWNLOAD
DOWNLOADSystem Wiring Diagrams:DOWNLOAD
DOWNLOADCEC Listing- EG4 GridBOSS 200A MID:
GO TO LINK
GO TO LINKInverter Specifications
Nominal Voltage:120V AC / 240V AC
Frequency:60 Hz
Max. Continuous Current:200A
Service Entrance Rating:200A
Nominal Voltage:120V AC / 240V AC
Frequency:60 Hz
Max. Continuous Current:125A
Nominal Voltage:120V AC / 240V AC
Frequency:60 Hz
Max. Continuous Current:200A
Number of Ports:3
Nominal Voltage:120V AC / 240V AC
Frequency:60 Hz
Max. Continuous Current (per port):70A
Supported Inverters:EG4 12kPV, EG4 18kPV, & EG4 FlexBOSS21
Number of Ports:4
Nominal Voltage:120V AC / 240V AC
Frequency:60 Hz
Max. Continuous Current (per port):125A / 80A / 60A / 60A
Internal Busbar Rating:350A
Internal Fuse Rating:315A
Operating Temperature Range:-40ºF – 140ºF (-40ºC – 60ºC)
Relative Humidity:0 – 100%
Altitude:<6,561 ft (2000 m)
Protection Rating:IP14 / NEMA 3R
Communications:RS485 / CANBus / WiFi
Weight:55 lbs (25 kg)
Depth:7 in (178 mm)
Width:19.7 in (501 mm)
Height:31.5 in (800 mm)
10-Year EG4 Manufacturer Warranty
