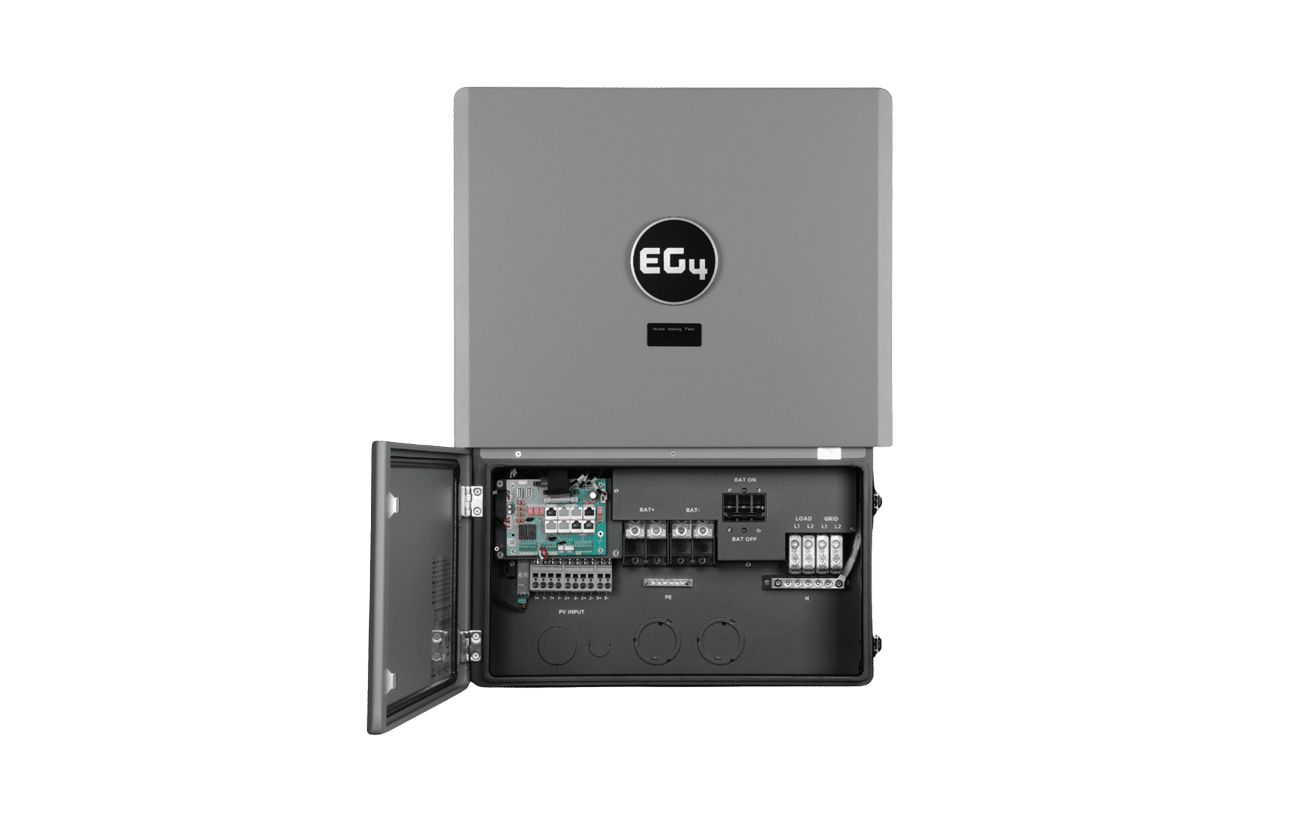

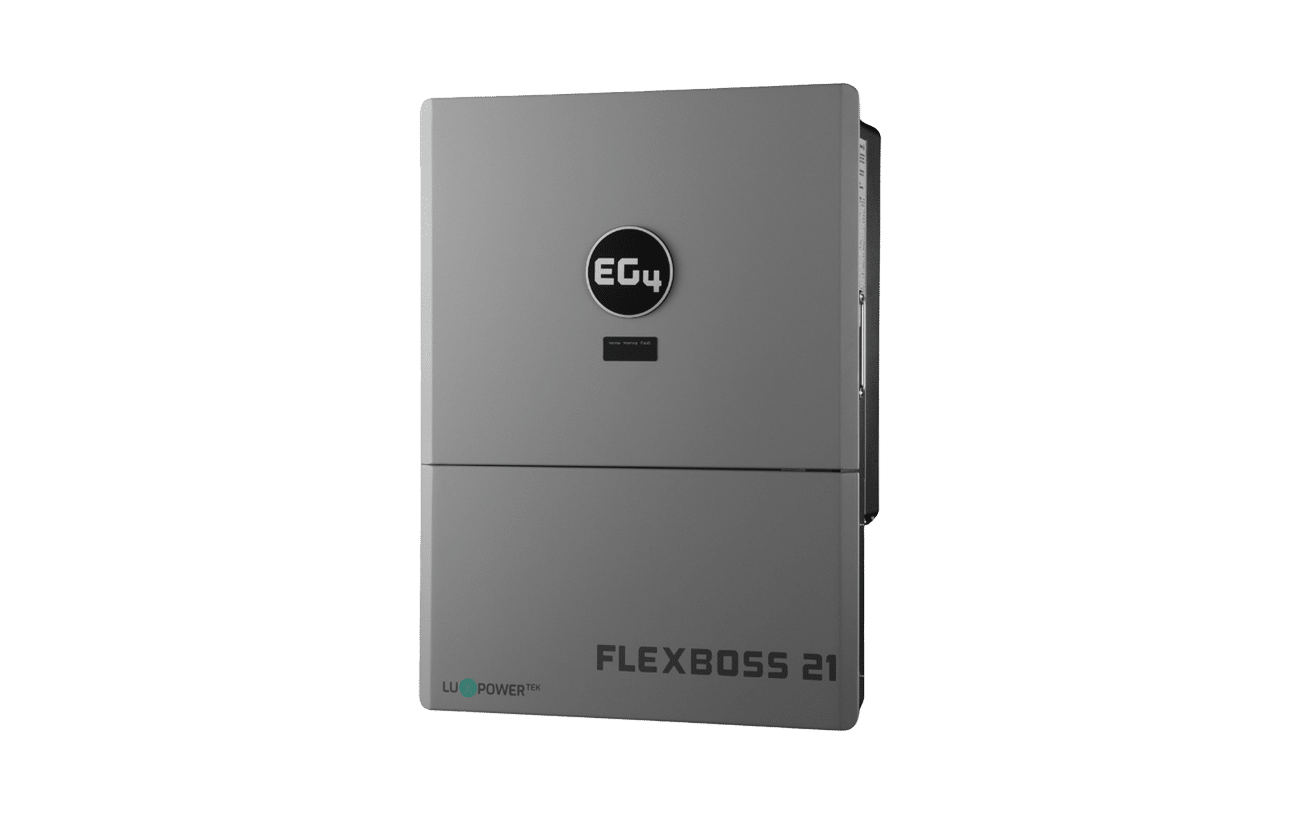

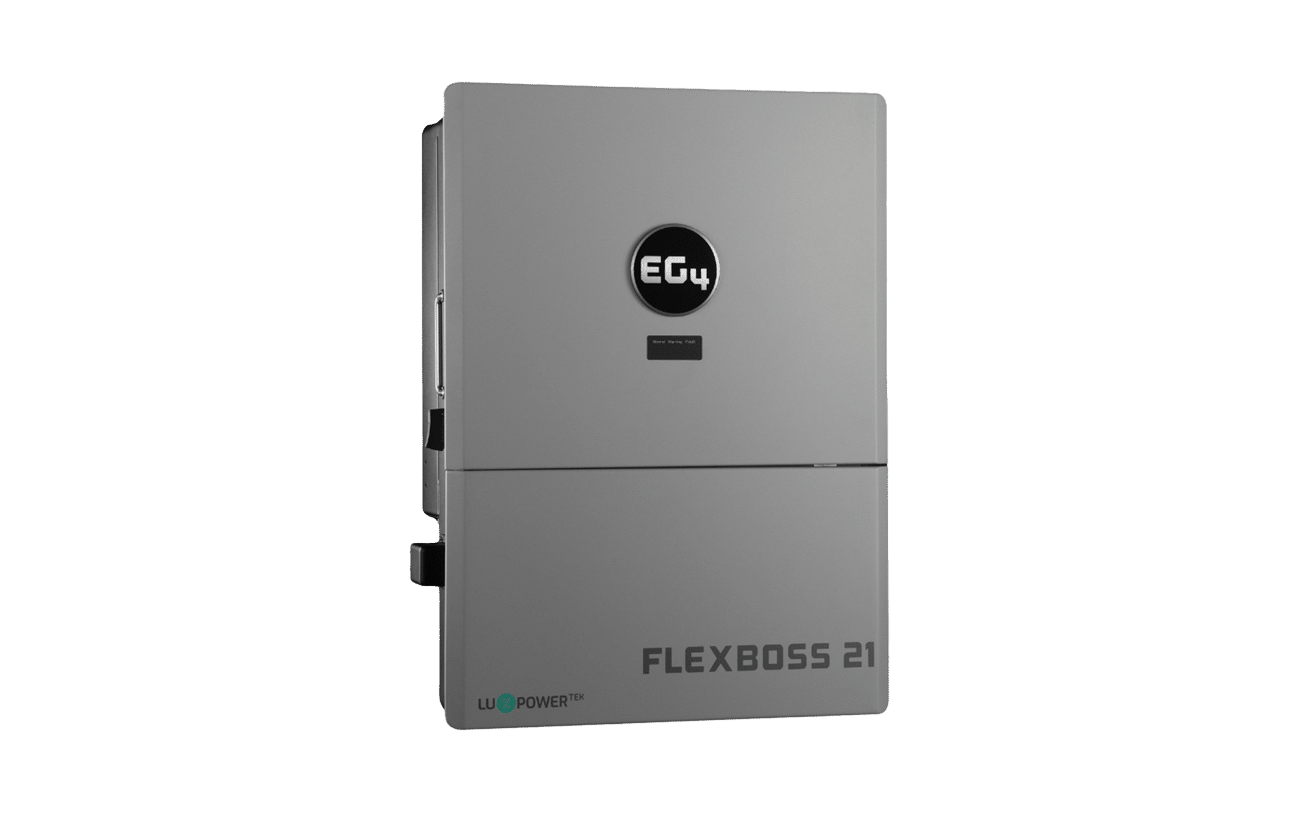

EG4 FlexBOSS21 Hybrid Solar Inverter | 21kW PV / 16kW AC | Split-Phase | 4-MPPT | Scalable | Remote Wi-Fi Monitoring
Original price was: $5,059.00.$4,199.00Current price is: $4,199.00.
See More On YouTube
Inverter Downloads
SKU#:INV027
Spec Sheet:
DOWNLOAD
DOWNLOADUser Manual:DOWNLOAD
DOWNLOADUL1741 Certificate:DOWNLOAD
DOWNLOADCEC Listing- EG4 FlexBoss21:
GO TO LINK
GO TO LINKInverter Specifications
Nominal AC Voltage:120/240VAC | 120/208VAC (L1/L2/N required)
Frequency:60 Hz (Default) | 50 Hz
Max. AC Current:50A @ 240V | 57.7A @ 208V
Max. AC Input Power:12000W
Max. AC Bypass:90A
Operating Voltage Range:180 – 270VAC
Output Voltage:120/240VAC | 120/208VAC (L1/L2/N required)
Max. Output Current:66.7A
Output Frequency:60 Hz (Default) | 50 Hz
Nominal Output Power (without PV):12000W @ 240V | 12000W @ 208V
Nominal Output Power (with PV):16000W @ 240V | 13800kW @ 208V
Power Factor:0.99 (Full Load)
Reactive Power Adjustment Range:-0.8 – 0.8 Leading Adjustable
Total Harmonic Distortion:<5% (Full Load)
Transfer Time:20ms (Default) | 10ms (Configurable) | 20ms (Parallel)
Rated Output Current:50A @ 240V | 57.7A @ 208V
Nominal Output Voltage:120/240VAC | 120/208VAC
Rated Output Power:12000W @ 240VAC | 12000W @ 208VAC
Peak Power:24000W (0.5 sec) | 18000W (1 sec)
15000W (6 min) | 13200W (12 min)
15000W (6 min) | 13200W (12 min)
Operating Frequency:60 Hz (Default) | 50 Hz
Total Harmonic Distortion Voltage:<5%
Transfer Time:20ms (Default) | 10ms (Configurable) | 20ms (Parallel)
No. of MPPTs:3
Inputs per MPPT:2 (MPPT 1) | 2 (MPPT 2) | 1 (MPPT 3)
Max. Usable Input Current:26A (MPPT 1) | 26A (MPPT 2) | 15A (MPPT 3)
Max. Short Circuit Input Current:31A (MPPT 1) | 31A (MPPT 2) | 19A (MPPT 3)
DC Input Voltage Range:100 – 600VDC
Unit Start-Up Voltage:100VDC
MPPT Operating Voltage Range:120 – 440VDC
Nominal MPPT Voltage:360VDC
Max. Utilized PV Array Power:21000W
Max. Recommended PV Input:25000W
Max. Efficiency:97% (PV to Grid) | 94.5% (PV to Battery) | 94% (Battery to Grid)
Idle Consumption:<65W
Nominal Voltage:48VDC
Voltage Range:40 – 60VDC
Max. Charge / Discharge Power:12000W
Recommended Battery Capacity per Inverter:>300Ah
Operating / Storage Temperature Range:-13ºF – 140ºF (-25ºC – 60ºC)
Operating Altitude:<6,561 ft (2000 m)
Relative Humidity:0 – 100%
Typical Noise Emission:<50dB @ 3 ft
Design Topology:High-Frequency / Transformerless
Protection Rating:IP65 / NEMA 4X
Communications:RS485 / CANBus / WiFi
Max. Parallel Connections:16
Weight:88 lbs (40 kg)
Depth:11.3 in (287 mm)
Width:22.3 in (567 mm)
Height:30.5 in (775 mm)
Compare Inverter
10-Year EG4 Manufacturer Warranty
