EG4 Wallmount 280Ah Indoor Battery & 18kPV Hybrid Inverter (ESS) | 14.3–42.9kWh | UL9540 | Grid-Tied Home Solar System (18kW PV)

$23,210.00

SKU# K0112-V

The EG4 energy storage kit combines the 12K Hybrid Inverter and 14.3kWh WallMount Battery for a powerful grid-tied or off-grid solution. Delivering 12,000W output and 18,000W PV input, it offers reliable backup power, efficient solar integration, and cost-saving energy management. With LiFePO₄ storage, 8,000+ cycles, self-heating, emergency stop, and RS485/CANBus support, the WallMount ensures safe, long-lasting performance. Dual MPPTs, 20ms UPS transfer, smart load control, and remote monitoring make this kit ideal for homes and small businesses seeking dependable energy independence.

Choose Your Inverter Option*

EG4 12kPV EG4 18kPV EG4 FlexBOSS18 EG4 FlexBOSS21 None

Choose Your Battery Option*

BigBattery ETHOS EG4 280Ah All Weather EG4 280Ah Indoor None

Choose Your Inverter Option*

EG4 6000XP EG4 12000XP VICTRON MP II 3000 VICTRON MP II 5000

Choose Your Battery Option*

BigBattery NEXUS BigBattery ETHOS BigBattery HUSKY2 INV EG4 280Ah All Weather EG4 280Ah Indoor

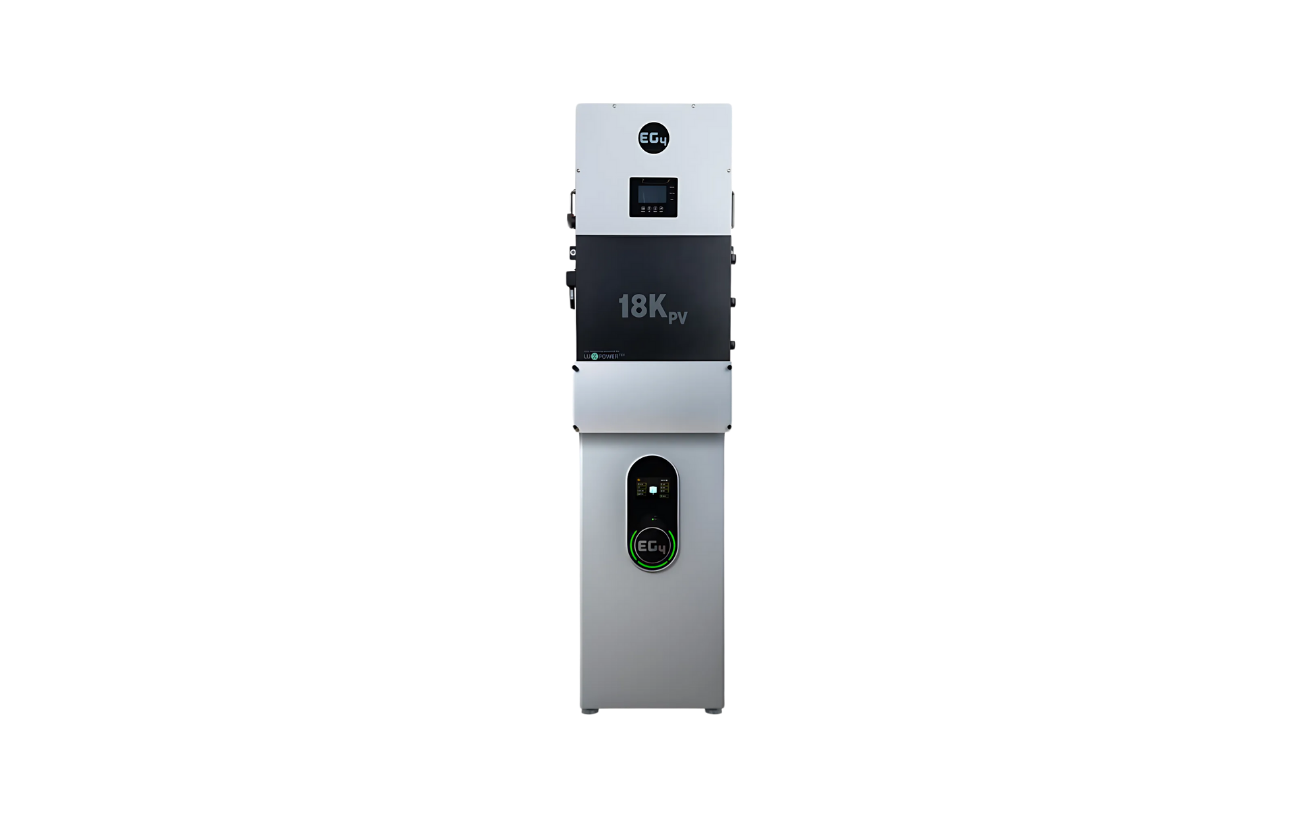

Simple System Expansion EG4 18kpv + Indoor ESS

EG4 18kpv + Indoor ESS Power that never sleeps at night

UL Certified

Indoor Features

GridBoss

.

See More On YouTube

https://www.youtube.com/watch?v=8ToUZ88Jzz4&pp=0gcJCbIJAYcqIYzv





Battery Downloads

SKU#:K0112
Spec Sheet:DownloadDOWNLOAD
Quick Start Guide:DownloadDOWNLOAD
UL9540A Certificate:DownloadDOWNLOAD
UL1973 Certificate:DownloadDOWNLOAD
Connection Guide:DownloadDOWNLOAD
Monitoring & Settings Guide:DownloadDOWNLOAD
Maintenance Guide:DownloadDOWNLOAD
Firmware Update Guide:DownloadDOWNLOAD
CEC Listing- EG4 WallMount Indoor:Go to linkGO TO LINK

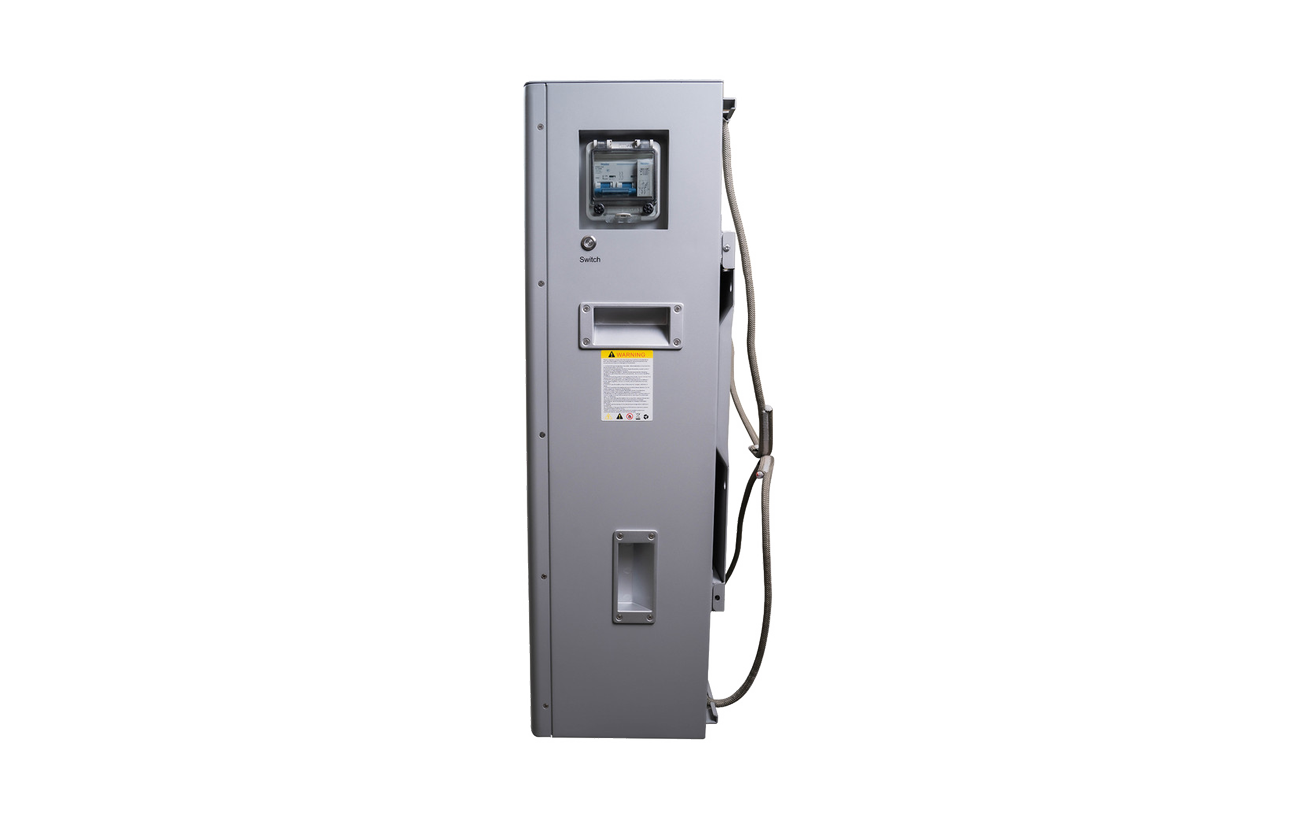

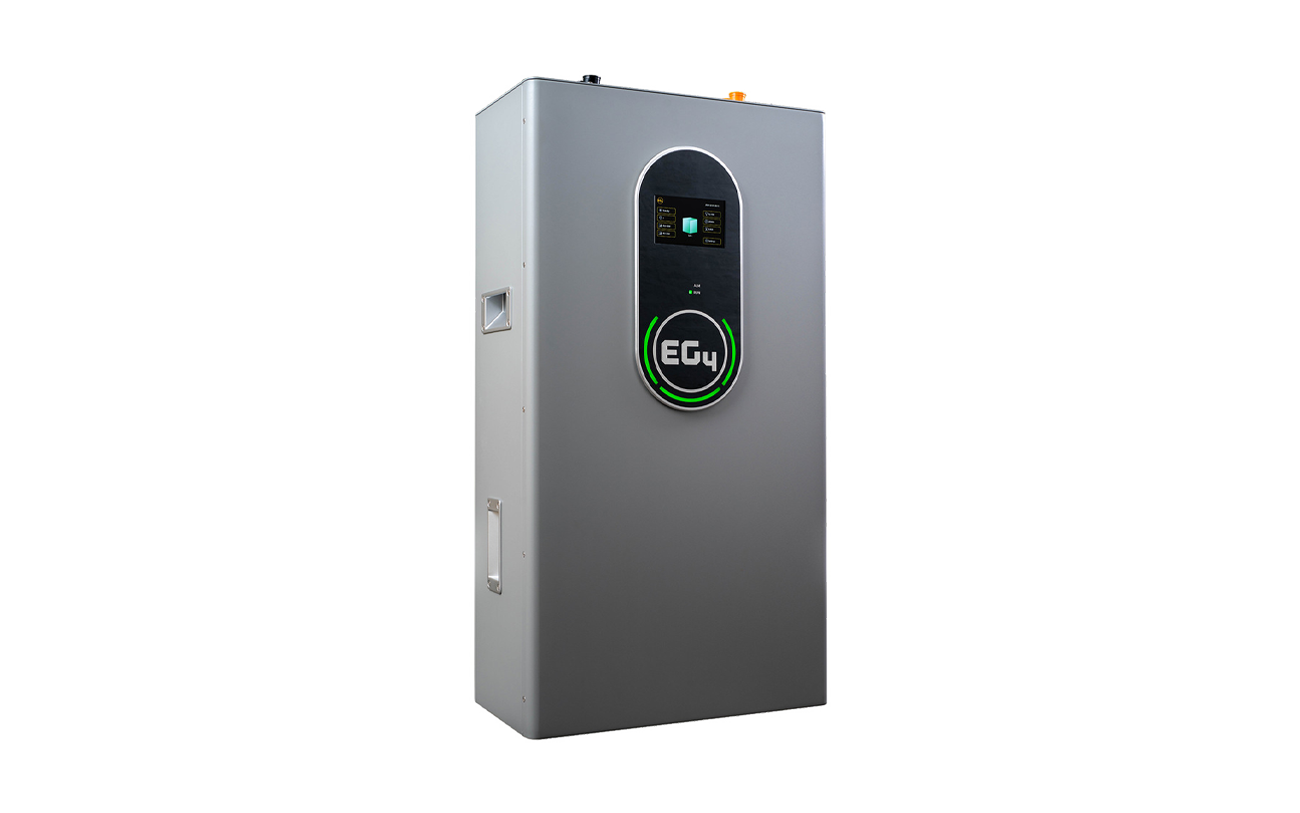

Battery Specifications

System Voltage:48V
Nominal Voltage:51.2V
Chemistry:LiFePO4
kWh Capacity:14.3kWh
Ah Capacity:280Ah
BMS Charging Voltage (Bulk/Absorb):56V (±0.8V)
Rec. Charging Voltage (Bulk/Absorb):56.2V (±0.2V)
Rec. Float Setting:54V (±0.2V)
Rec. SoC Cutoff Setting:20%
Max. Continuous Charge/Discharge Current:200A
Rec. Charge Current:60 – 160A
Rec. Discharge Current:160A
Max Continuous Discharge Rate:10240W
Voltage:56V
Power Consumption:224W
Internal Temperature Cutoffs:≤32ºF (On) | ≥41ºF (Off)
Charging Temperature Range:32ºF – 113ºF (0ºC – 45ºC)
Discharging Temperature Range:-4ºF – 122ºF (-20ºC – 50ºC)
Storage Temperature Range:-4ºF – 122ºF (-20ºC – 50ºC)
Protection Rating:IP20

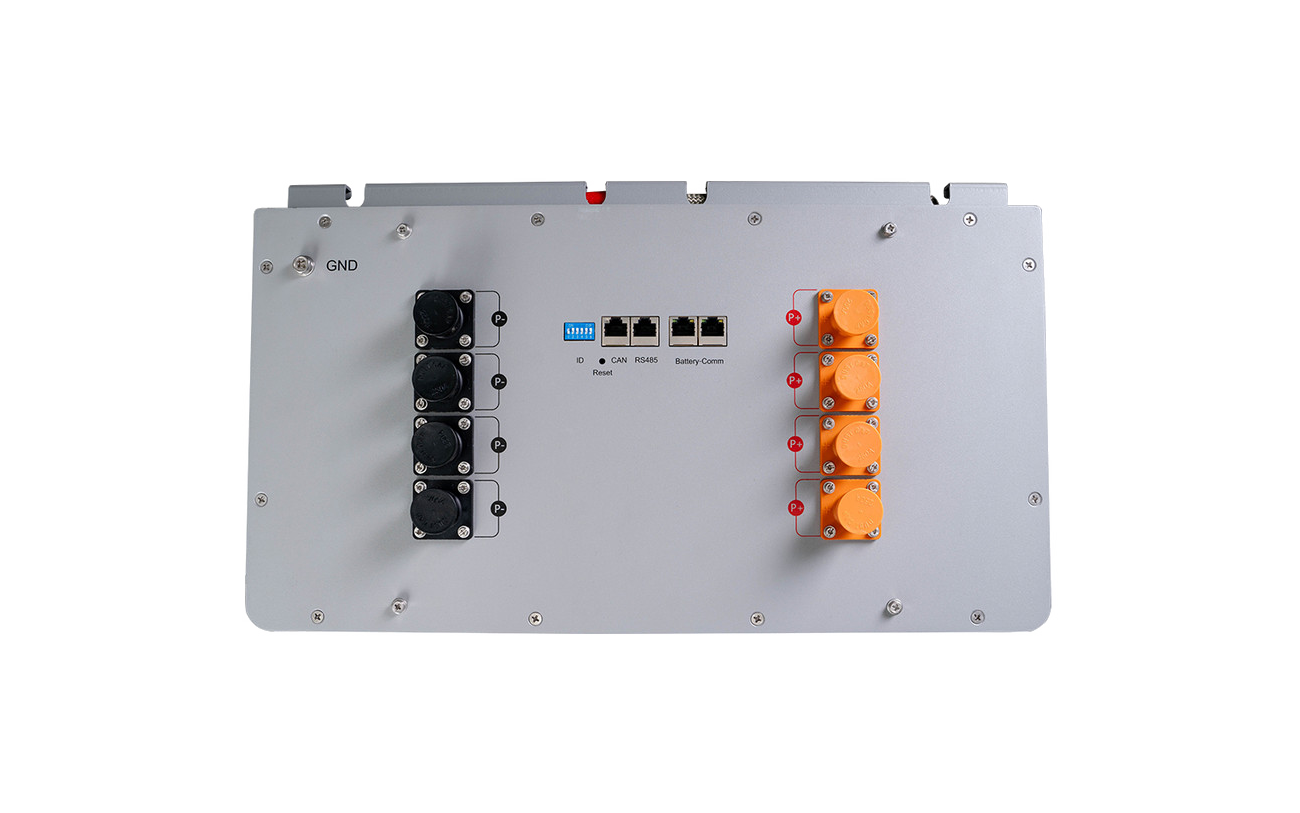

Communications:RS485 | CANBus
Weight:282.2 lbs (128 kg)
Depth:9.6 in (245 mm)
Width:18.1 in (460 mm)
Height:36.4 in (925 mm)

Inverter Downloads

SKU#:K0112
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
UL 1741 Certificate:DownloadDOWNLOAD
UL 1741 CRD PCS Test Verification Of Conformity Security:DownloadDOWNLOAD
Rapid Shut Down Wiring Guide:DownloadDOWNLOAD
Whitepapers, Firmware, & Wiring Diagrams:Go to linkGO TO LINK
CEC Listing – EG4 18kPv:Go to linkGO TO LINK

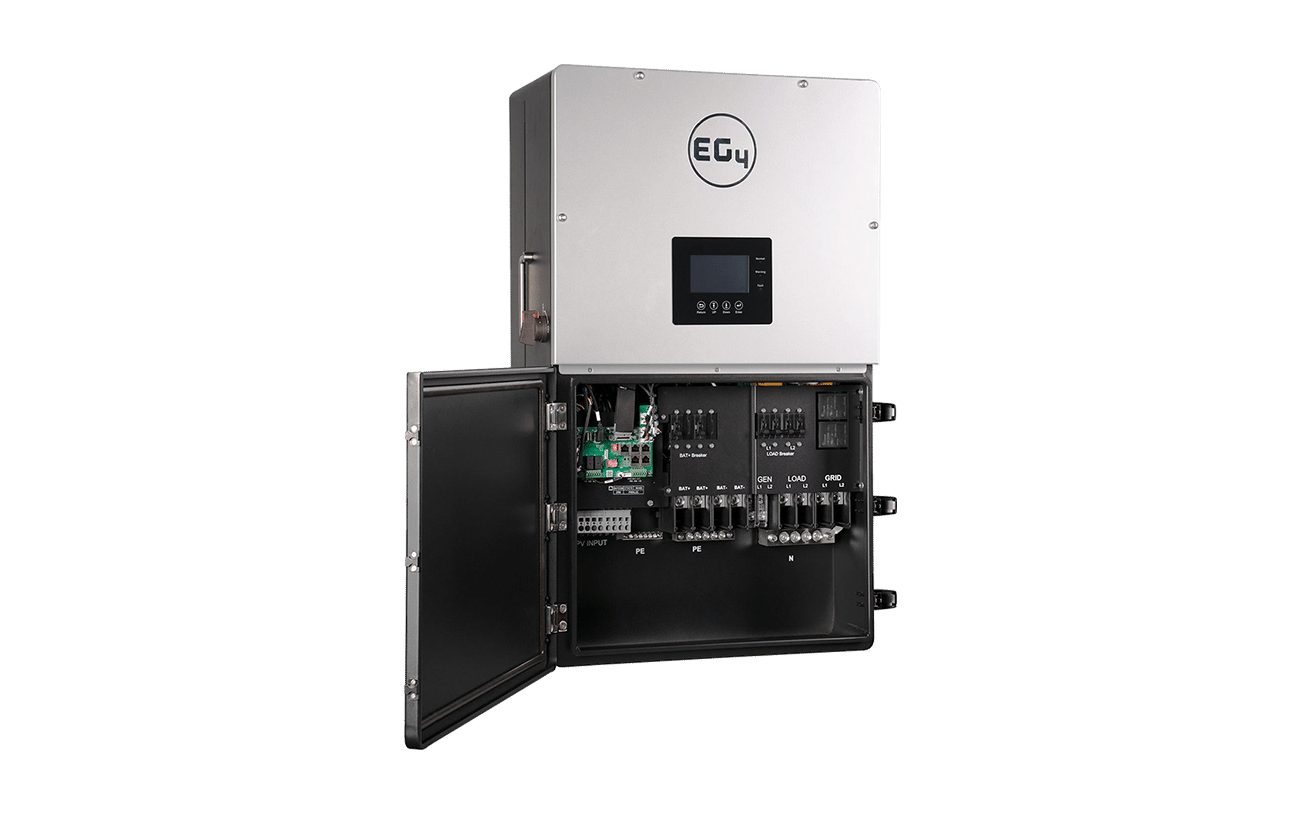

Inverter Specifications

AC Voltage:120V AC / 240V AC
AC Frequency:50 Hz / 60 Hz
Nominal Voltage:51.2V
Max. Continuous AC Current:50A @ 240V AC
Max. AC Input Power:12000W
Max. AC Bypass:200A
Operating Voltage Range:180 – 270V AC
Output Voltage:120V AC / 240V AC
Max. Continuous Output Current:50A
Output Power:12000W
BMS Cutoff Range:42 – 47V
Surge Capacity (with PV):14700W (10 min) / 15500W (5 min)
Surge Capacity (without PV):13500W (10 min)
Max. Continuous Line Wattage:6000W
Power Factor:0.99 (Full Load)
Reactive Power Adjustment Range:0.8 ~ 0.8 Leading Adjustable
Total Harmonic Distortion:<5% (Full Load)
Transfer Time:10 – 20 ms (Single) / 20 ms (Parallel)
Max. Continuous Output Current:50A
AC Bypass (Generator):90A
Output Voltage:120V AC / 240V AC
Output Power:12000W
Max. Continuous Line Wattage:8000W (per 120V)
Operating Voltage Range:180 – 270V AC
Output Frequency:50 Hz / 60 Hz
Max. Output Power (with PV):14700W (10 min) / 15500W (5 min)
Max. Output Power (without PV):13500W (10 min)
Total Harmonic Distortion Voltage:<5%
Switching Time:10 ms
No. of MPPTs:3
Inputs per MPPT:2 (MPPT 1) / 1 (MPPT 2 & 3)
Max. Input Current:25A (MPPT 1) / 15A (MPPT 2 & 3)
Max. Short Circuit Input Current:31A (MPPT 1) / 19A (MPPT 2 & 3)
DC Input Voltage Range:100 – 600V DC
Start Up Voltage:100V DC
MPPT Operating Voltage Range:140 – 500V DC
MPPT Voltage:360V DC
Max. PV Array Power:18000W
Max. Efficiency:94 – 99.9%
Idle Consumption:~70W (Normal) / ~18W (Standby Mode)
Nominal Voltage:48V DC
Voltage Range:40 – 60V DC
Max. Charge / Discharge Current:250A
Recc. Battery Capacity per Inverter:>200 Ah
Operating / Storage Temperature Range:-13ºF – 140ºF (-25ºC – 60ºC)
Altitude:<6,561 ft (2000 m)
Relative Humidity:0 – 100%
Typical Noise Emission:68 dB @ 3 ft
Protection Rating:IP65 / NEMA 4X
Communications:RS485 / CANBus / WiFi
Max. Parallel Connections:10
Weight:121 lbs (55 kg)
Depth:11.2 in (285 mm)
Width:20.5 in (520 mm)
Height:34.3 in (871 mm)

Compare Battery & Inverter



EG4 18kPV Inverter: 10-Year EG4 Manufacturer Warranty

EG4 Indoor Battery: 10-Year EG4 Manufacturer Warranty

Related products

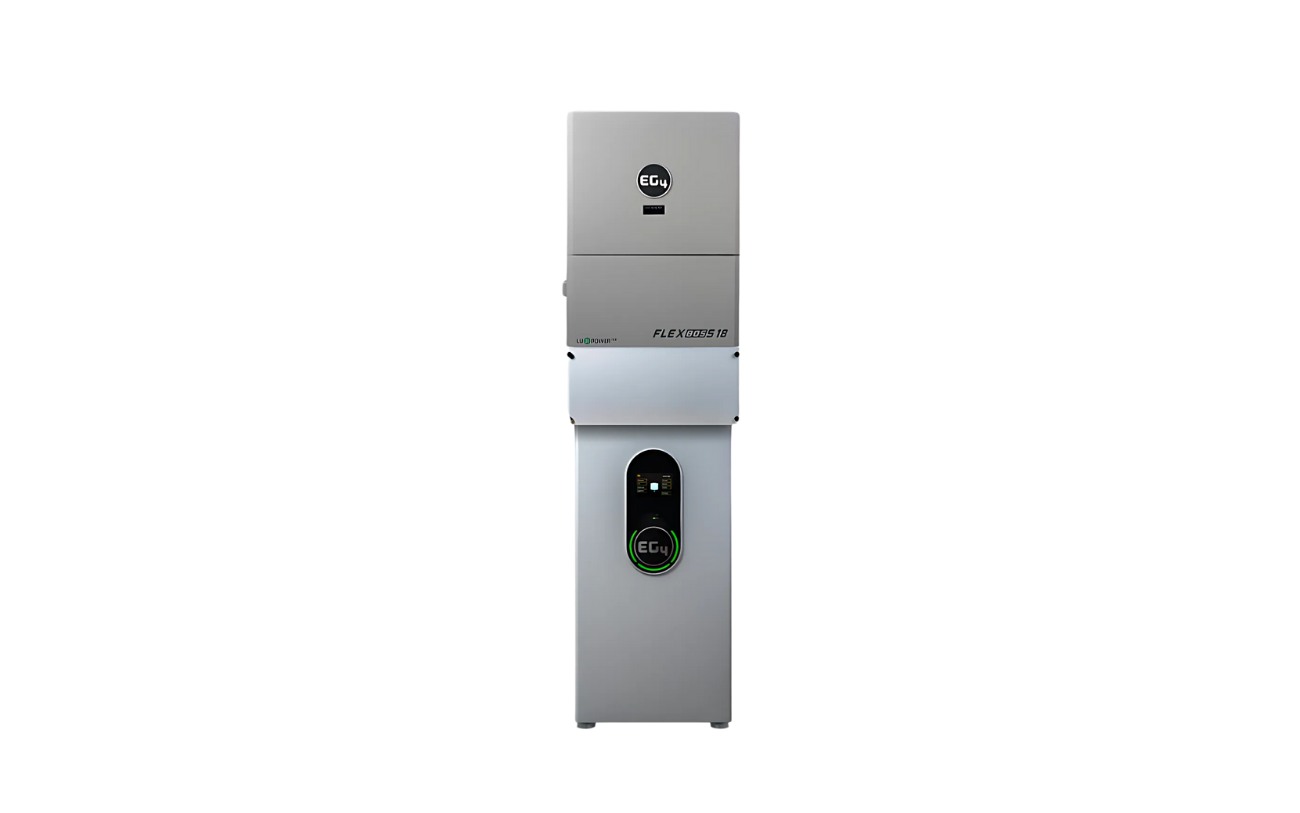

EG4 Wallmount 280Ah Indoor Battery & FlexBoss18 Hybrid Inverter (ESS) | 14.3-57.2kWh | UL9540 | Grid-Tied Home Solar System (18kW-36kW PV)
