Features
- 5120W Output
- Adjustable Charge Parameters
- Power Quality Protection
- Direct Generator Compatibility
- Dry Contacts
- Closed Loop Communications
- Built-In 125A Breaker
- Integration With EG4 Components
- Cables & Mounting Bracket Included

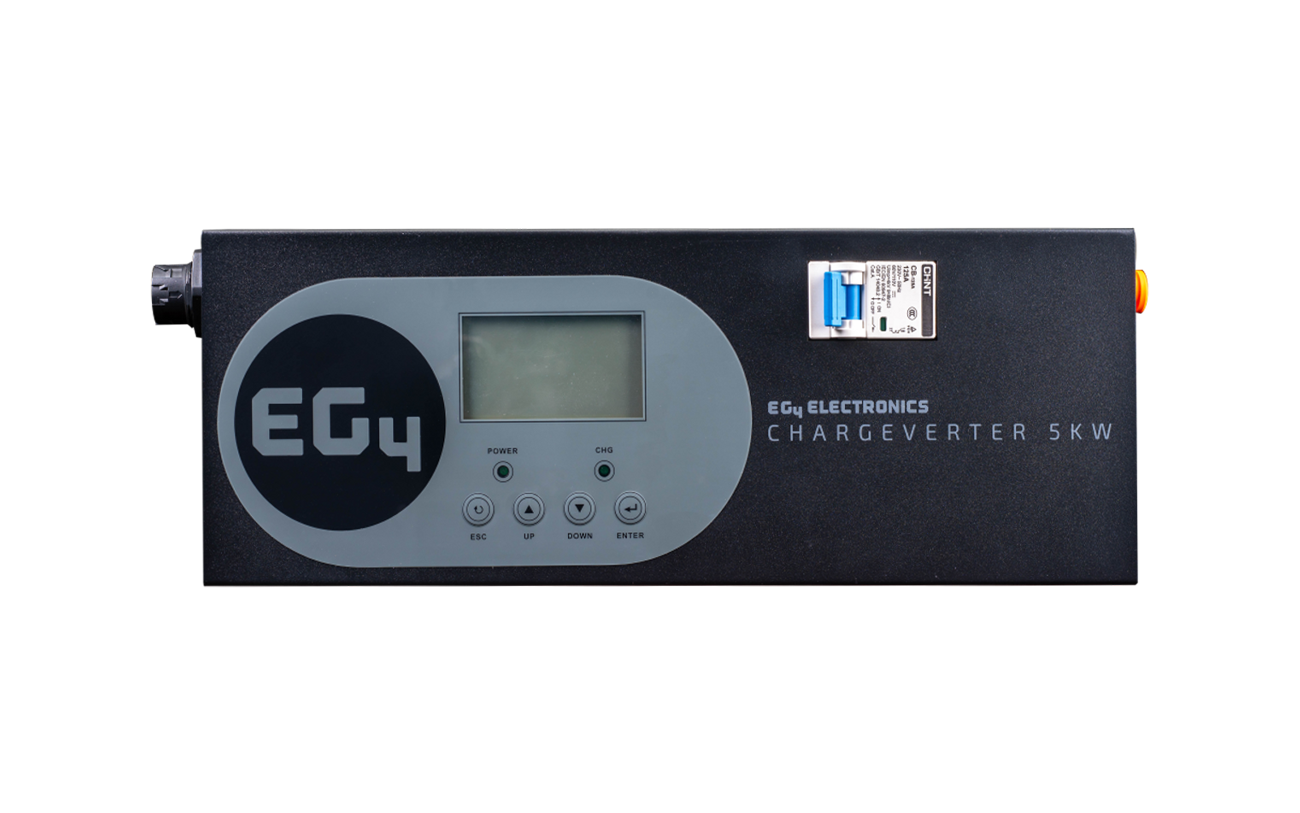

EG4 Chargeverter GC
Original price was: $847.00.$635.99Current price is: $635.99.
DOWNLOADChargeverter Specifications
AC Input Voltage Range:90 – 264VAC
AC Frequency:50 – 60 Hz
Max. Input Current:26A @ 240VAC | 28A @ 120VAC
Idle Consumption:~10W
Nominal Battery Voltage:48VDC
Default Charge Voltage:54VDC
Charge Voltage Range:43 – 57VDC
Charge Current Range:0 – 100A @ 240VAC | 0 – 50A @ 208VAC | 0 – 45A @ 120VAC
Max. Output:5120W @ 240VAC | 3050W @ 120VAC
Max. Efficiency:94% @ 240VAC | 92% @ 120VAC
Operating Temperature Range:14ºF – 131ºF (-10ºC – 55ºC)
Storage Temperature Range:5ºF – 140ºF (-15ºC – 60ºC)
Operating Altitude:0 ~ 4291 ft (1500 m)
Relative Humidity (Non-Condensing):5 – 95%
Protection Rating:IP21
Interface Connector:NO, NC, & C (RJ11 Jack)
Communication Port:RS485 (RJ45 Jack)
Weight:13 lbs (5.9 kg)
Depth:4.9 in (124 mm)
Width:13.2 in (335 mm)
Height:5 in (127 mm)
