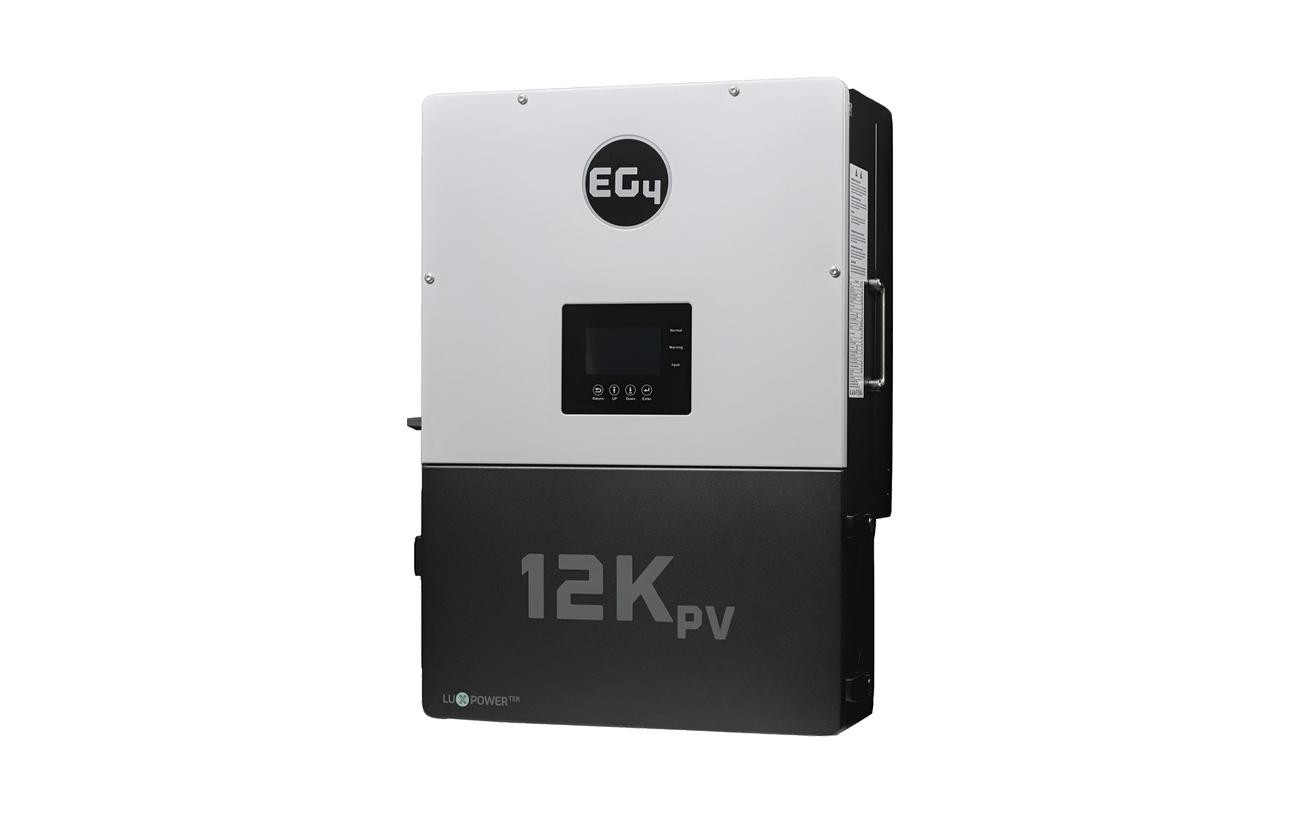

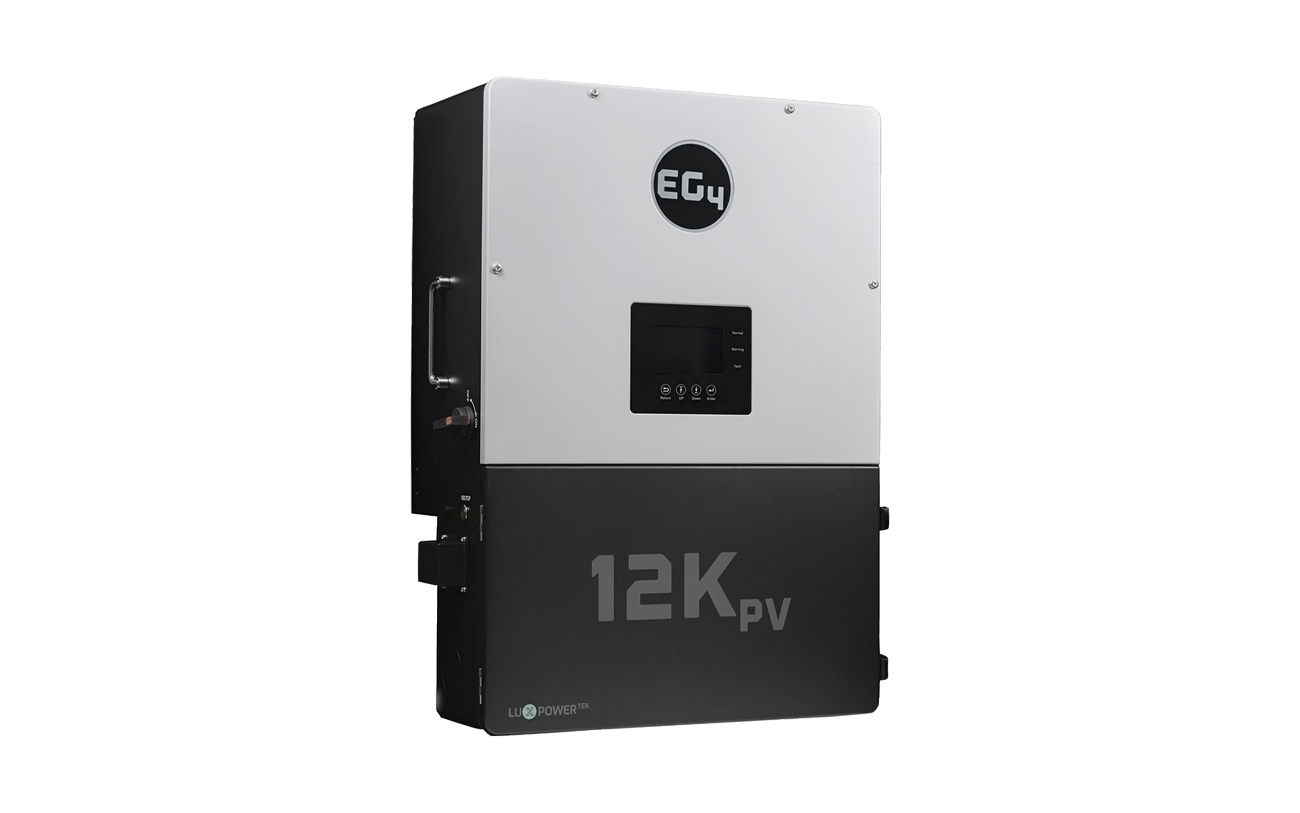

EG4 12kPV All-in-One Hybrid Solar Inverter | 12kW PV / 8kW AC | Split-Phase | 3-MPPT | Scalable | Remote Wi-Fi Monitoring
Original price was: $4,117.00.$3,499.00Current price is: $3,499.00.
SKU# INV028

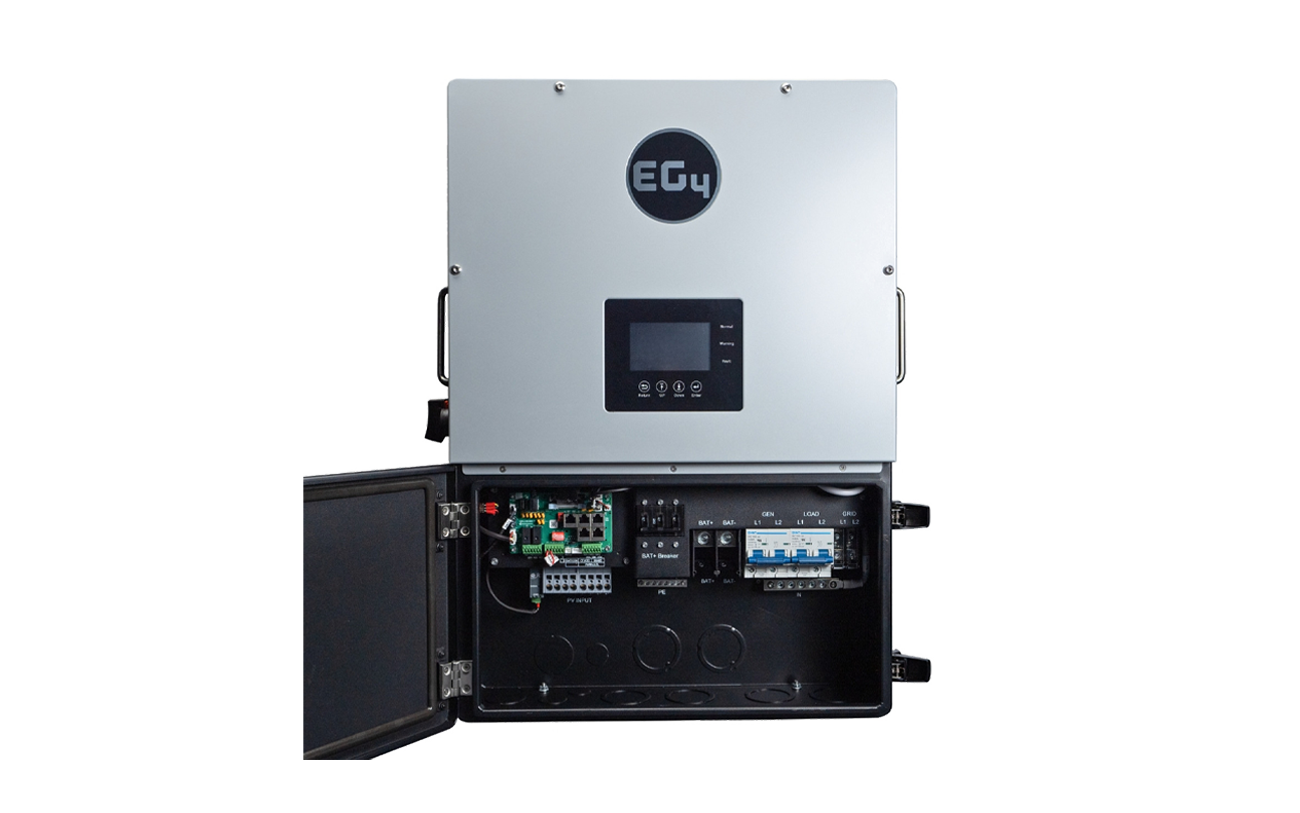

The EG4 8K Hybrid Inverter delivers 8,000W of power with support for up to 12,000W of PV input, making it ideal for both grid-tied and off-grid home energy systems. Featuring dual MPPT inputs, built-in circuit breakers, a 20ms UPS transfer switch, and a transformer-free design, it offers lightweight, energy-efficient performance without sacrificing surge capacity or line balancing. With smart load control, AC coupling, and peak shaving, this inverter reduces energy costs while protecting your home from grid instability and blackouts. An intuitive LCD touchscreen and remote monitoring provide easy control, while plug-and-play installation ensures a seamless setup. Upgrade your solar or off-grid system with the powerful, all-in-one EG4 8K Hybrid Inverter.
See More On YouTube
Inverter Downloads
DOWNLOAD
GO TO LINKInverter Specifications
Nominal AC Voltage:120/240VAC; 120/208VAC (L1/L2/N required)
Frequency:50/60Hz
Max. AC Input Power:8000W
Min. Generator Size:>5000W
Max. Gen | Grid Passthrough Current:80A | 80A
Max. Output Current:33.3A @ 240VAC | 38.5A @ 208VAC
Output Voltage:120/240VAC; 120/208VAC
Nominal Power Output:8000W
Output Frequency:50/60Hz
Power Factor:0.99 @ Full Load
Reactive Power Adjust Range:±0.8
Max Cont. Line Wattage:4000W
Peak Power:0.5 s / 1 s / 1 min / 12 min: 16kW / 12kW / 10kW / 8.8kW
Operating Frequency:50/60Hz
THD (V) @ Full Load:<3%
Transfer Time:Single: 20 ms – Default, 10 ms – Selectable; Parallel: 20 ms
Number of MPPTs:2
Inputs per MPPT:2
Max. Usable Input Current:25/25A; 25A per MPPT | 41.6A in total
Max. Short Circuit Input Current:31/31A
DC Input Voltage Range*:100–600 VDC
Unit Startup Voltage:100 VDC
MPPT Operating Voltage Range**:120–500 VDC
Nominal MPPT Voltage:360 VDC
MPPT Voltage High Protection***:550 VDC
Maximum Utilized Solar Power:12000W
Recommended Maximum Solar Input:15000W
Maximum Efficiency (PV → Grid):97.5%
Maximum Efficiency (Battery → Grid):94%
CEC Weighted Efficiency:96.4%
Maximum Efficiency (PV → Battery):99.9%
Idle Consumption (Standby Mode):<55W
Compatible Battery Types:Lead-Acid / Lithium
Max. Charge/Discharge Current:167A @ 48 VDC
Nominal Voltage:48 VDC
Voltage Range:40–60 VDC (Lithium); 40–60 VDC (Lead-Acid)
Recommended Battery Capacity per Inverter:>200Ah
Max. Units in Parallel:10
Product Dimensions (H×W×D):29.5×20.5×11.2 in (750×520×285 mm)
Unit Weight:110 lbs. (50 kg)
Design Topology:High Frequency – Transformerless
Relative Humidity:0–100%
Operating Altitude:<2000m (<6561 ft)
Operating Ambient Temperature Range:-13°F – 140°F (-25°C – 60°C)
Storage Ambient Temperature Range:-13°F – 140°F (-25°C – 60°C)
Noise Emission (Typical):<50 dB @ 3 ft
Locked Rotor Amps (LRA):195A
Communication Interface:RS485/Wi-Fi/CAN
Standard Warranty**:10-year standard warranty
Enclosure Rating:NEMA 4X
Protections:PV Arc Fault Protection, PV Ground Fault Protection, PV Reverse Polarity Protection, Pole Sensitive Leakage Current Monitoring Unit, Surge Protection Device, integrated PV disconnect
10-Year EG4 Manufacturer Warranty
