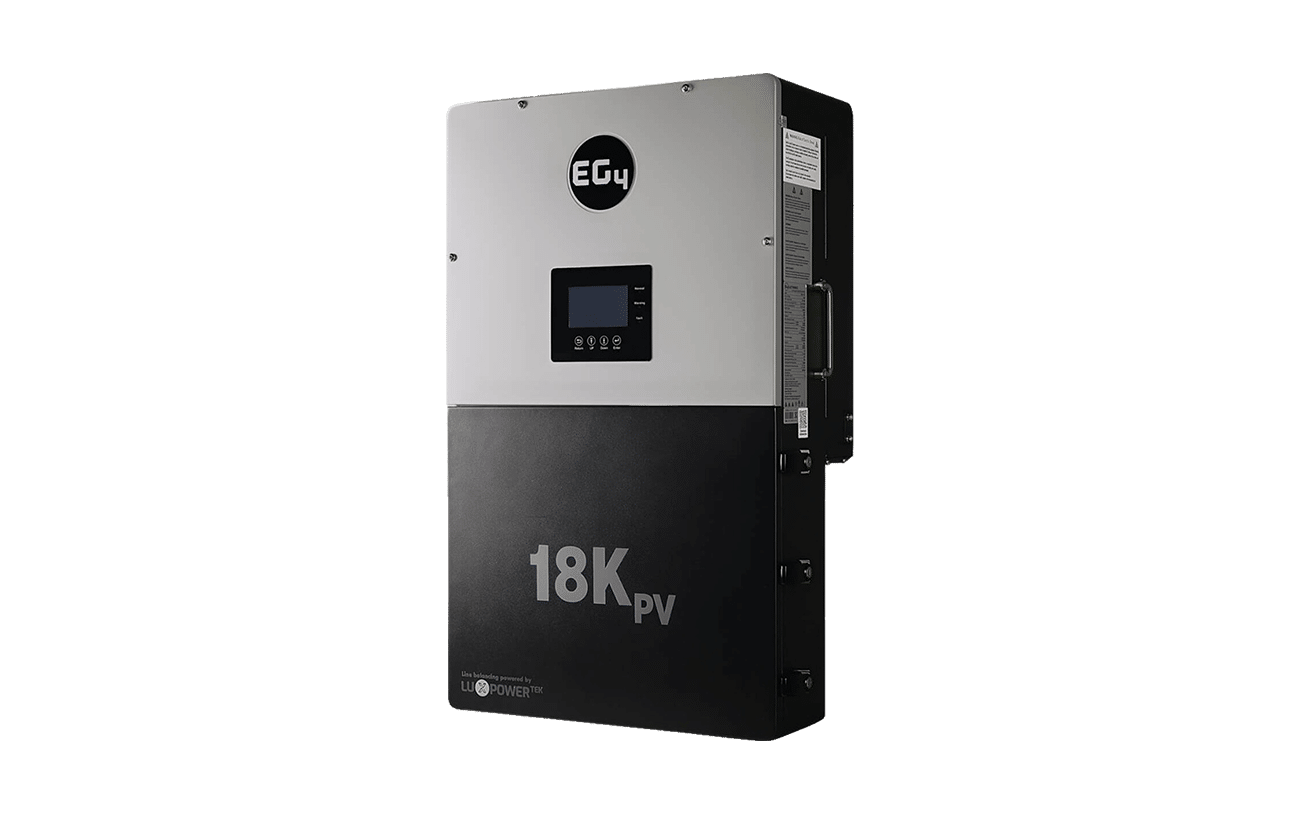

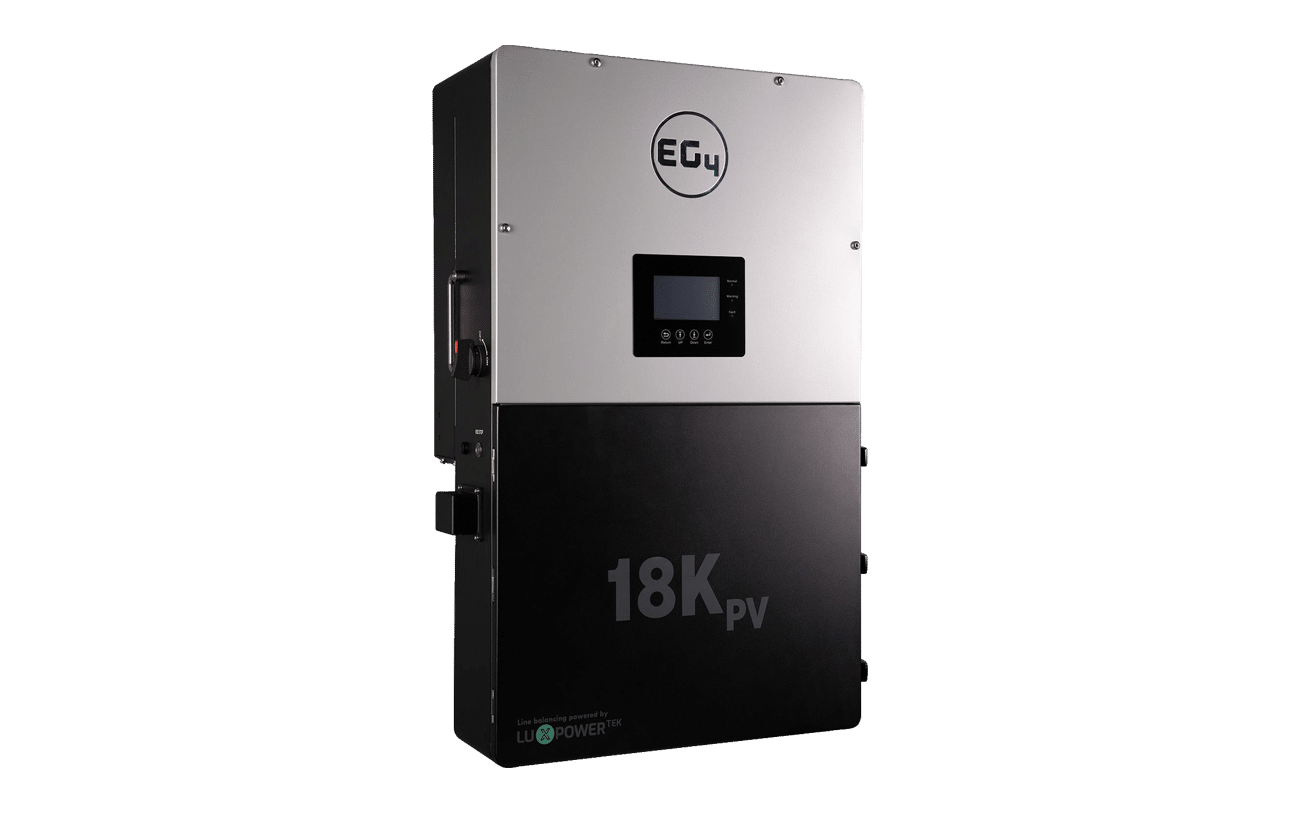

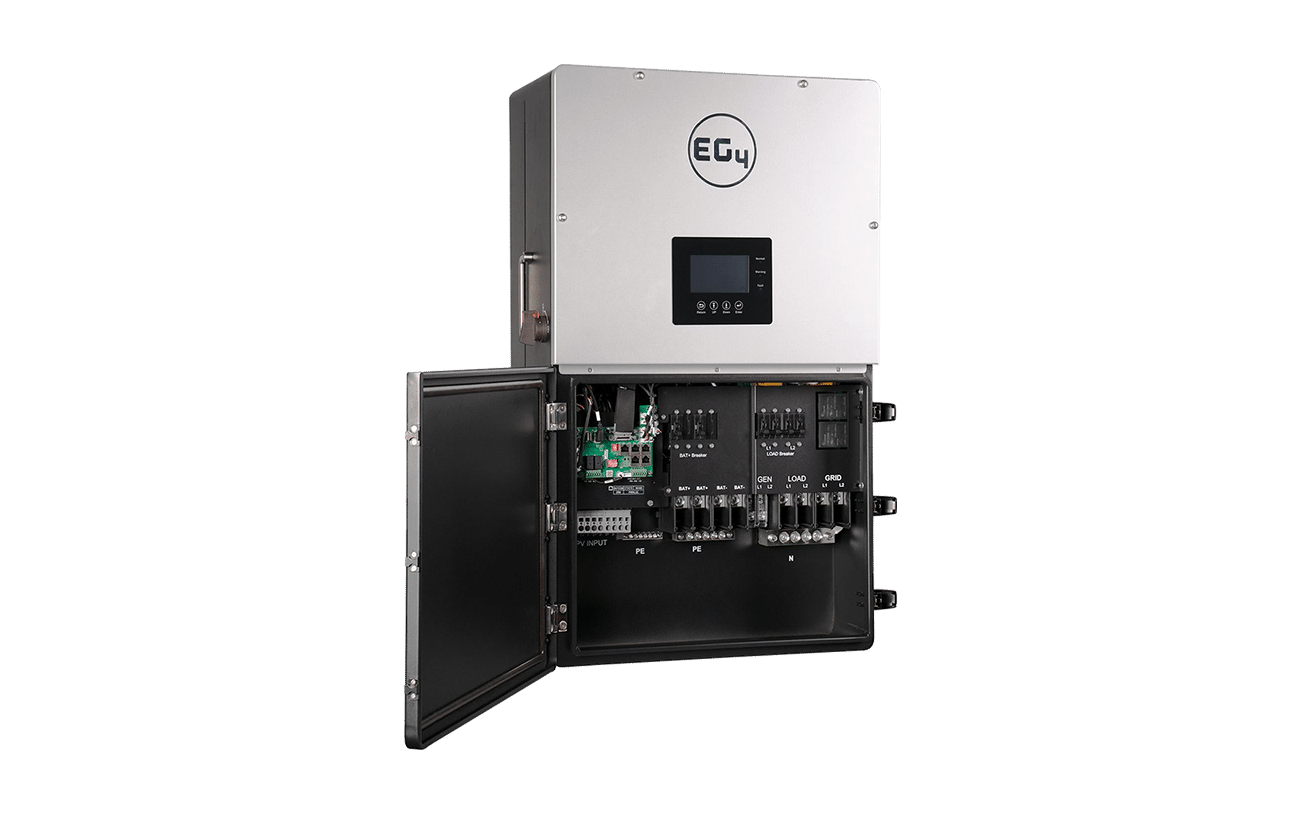

EG4 18kPV All-in-One Hybrid Solar Inverter | 18kW PV / 12kW AC | Split-Phase | 4-MPPT | Scalable | Remote Wi-Fi Monitoring
Original price was: $5,763.00.$4,898.00Current price is: $4,898.00.
See More On YouTube
https://youtu.be/12_dmgVCc_Y
Inverter Downloads
SKU#:INV024
Spec Sheet:
DOWNLOAD
DOWNLOADUser Manual:DOWNLOAD
DOWNLOADUL 1741 Certificate:DOWNLOAD
DOWNLOADUL 1741 CRD PCS Test Verification Of Conformity Security:DOWNLOAD
DOWNLOADRapid Shut Down Wiring Guide:DOWNLOAD
DOWNLOADWhitepapers, Firmware, & Wiring Diagrams:
GO TO LINK
GO TO LINKCEC Listing – EG4 18kPv:GO TO LINK
GO TO LINKInverter Specifications
AC Voltage:120V AC / 240V AC
AC Frequency:50 Hz / 60 Hz
Nominal Voltage:51.2V
Max. Continuous AC Current:50A @ 240V AC
Max. AC Input Power:12000W
Max. AC Bypass:200A
Operating Voltage Range:180 – 270V AC
Output Voltage:120V AC / 240V AC
Max. Continuous Output Current:50A
Output Power:12000W
BMS Cutoff Range:42 – 47V
Surge Capacity (with PV):14700W (10 min) / 15500W (5 min)
Surge Capacity (without PV):13500W (10 min)
Max. Continuous Line Wattage:6000W
Power Factor:0.99 (Full Load)
Reactive Power Adjustment Range:0.8 ~ 0.8 Leading Adjustable
Total Harmonic Distortion:<5% (Full Load)
Transfer Time:10 – 20 ms (Single) / 20 ms (Parallel)
Max. Continuous Output Current:50A
AC Bypass (Generator):90A
Output Voltage:120V AC / 240V AC
Output Power:12000W
Max. Continuous Line Wattage:8000W (per 120V)
Operating Voltage Range:180 – 270V AC
Output Frequency:50 Hz / 60 Hz
Max. Output Power (with PV):14700W (10 min) / 15500W (5 min)
Max. Output Power (without PV):13500W (10 min)
Total Harmonic Distortion Voltage:<5%
Switching Time:10 ms
No. of MPPTs:3
Inputs per MPPT:2 (MPPT 1) / 1 (MPPT 2 & 3)
Max. Input Current:25A (MPPT 1) / 15A (MPPT 2 & 3)
Max. Short Circuit Input Current:31A (MPPT 1) / 19A (MPPT 2 & 3)
DC Input Voltage Range:100 – 600V DC
Start Up Voltage:100V DC
MPPT Operating Voltage Range:140 – 500V DC
MPPT Voltage:360V DC
Max. PV Array Power:18000W
Max. Efficiency:94 – 99.9%
Idle Consumption:~70W (Normal) / ~18W (Standby Mode)
Nominal Voltage:48V DC
Voltage Range:40 – 60V DC
Max. Charge / Discharge Current:250A
Recc. Battery Capacity per Inverter:>200 Ah
Operating / Storage Temperature Range:-13ºF – 140ºF (-25ºC – 60ºC)
Altitude:<6,561 ft (2000 m)
Relative Humidity:0 – 100%
Typical Noise Emission:68 dB @ 3 ft
Protection Rating:IP65 / NEMA 4X
Communications:RS485 / CANBus / WiFi
Max. Parallel Connections:10
Weight:121 lbs (55 kg)
Depth:11.2 in (285 mm)
Width:20.5 in (520 mm)
Height:34.3 in (871 mm)
Compare Inverter
10-Year EG4 Manufacturer Warranty
