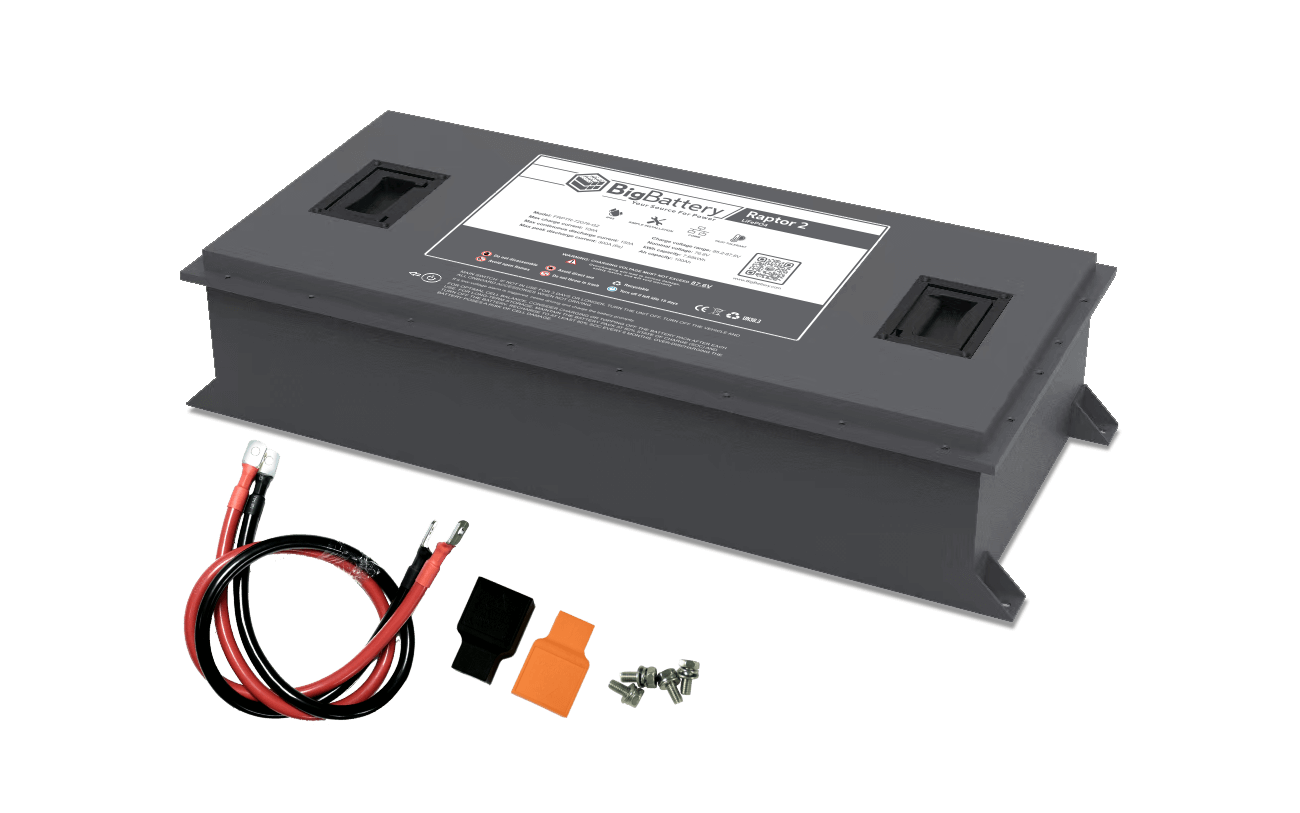

72V RAPTOR 2 – 7.68kWh LiFePO4

Original price was: $2,750.00.Current price is: $2,590.00.

SKU# FRPTR-72076-G2

BigBattery’s all-new 72V LiFePO4 RAPTOR 2 is a game-changer when it comes to powering your high-voltage golf carts, transport vehicles, and industrial equipment, packing 7.68 kWh of capacity in a highly durable, energy-dense form factor.



The RAPTOR 2 was designed with safety, longevity, and visibility in mind. Not only does this battery come equipped with Tier 1 LFP cells, the safest chemistry on the market today, along with a state-of-the-art BMS featuring an automatic cell-balancing function, but all of these advanced components are housed in an IP65-rated, vibration-resistant casing so you can work hard and play harder. But it’s not enough just to know your power is secure. You should be able to see it firsthand, and the RAPTOR 2 makes this possible. With an LED State of Charge Indicator, and full RS485 communication protocols, you can stay updated on the status and performance of your battery with just a glance.



Outfit your equipment with a reliably powerful, energy-dense RAPTOR 2 battery system, and experience superior lithium performance around the neighborhood, on your campus, around the worksite, or in your warehouse. Shop the all-new 72V RAPTOR 2 today.

Tech Specs

SKU: FRPTR-72076-G2
GTIN-12 (U.P.C.): 850061252371
System Voltage: 72V
Nominal Voltage: 76.8V
Chemistry: LiFePO4
kWh Capacity: 7.68kWh
Ah Capacity: 100Ah
Charging Voltage Range: 85.2 – 87.6V
Max Charge Voltage: 87.6V
Operating Voltage Range: 72 – 87.6V
Suggested Low Voltage Cutoff: 72 – 76.2V
BMS Cutoff Range: 66V – 70.5V
Cell Configuration: 24S
Max Continuous Discharge Current: 150A
Max Continuous Power: 7680W
Max Discharge Peak Current: 300A (Max 5 seconds)
Max Charge Current: 100A
Charge Temperature Range: 32°F – 113°F (0°C – 45°C)
Discharge Temperature Range: -4°F – 149°F (-20°C – 65°C)
Optimal Discharge Temperature Range: 59°F – 95°F (15°C – 35°C)
Storage Temperature Range: 23°F – 95°F (-5°C – 35°C) (Max 3 months, SoC >50%)
Weight: 143 lb (64.9 kg)
Depth: 15.3 in (389 mm)
Width: 34.5 in (876 mm)
Height: 7.4 in (188 mm)
Protection Rating: IP65 / NEMA 4X
Communications: RS485
Spec Sheet: Spec Sheet
User Manual: User Manual
UN38.3 Certificate: UN38.3 Certificate

Designed For 48V Applications

  • 72V GOLF CARTS
  • EV UTVs & LSVs
  • LEAD ACID REPLACEMENT
  • INDUSTRIAL EQUIPMENT
  • FORKLIFTS
  • LIGHT TOWERS
  • DIGITAL SIGNS
  • EMERGENCY BACKUP
