48V 2X HUSKY 1 KIT – Victron 48V MultiPlus-II 120V 3000W Inverter/Charger

$3,260.00

SKU# K0137

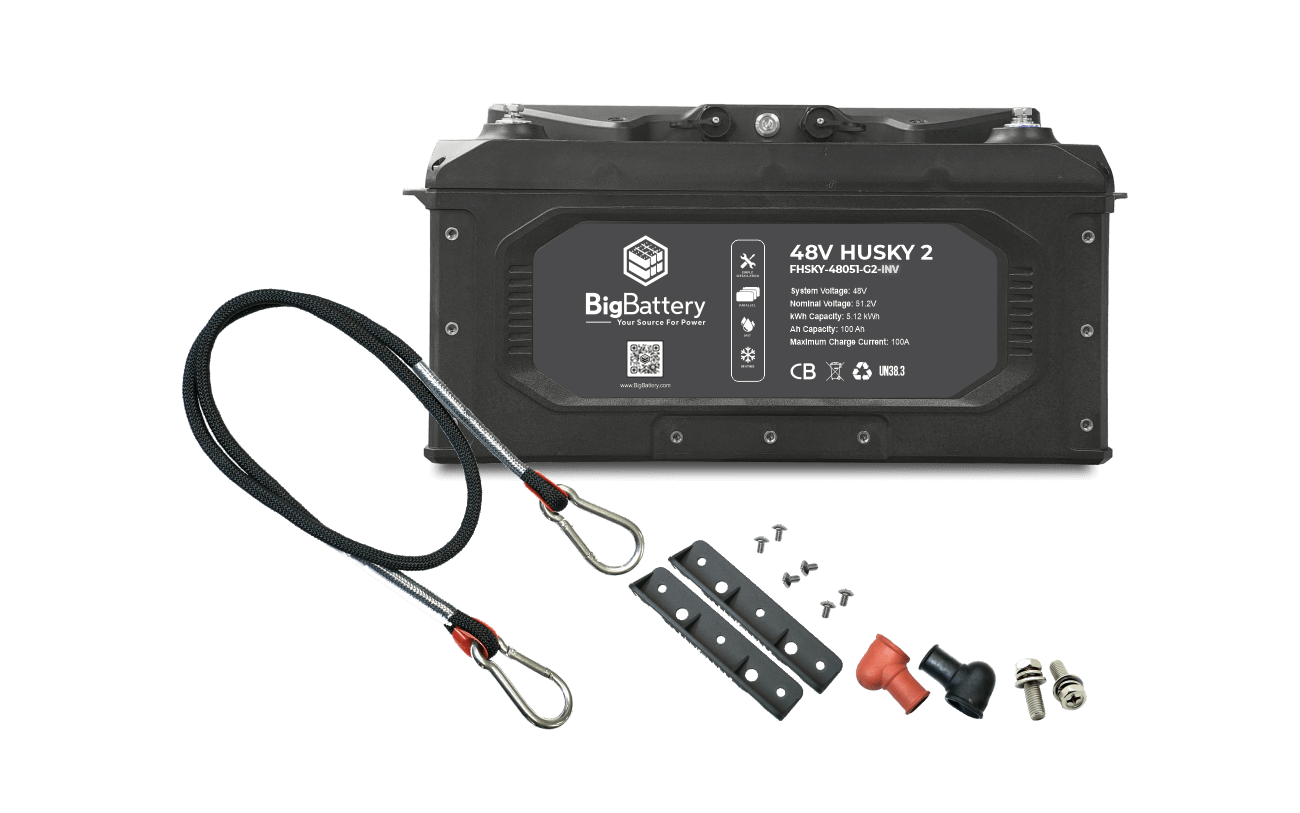

The 48V 2× HUSKY 2 Inverter Kit with Victron MultiPlus-II 3000W is a compact, high-performance lithium power solution for golf carts, utility vehicles, RVs, and camper vans. Featuring two 48 V 5.12 kWh LiFePO₄ HUSKY 2 batteries for a total of 10.24 kWh, this system delivers exceptional energy density, long cycle life, and dependable performance using Tier 1 LFP cells and advanced BMS protection.



Housed in an IP65-rated, vibration-resistant enclosure with built-in self-heating, the HUSKY 2 supports safe cold-weather operation and rugged mobile use. Paired with the Victron MultiPlus-II 48 V 120 V 3000W inverter/charger, the kit provides clean AC power, advanced system protections, and WiFi-enabled monitoring for real-time performance visibility. Lightweight, durable, and easy to integrate, the 48V HUSKY 2 Victron Kit delivers reliable power wherever mobility and efficiency matter most.

Off-Grid Reliability

Reliably delivering up power to your home wherever you may be through rain or shine, The Husky 2 working in tandem with Victron Multiplus Inverter is one of the essential kits to start with for energy independence for off-grid enthusiasts.



Designed For 48V Applications

  • GOLF CARTS
  • UTILITY CARTS
  • 48V UTVs & LSVs
  • LEAD ACID REPLACEMENT
  • CLASS A, B, & C RVs
  • CAMPER VANS
  • FOOD TRUCKS
  • COMMERCIAL VEHICLES
  • EMERGENCY POWER
  • MOBILE BACKUP

See More On YouTube



Battery Downloads

SKU#:K0137
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
CE Certificate:DownloadDOWNLOAD
UN38.3 Certificate:DownloadDOWNLOAD
Safety Data Sheet:DownloadDOWNLOAD

Battery Specifications

GTIN-12 (U.P.C.):850061252296
System Voltage:48V
Nominal Voltage:51.2V
Chemistry:LiFePO4
kWh Capacity:5.12kWh
Ah Capacity:100Ah
Charging Voltage Range:55.6 – 57V
Max Charge Voltage:58.8V
Operating Voltage Range:48 – 57V
Suggested Low Voltage Cutoff:48 – 50.8V
BMS Cutoff Range:42 – 47V
Cell Configuration:16S
Max Continuous Discharge Current:150A
Recommended Continuous Discharge Current:100A
Max Continuous Power:7500W
Recommended Continuous Power:4000W
Max Discharge Peak Current:225A (Max 5 seconds)
Max Charge Current:100A
Charge Temperature Range:-4°F – 113°F (-20°C – 45°C)
Discharge Temperature Range:-4°F – 122°F (-20°C – 50°C)
Optimal Discharge Temperature Range:59°F – 95°F (15°C – 35°C)
Storage Temperature Range:-4°F – 122°F (-20°C – 50°C) (Max 6 months)
Weight:100 lb (45.4 kg)
Depth:12.6 in (320 mm)
Width:18.1 in (460 mm)
Height:9.8 in (249 mm)
Max Connections:Up to (16) Parallel
Protection Rating:IP65 / NEMA 4X
Communications:CANBus / RS485 (Parallel only)
Self-Heating:Yes

Inverter Downloads

SKU#:K0137
Spec Sheet:DownloadDOWNLOAD

Inverter Specifications

GTIN-12 (U.P.C.):850061252432
Battery Voltage:48VDC
Rated Power:5000 VA / 4000 W
Peak Power:5500 W
Parallel Capacity:Yes
Nominal Output Voltage RMS:N/A
Output Frequency:60 Hz ± 0.1%
AC Voltage Regulation:120 VAC ± 2%
Inverter Efficiency (Peak):94%
Waveform:Pure Sine Wave
Transfer Time:N/A
Voltage:120VAC
Selectable Voltage Range:90-140 VAC
Frequency Range (Auto-Sensing):45 – 65 Hz
Max. Charging Current:70A
Max. PV Array Power:N/A
Max. PV Charge Current:N/A
Max. PV Array Open Circuit Voltage:N/A
Max. Efficiency:N/A
No. of Independent MPP Trackers / Strings per MPP Tracker:N/A
MPPT Range at Operating Voltage:N/A
Weight:42 lbs
Depth:5.8 in
Width:10.9 in
Height:21.1 in
Operating Temperature:N/A
Altitude:N/A
Protection Rating:N/A
