Designed For 48V Applications
- LEAD ACID REPLACEMENT
- OFF-GRID SYSTEMS
- EMERGENCY BACKUP
- CLASS A, B, & C RVs
- CAMPER VANS
- FOOD TRUCKS
- COMMERCIAL VEHICLES
- MOBILE POWER SETUPS
See More On YouTube

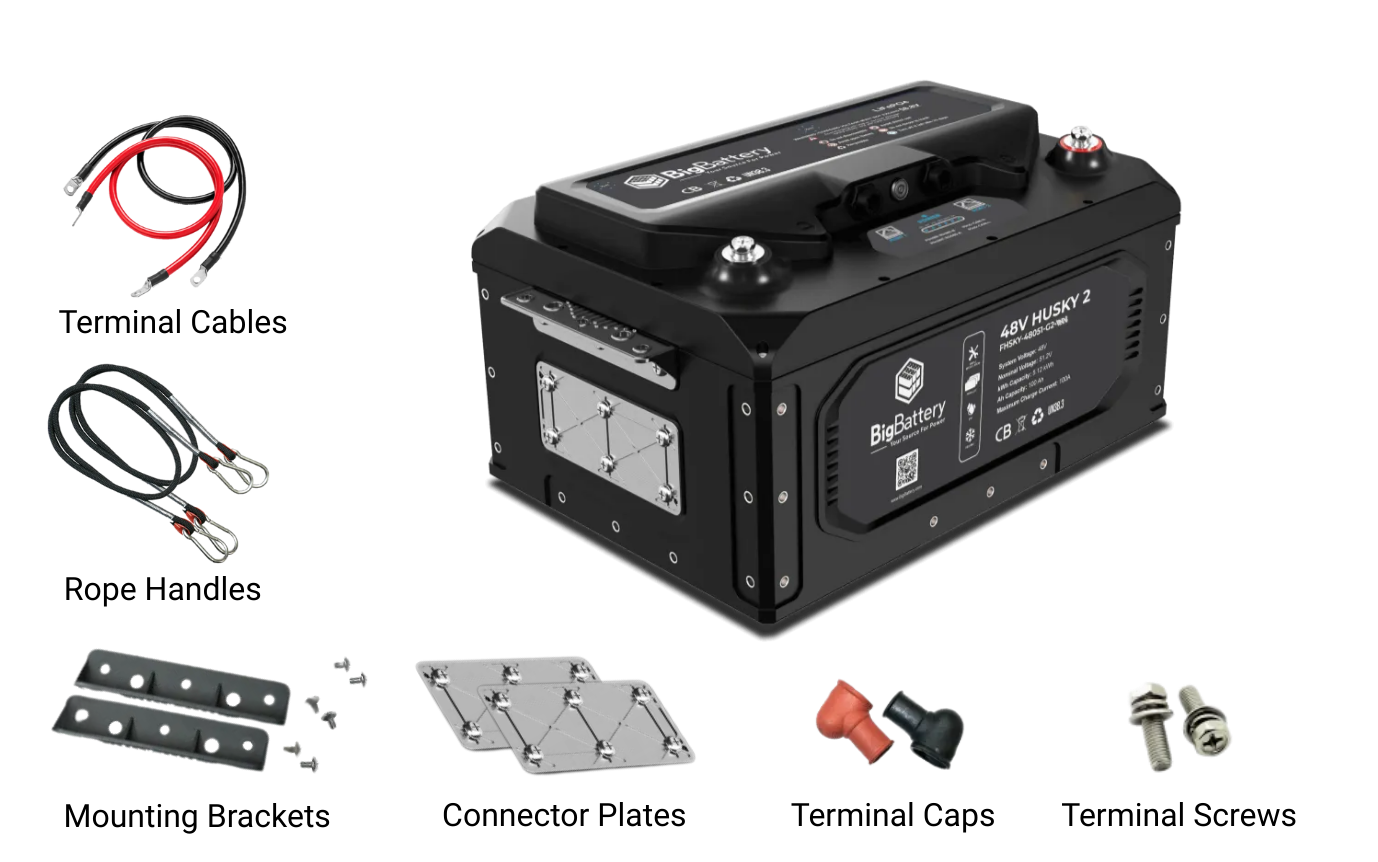

48V HUSKY 2 INV KIT – EG4 6K OFF-GRID INVERTER
$7,180.00
SKU# K0705-V

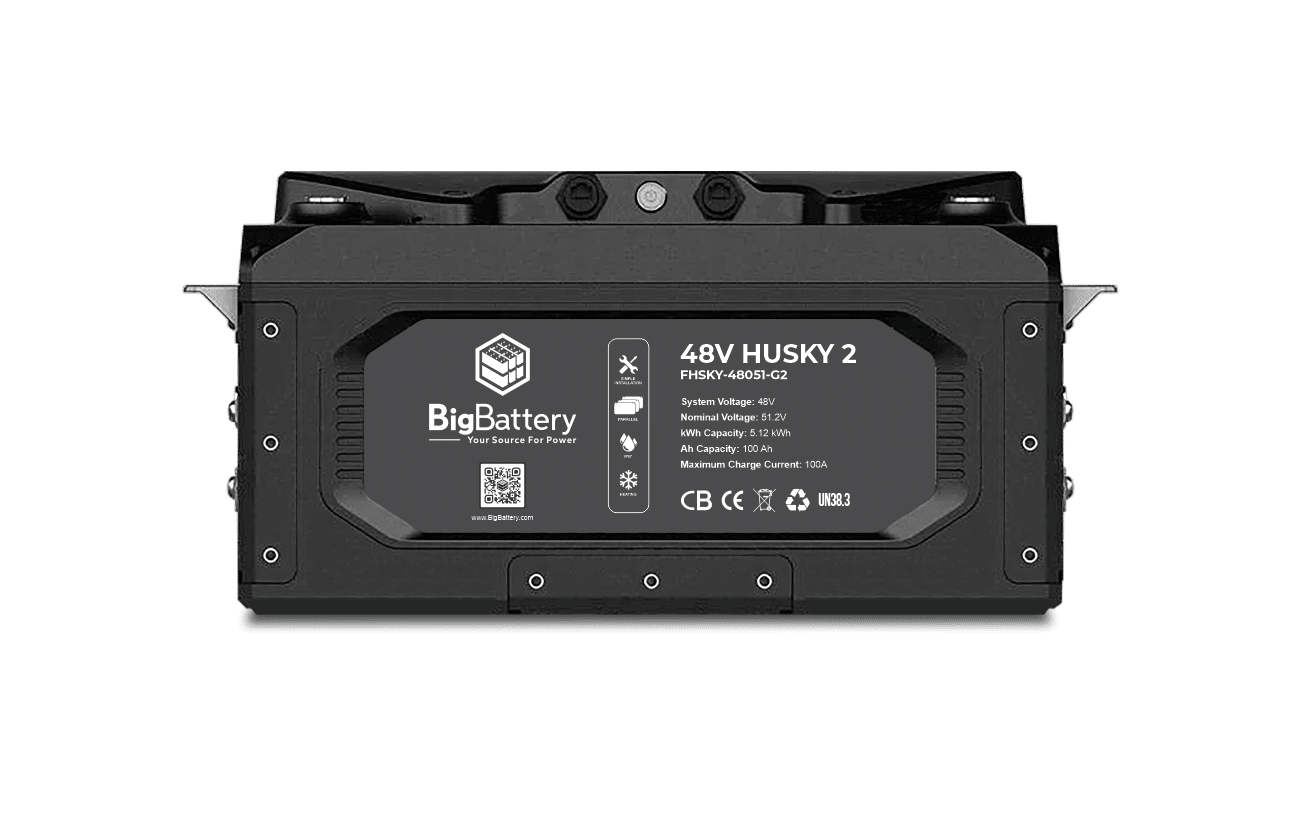

The 48V HUSKY 2 Inverter Kit is a high-performance off-grid and backup power solution built for homes, RVs, camper vans, and mobile or emergency power systems. Featuring a 10.24 kWh 48V LiFePOâ‚„ HUSKY 2 battery, this compact, energy-dense system delivers reliable power with Tier 1 LFP cells, advanced BMS protection, and a wide operating temperature range for dependable year-round performance. Its IP65-rated, vibration-resistant enclosure and built-in self-heating support safe operation in harsh and cold environments.
Paired with the EG4 6000W split-phase off-grid inverter, the system supports up to 8 kW of solar input, seamless UPS-level switching, smart load control, and scalable parallel operation up to 96 kW. With CANBus and RS485 communications, real-time LCD monitoring, and space-saving design, the 48V HUSKY 2 Kit delivers efficient, expandable lithium power for off-grid living, backup resilience, and mobile energy independence.
Battery Downloads
DOWNLOADBattery Specifications
System Voltage:48V
Nominal Voltage:51.2V
Chemistry:LiFePO4
kWh Capacity:5.12kWh
Ah Capacity:100Ah
Charging Voltage Range:55.6 – 57V
Max Charge Voltage:58.8V
Operating Voltage Range:48 – 57V
Suggested Low Voltage Cutoff:48 – 50.8V
BMS Cutoff Range:42 – 47V
Cell Configuration:16S
Max Continuous Discharge Current:150A
Recommended Continuous Discharge Current:100A
Max Continuous Power:7500W
Recommended Continuous Power:4000W
Max Discharge Peak Current:225A (Max 5 seconds)
Max Charge Current:100A
Charge Temperature Range:-4°F – 113°F (-20°C – 45°C)
Discharge Temperature Range:-4°F – 122°F (-20°C – 50°C)
Optimal Discharge Temperature Range:59°F – 95°F (15°C – 35°C)
Storage Temperature Range:-4°F – 122°F (-20°C – 50°C) (Max 6 months)
Weight:100 lb (45.4 kg)
Depth:12.6 in (320 mm)
Width:18.1 in (460 mm)
Height:9.8 in (249 mm)
Max Connections:Up to (16) Parallel
Protection Rating:IP65 / NEMA 4X
Communications:CANBus / RS485 (Parallel only)
Self-Heating:Yes
Inverter Downloads
Inverter Specifications
AC Voltage:120V AC / 240V AC
AC Frequency:50 Hz / 60 Hz
Max. Continuous AC Current:37.5A @ 240V
Max. AC Input Power:9000W
AC Bypass:50A
Output Voltage:120V AC / 240V AC
Output Frequency:50 Hz / 60 Hz
Max. Continuous Output Current:25A @ 240V
Output Power:6000W
Surge Capacity:12000W (3.5 sec) / 11000W (5 sec)
Power Factor:0.99 (Full Load)
Reactive Power Adjustment Range:-0.8 – 0.8 Leading Adjustable
Total Harmonic Distortion:<3%
Switching Time:<15 ms (Single) / <30 ms (Parallel)
No. of MPPTs (Inputs per MPPT):2 (1)
Max. Input Current:17A / 17A
Max. Short Circuit Input Current:25A / 25A
DC Input Voltage Range:100 – 480V DC
Start Up Voltage:100V DC ± 10V DC
MPPT Operating Voltage Range:120 – 385V DC
MPPT Voltage:320V DC
Max. PV Array Power:8000W (4000W per MPPT)
MPPT Efficiency:99%
Nominal Voltage:48V DC
Battery Voltage Range:46.4 – 60V DC
Max. Discharge Current:140A
Max. Charge Current:125A
DC Cut-Off Voltage:59V DC
DC Recovery Voltage:57.4V DC
Charge Cut-Off Voltage:58.4V DC
Operating Temperature:32ºF – 113ºF (0ºC – 45ºC)
Storage Temperature:5ºF – 140ºF (-15ºC – 60ºC)
Altitude:<6,561 ft (2000 m)
Relative Humidity:5 – 95%
Typical Noise Emission:<58 dB
Protection Rating:IP20
Max. Parallel Connections:16
Weight:52.9 lbs (24 kg)
Depth:5.25 in (132 mm)
Width:18 in (457 mm)
Height:25.5 in (648 mm)
