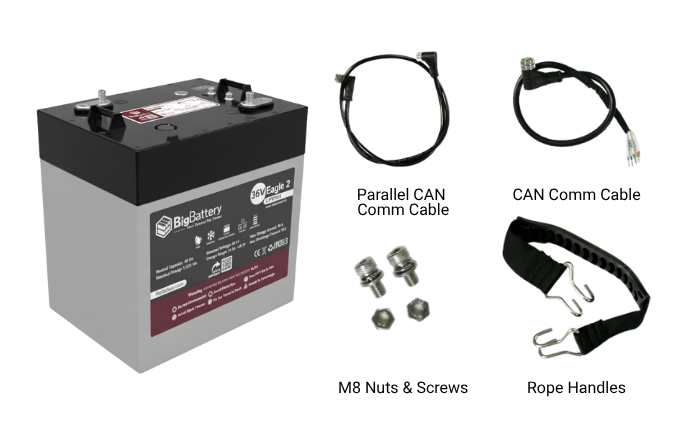

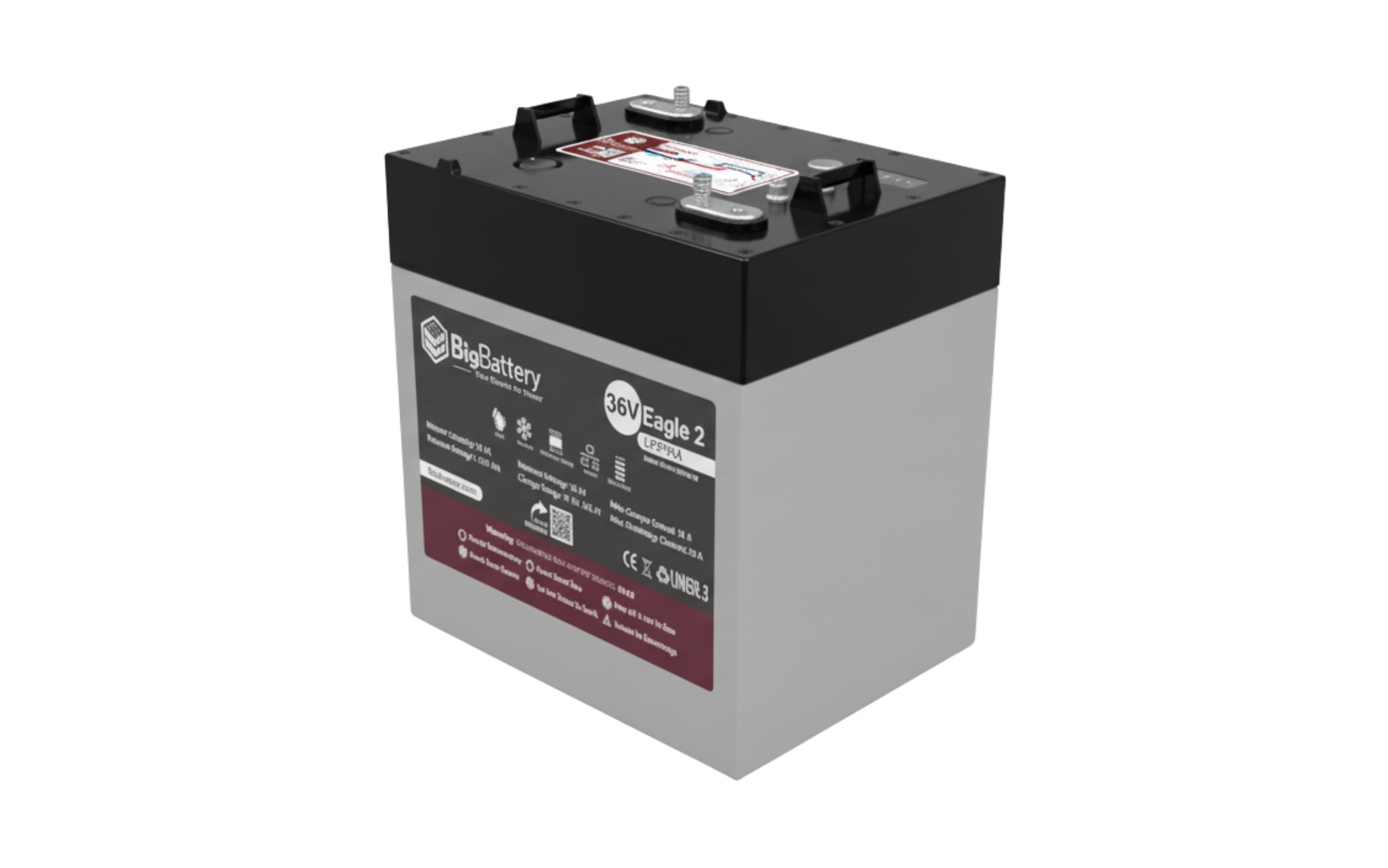

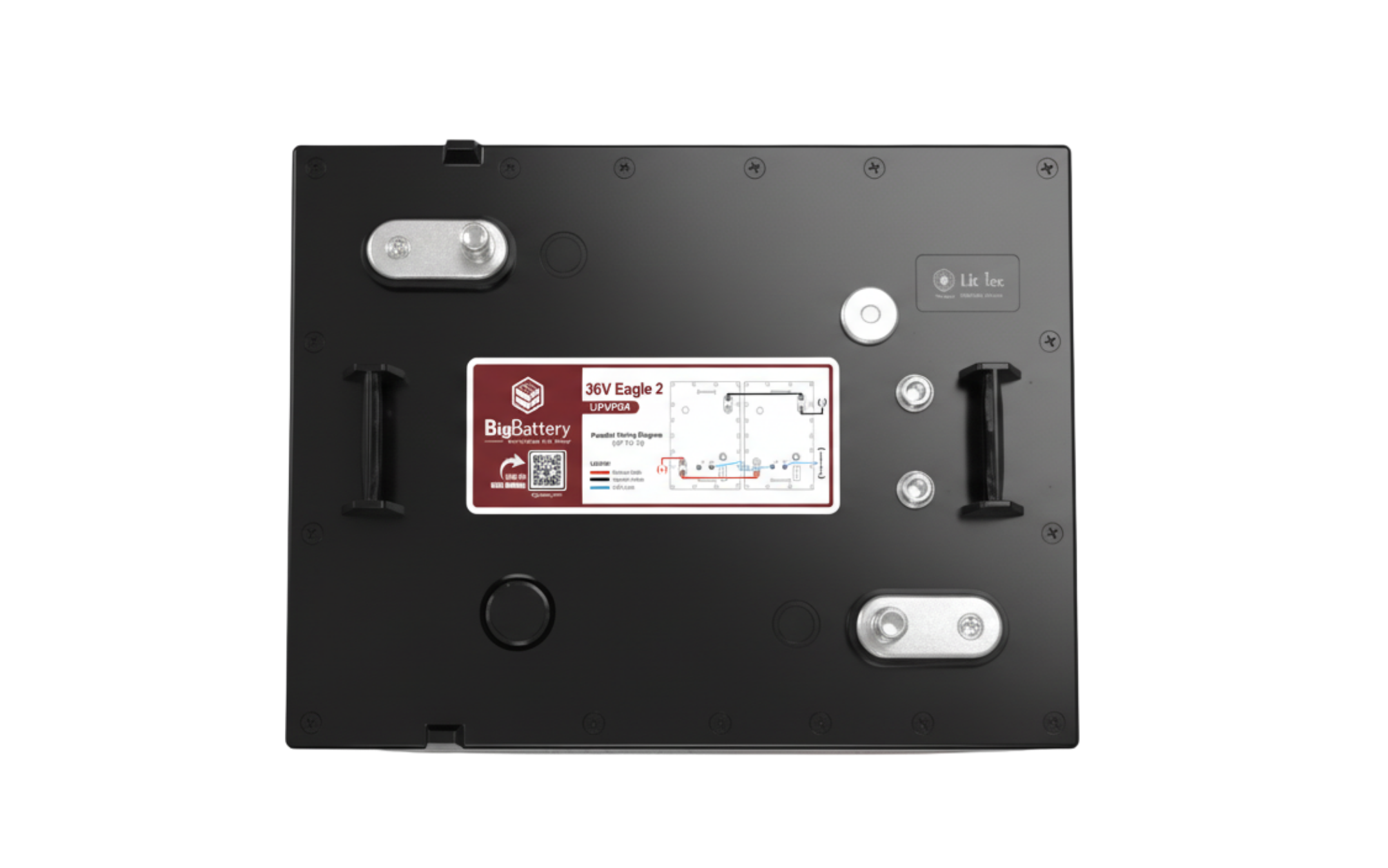

36V EAGLE2 1.63 kWh LiFePO4 Battery with Heater and Comms
$730.00
SKU# FEAGL-36015-G2
Upgrade legacy 36V systems with the 36V Eagle 2 Lithium Battery, a true drop-in GC2 / Trojan T-105 replacement for golf carts and other light electric vehicles. This 36V lithium golf cart battery delivers longer range, faster charging, and maintenance-free operation in a GC2 form factor that fits most existing battery trays. Each Eagle 2 packs 1.63 kWh of Tier-1 LiFePOâ‚„ cells, featuring a built-in heater and CANbus communications for reliable year-round performance and system monitoring.Â
Ideal for golf carts, Tuggers, Floor Sweepers, Pallet Jacks, NEVs, industrial equipment, and marine or RV house power, the 36V Eagle 2 LiFePOâ‚„ battery brings modern lithium efficiency to 36V platforms without costly controller conversions.
36V Eagle Videos Coming Soon – Watch 24V & 48V Eagle Now!
BigBattery Eagle 2 Videos
Eagle 2 Application Content
Related Eagle 2 Videos
Battery Downloads
DOWNLOADBattery Specifications
System Voltage:36V
Nominal Voltage:38.4V
Chemistry:LiFePO4
kWh Capacity:1.54kWh
Ah Capacity:40Ah
Charging Voltage Range:41.7 – 43.2V
Max Charge Voltage:43.8V
Operating Voltage Range:36 – 43.2V
Suggested Low Voltage Cutoff:36 – 38.1V
BMS Cutoff Range:31.5 – 35.3V
Cell Configuration:12S
Max Continuous Discharge Current:80A
Max Continuous Power:3072W
Max Discharge Peak Current:200A (Max 3 seconds)
Max Charge Current:40A
Charge Temperature Range:-4°F – 131°F (-20°C – 55°C)
Discharge Temperature Range:-4°F – 140°F (-20°C – 60°C)
Optimal Discharge Temperature Range:59°F – 95°F (15°C – 35°C)
Storage Temperature Range:23°F – 95°F (-5°C – 35°C) (Max 3 months)
32°F – 77°F (0°C – 25°C) (Max 12 months)
32°F – 77°F (0°C – 25°C) (Max 12 months)
Weight:38 lb (17.2 kg)
Depth:7.1 in (180 mm)
Width:10.2 in (260 mm)
Height:10.8 in (274 mm)
Max Connections:Up to (10) Parallel
Protection Rating:IP67 / NEMA 6
Communications:CANBus
Self-Heating:Yes
BigBattery batteries are backed by a 12-year warranty, giving you reliable long-term performance and confidence in every charge.
Designed for durability and engineered to last, our batteries are built to power your setup for over a decade.
For more information, please visit our policy page.
