Designed For 48V Applications
- GOLF CARTS
- UTILITY CARTS
- 48V UTVs & LSVs
- LEAD ACID REPLACEMENT
- CLASS A, B, & C RVs
- CAMPER VANS
- FOOD TRUCKS
- COMMERCIAL VEHICLES
- EMERGENCY POWER
- MOBILE BACKUP
See More On YouTube
48V 2X HUSKY 2 KIT & Victron 48V MultiPlus-II 120V 5000W Inverter/Charger
$7,360.00
SKU# K0138-V

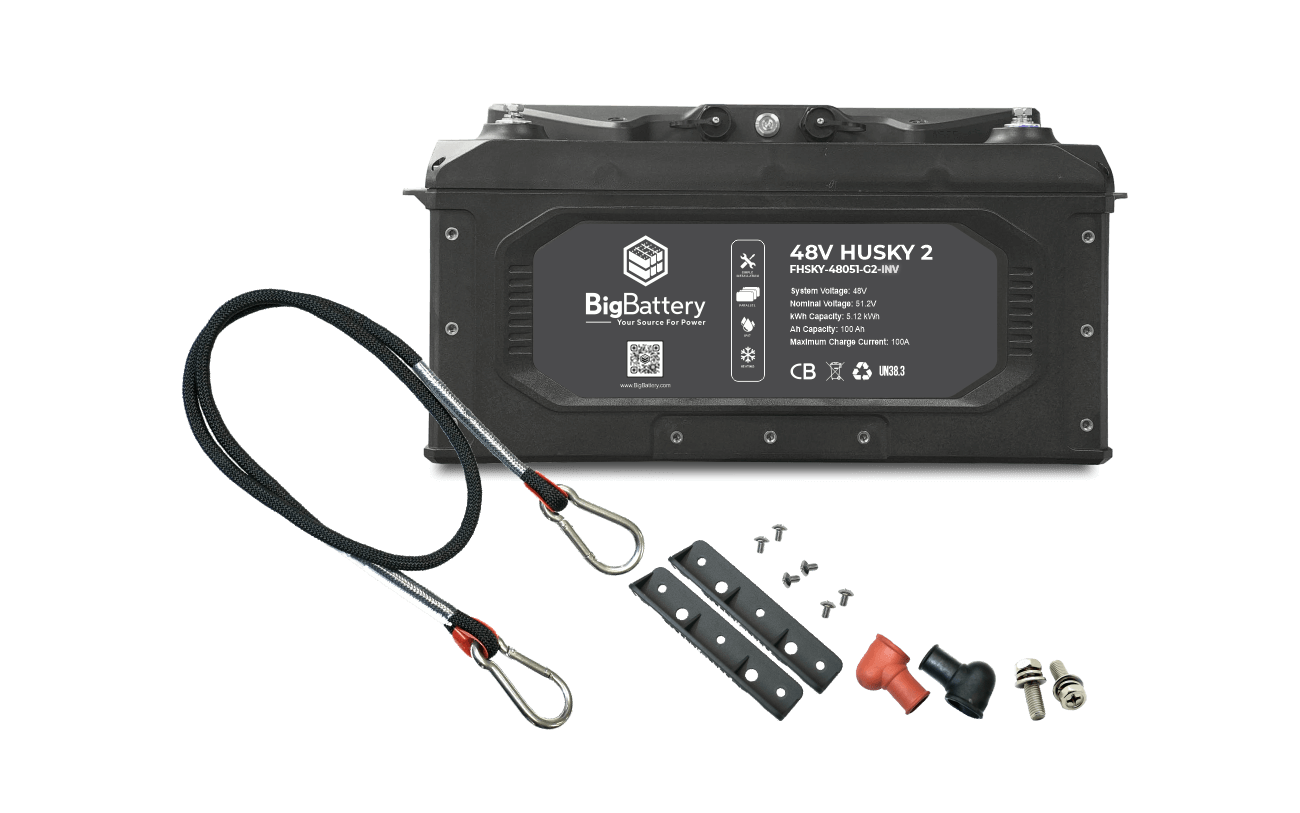

The 48V 2× HUSKY 2 Kit with Victron MultiPlus-II 5000W Inverter/Charger is a high-performance lithium power solution for golf carts, utility vehicles, RVs, and camper vans. Featuring two 48V 5.12 kWh LiFePO₄ HUSKY 2 batteries for a total of 10.24 kWh, this system delivers exceptional energy density, long cycle life, and reliable performance using Tier 1 LFP cells and advanced BMS protection.
Housed in IP65-rated, vibration-resistant enclosures with built-in self-heating, the HUSKY 2 supports safe cold-weather operation and rugged mobile use. Paired with the Victron MultiPlus-II 48V 120V 5000W inverter/charger, the kit provides clean, high-output AC power, advanced system protections, and WiFi-enabled monitoring for real-time visibility. Compact, durable, and easy to integrate, the 48V HUSKY 2 Victron 5K Kit delivers dependable power wherever performance and reliability matter most.
Battery Downloads
Battery Specifications
GTIN-12 (U.P.C.):850061252296
System Voltage:48V
Nominal Voltage:51.2V
Chemistry:LiFePO4
kWh Capacity:5.12kWh
Ah Capacity:100Ah
Charging Voltage Range:55.6 – 57V
Max Charge Voltage:58.8V
Operating Voltage Range:48 – 57V
Suggested Low Voltage Cutoff:48 – 50.8V
BMS Cutoff Range:42 – 47V
Cell Configuration:16S
Max Continuous Discharge Current:150A
Recommended Continuous Discharge Current:100A
Max Continuous Power:7500W
Recommended Continuous Power:4000W
Max Discharge Peak Current:225A (Max 5 seconds)
Max Charge Current:100A
Charge Temperature Range:-4°F – 113°F (-20°C – 45°C)
Discharge Temperature Range:-4°F – 122°F (-20°C – 50°C)
Optimal Discharge Temperature Range:59°F – 95°F (15°C – 35°C)
Storage Temperature Range:-4°F – 122°F (-20°C – 50°C) (Max 6 months)
Weight:100 lb (45.4 kg)
Depth:12.6 in (320 mm)
Width:18.1 in (460 mm)
Height:9.8 in (249 mm)
Max Connections:Up to (16) Parallel
Protection Rating:IP65 / NEMA 4X
Communications:CANBus / RS485 (Parallel only)
Self-Heating:Yes
Inverter Downloads
SKU#:K0138
Spec Sheet:
DOWNLOAD
DOWNLOADInverter Specifications
GTIN-12 (U.P.C.):850061252432
Battery Voltage:48VDC
Rated Power:5000 VA / 4000 W
Peak Power:5500 W
Parallel Capacity:Yes
Nominal Output Voltage RMS:N/A
Output Frequency:60 Hz ± 0.1%
AC Voltage Regulation:120 VAC ± 2%
Inverter Efficiency (Peak):94%
Waveform:Pure Sine Wave
Transfer Time:N/A
Voltage:120VAC
Selectable Voltage Range:90-140 VAC
Frequency Range (Auto-Sensing):45 – 65 Hz
Max. Charging Current:70A
Max. PV Array Power:N/A
Max. PV Charge Current:N/A
Max. PV Array Open Circuit Voltage:N/A
Max. Efficiency:N/A
No. of Independent MPP Trackers / Strings per MPP Tracker:N/A
MPPT Range at Operating Voltage:N/A
Weight:42 lbs
Depth:5.8 in
Width:10.9 in
Height:21.1 in
Operating Temperature:N/A
Altitude:N/A
Protection Rating:N/A
