24V HUSKY 2 INV KIT
$2,180.00
SKU# K0969-V

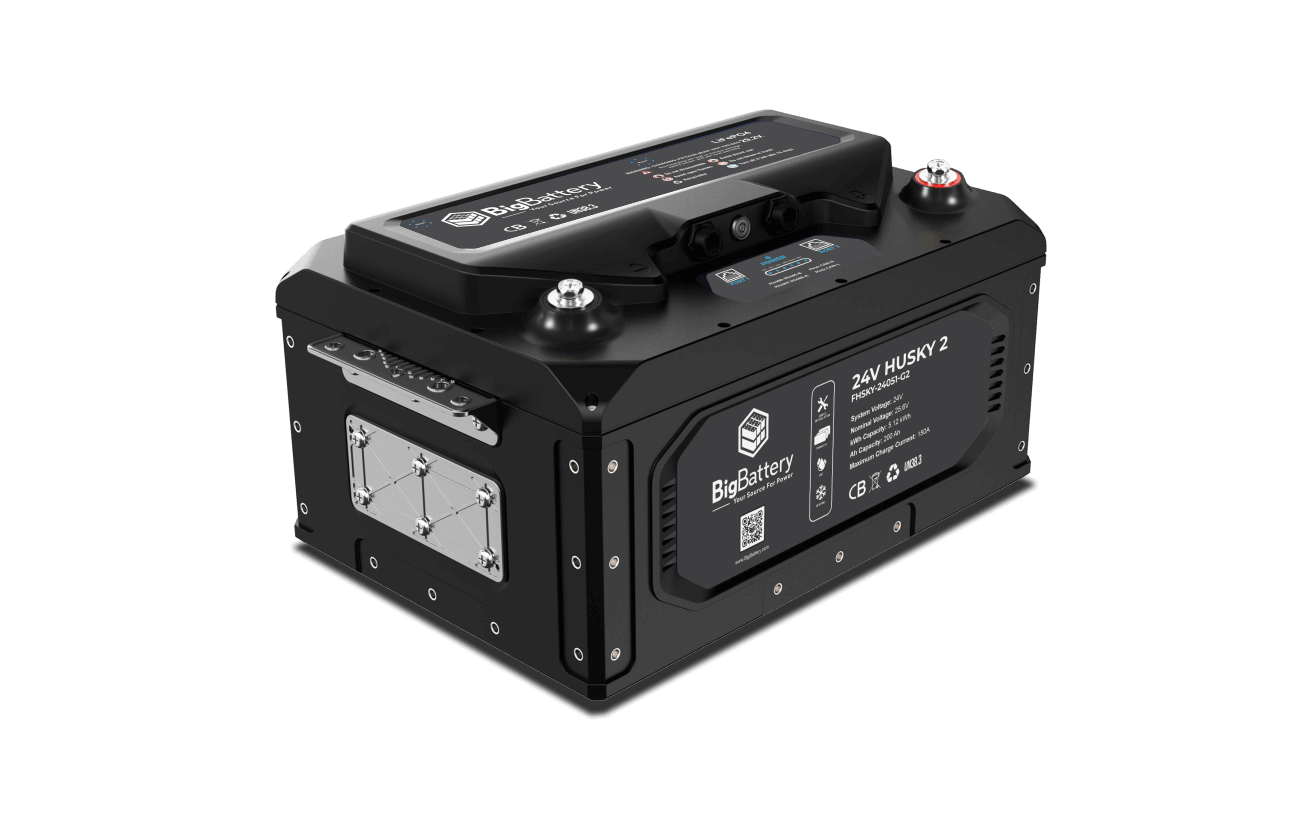

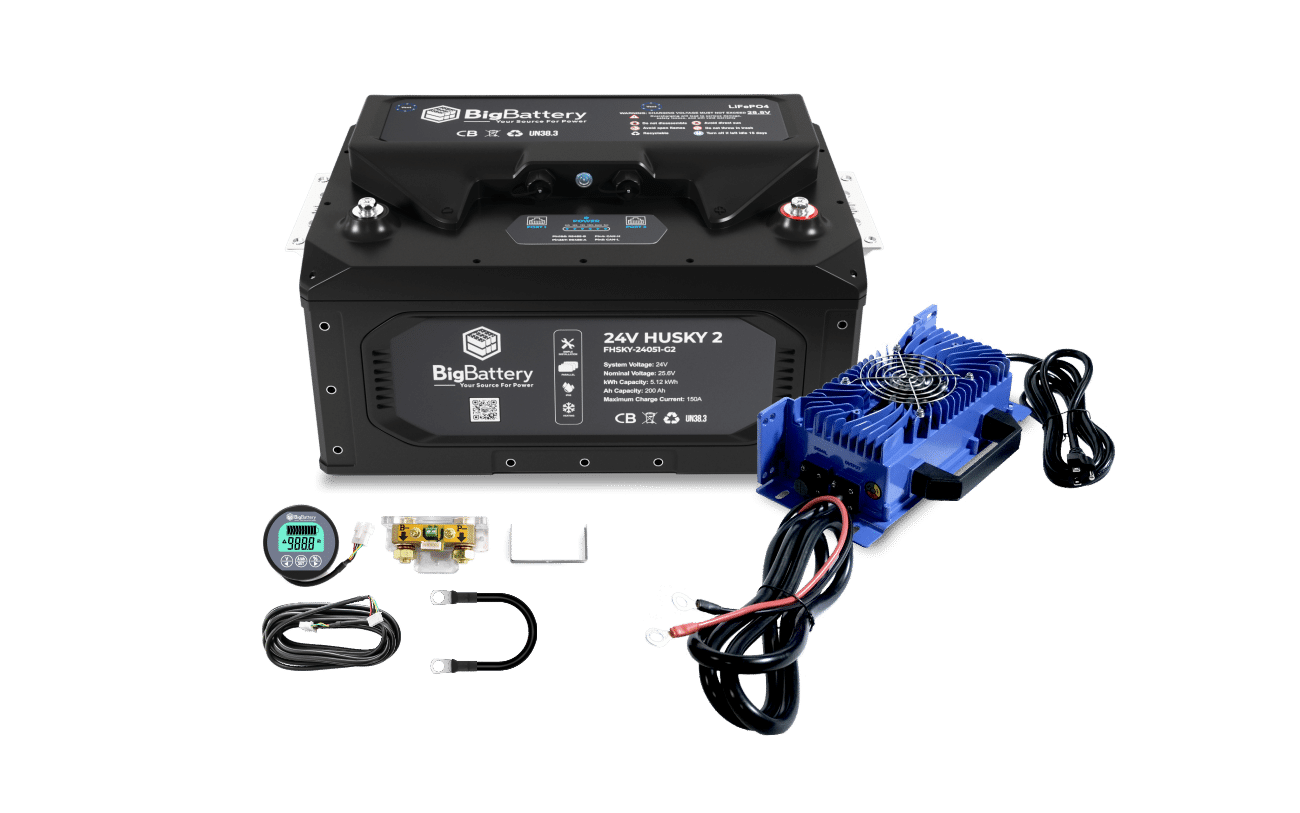

The 24V HUSKY 2 Inverter Kit is a compact, high-performance lithium power solution for RVs, vans, and adventure vehicles. Featuring a 5.12 kWh 24 V LiFePO₄ HUSKY 2 battery, this system delivers exceptional energy density, long cycle life, and dependable power for life on the road. Built with Tier 1 LFP cells, an advanced BMS, and a wide operating temperature range, it’s engineered for reliable performance in all climates.

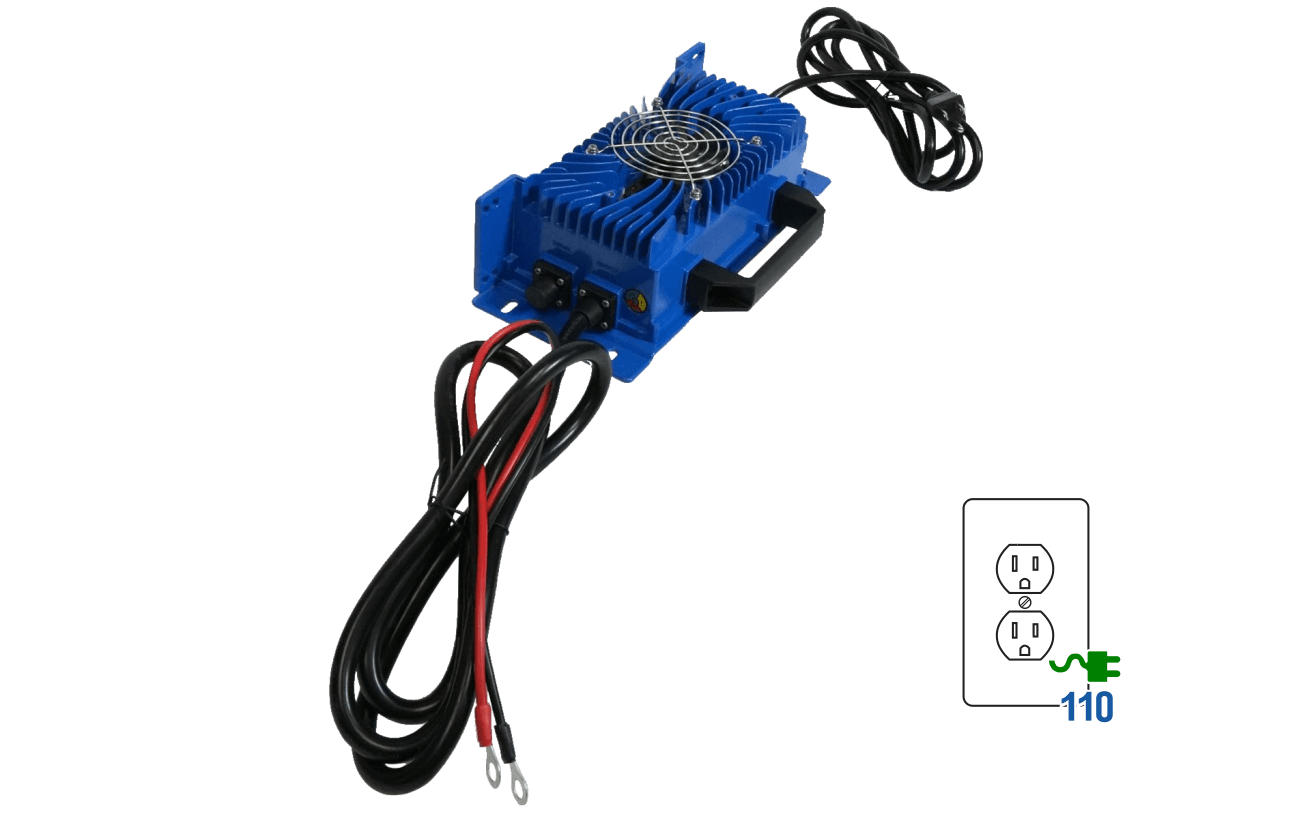

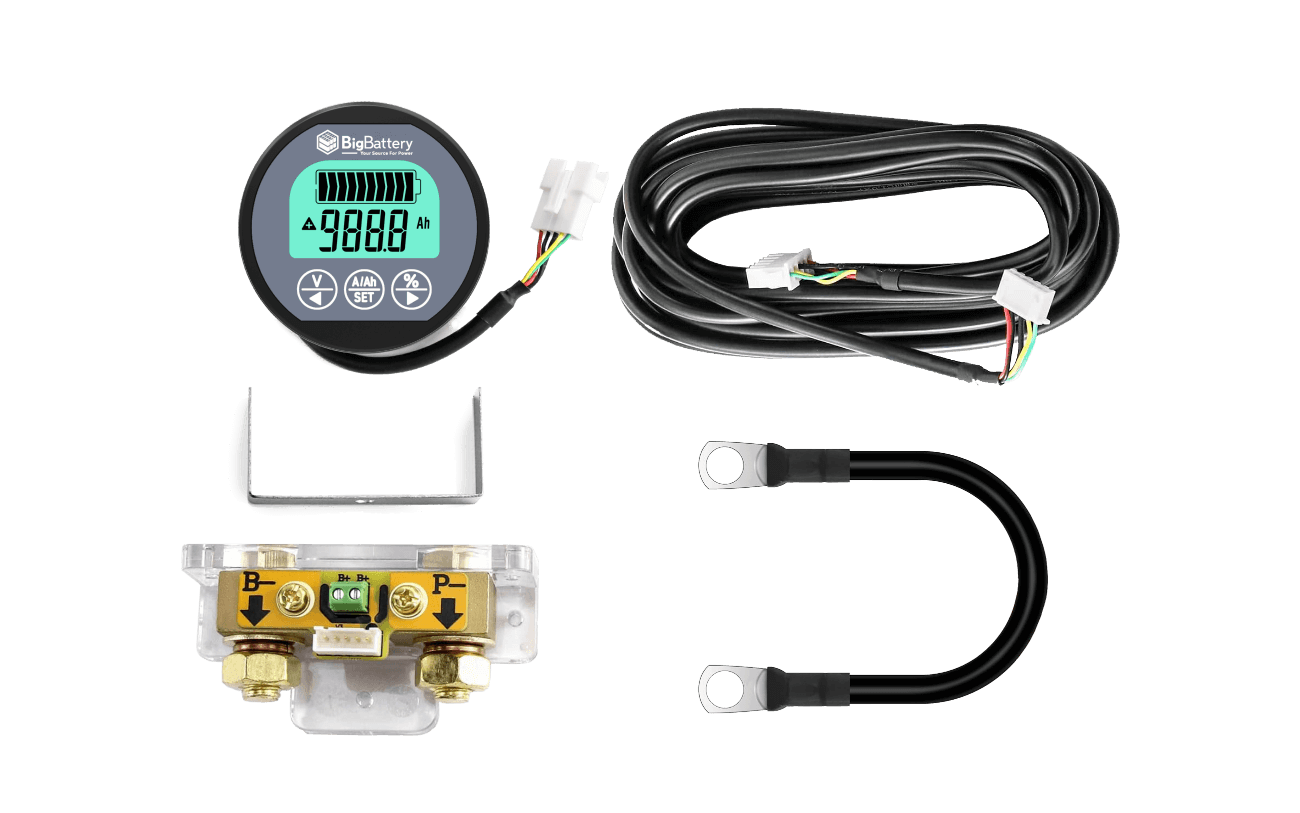

Housed in an IP65-rated enclosure with built-in self-heating, the HUSKY 2 supports safe cold-weather charging and year-round use. The kit includes CANBus and RS485 communications, a 350 A external capacity meter, an IP65-rated 30 A charger, and all required cabling for fast, plug-and-play installation. Lightweight, rugged, and easy to install, the 24V HUSKY 2 Kit keeps your adventures powered and worry-free wherever the road takes you.
Battery Downloads
DOWNLOADBattery Specifications
GTIN-12 (U.P.C.):850061252265
System Voltage:24V
Nominal Voltage:25.6V
Chemistry:LiFePO4
kWh Capacity:5.12kWh
Ah Capacity:200Ah
Charging Voltage Range:27.8 – 28V
Max Charge Voltage:29.2V
Operating Voltage Range:24 – 28.8V
Suggested Low Voltage Cutoff:24 – 25.4V
BMS Cutoff Range:21 – 23.5V
Cell Configuration:8S
Max Continuous Discharge Current:200A
Max Continuous Power:5120W
Max Discharge Peak Current:300A (Max 5 seconds)
Max Charge Current:150A
Charge Temperature Range:-4°F – 113°F (-20°C – 45°C)
Discharge Temperature Range:-4°F – 131°F (-20°C – 55°C)
Optimal Discharge Temperature Range:59°F – 95°F (15°C – 35°C)
Storage Temperature Range:-4°F – 113°F (-20°C – 45°C) (Max 6 months)
Weight:95 lb (43.1 kg)
Depth:12.6 in (320 mm)
Width:18.1 in (460 mm)
Height:9.8 in (249 mm)
Max Connections:Up to (16) Parallel
Protection Rating:IP65 / NEMA 4X
Communications:CANBus / RS485
Self-Heating:Yes
