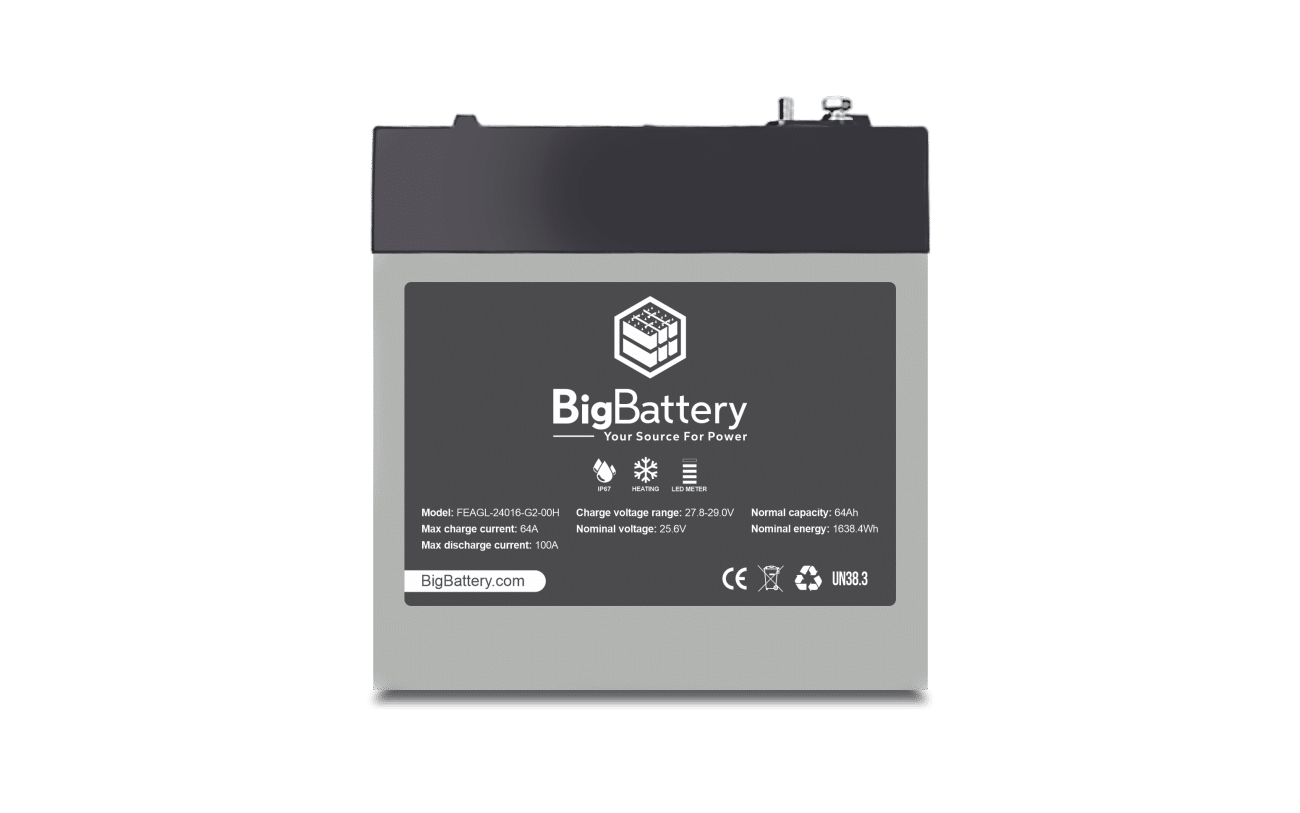

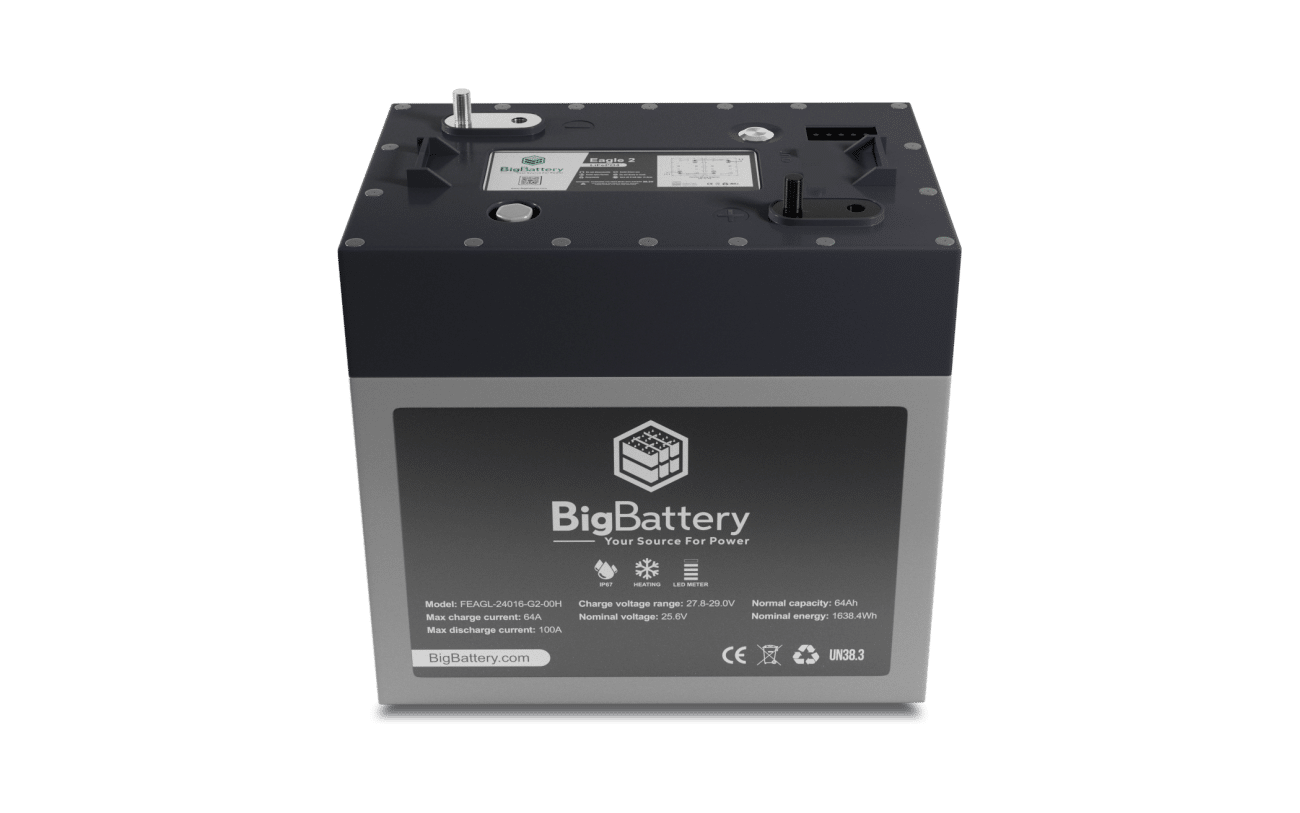

24V EAGLE 2 (No Comm) – LiFePO4 – 64Ah – 1.63kWh

Original price was: $720.00.Current price is: $650.00.

SKU# FEAGL-24016-G2-NC

Upgrade your equipment with the 24V Eagle 2 LiFePO₄ Battery (No Comm), a GC2-size, standalone lithium battery designed as a drop-in replacement for 24V lead-acid batteries, including the Trojan T-105. Delivering 1.63 kWh from Tier 1 LiFePO₄ cells, this 24-volt lithium battery provides reliable power, faster charging, and zero maintenance for industrial equipment, UTVs, RVs, marine systems, and light solar applications – without the need for CANbus communication or external monitoring.



Disclaimer: A single Eagle 2 battery is not designed to power an entire golf cart. The 2-Battery Eagle 2 Kit is the minimum recommended configuration. Always match your motor and controller power requirements to the kit’s continuous power rating. Operating outside specifications may void the warranty.

Designed For 24V Applications

  • T-105 EXACT REPLACEMENT
  • LIGHT INDUSTRIAL EQUIPMENT
  • FLOOR SWEEPERS
  • FLOOR SCRUBBERS
  • PALLET JACKS
  • SCISSOR LIFTS
  • LIGHT TOWERS
  • CLASS A, B, & C RVs
  • CAMPER VANS
  • EMERGENCY BACKUP
  • INCLUDES INTERNAL WARMERS
  • OPERATES IN SUB-ZERO TEMPS

Battery Downloads

SKU#:FEAGL-24016-G2-NC
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD

Battery Specifications

GTIN-12 (U.P.C.):850061252616
System Voltage:24V
Nominal Voltage:25.6V
Chemistry:LiFePO4
kWh Capacity:1.63kWh
Ah Capacity:64Ah
Charging Voltage Range:27.8 – 29V
Max Charge Voltage:29.2V
Operating Voltage Range:24 – 28.8V
Suggested Low Voltage Cutoff:24 – 25.4V
BMS Cutoff Range:21 – 23.5V
Cell Configuration:8S
Max Continuous Discharge Current:100A
Max Continuous Power:2560W
Max Discharge Peak Current:200A (Max 5 seconds)
Max Charge Current:64A
Charge Temperature Range:-4°F – 131°F (-20°C – 55°C)
Discharge Temperature Range:-4°F – 140°F (-20°C – 60°C)
Optimal Discharge Temperature Range:59°F – 95°F (15°C – 35°C)
Storage Temperature Range:23°F – 95°F (-5°C – 35°C) (Max 3 months), 32°F – 77°F (0°C – 25°C) (Max 12 months)
Weight:38 lb (17.2 kg)
Depth:7.1 in (180 mm)
Width:10.2 in (260 mm)
Height:10.8 in (274 mm)
Max Connections:Up to (10) Parallel
Protection Rating:IP67
Self-Heating:Yes
