12V 4X HUSKY2 KIT & AIMS Inverter with Charger

Original price was: $8,890.00.Current price is: $7,900.00.

SKU# K0746

The 12V 4× HUSKY 2 Inverter Kit with AIMS Inverter/Charger is a high-capacity mobile and marine power solution built for RVs, camper vans, trailers, boats, and small yachts. Featuring four 12V 5.12 kWh LiFePO₄ HUSKY 2 batteries for a total of 20.48 kWh, this kit delivers high amp output, long cycle life, and dependable performance using Tier 1 LFP cells and advanced BMS protection.



Housed in IP65-rated, vibration-resistant enclosures with built-in self-heating, the HUSKY 2 supports reliable operation in cold and demanding environments. Paired with a 2,000 W AIMS pure sine wave inverter/charger, the system provides clean, efficient AC power for sensitive electronics with quieter operation and reduced heat. Compact, rugged, and easy to install, the 12V HUSKY 2 AIMS Kit delivers worry-free power wherever reliable energy is needed.

Designed For 48V Applications
  • LEAD ACID REPLACEMENT
  • CLASS A, B, & C RVs
  • CAMPER VANS
  • TOW-BEHIND TRAILERS
  • MARINE SYSTEMS
  • BOATS & YACHTS
  • COMMERCIAL VEHICLES
  • FOOD TRUCKS
  • EMERGENCY BACKUP
  • LIGHT TOWERS & SIGNS

Battery Downloads

SKU#: K0746
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
Inverter User Manual:DownloadDOWNLOAD
Safety Data Sheet:DownloadDOWNLOAD

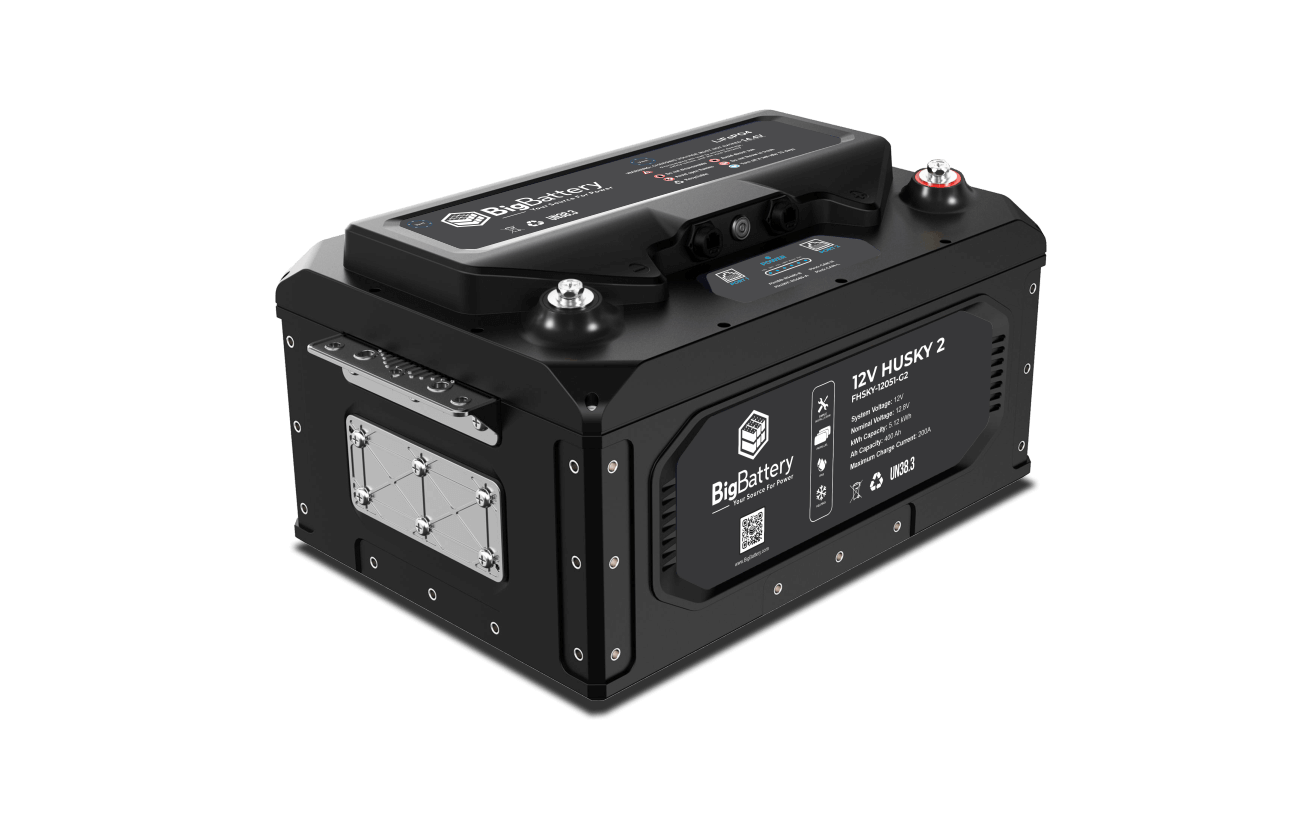

Battery Specifications

System Voltage:12V
Nominal Voltage:12.8V
Chemistry:LiFePO4
kWh Capacity:5.12kWh
Ah Capacity:400Ah
Charging Voltage Range:13.9V – 14V
Max Charge Voltage:14.4V
Operating Voltage Range:12V – 14.4V
Suggested Low Voltage Cutoff:12V – 12.7V
BMS Cutoff Range:10.5V – 11.75V
Cell Configuration:4S
Max Continuous Discharge Current:300A
Max Continuous Power:5120W
Max Discharge Peak Current:350A (Max 5 seconds)
Max Charge Current:200A
Charge Temperature Range:-4°F – 113°F (-20°C – 45°C)
Discharge Temperature Range:-4°F – 131°F (-20°C – 55°C)
Optimal Discharge Temperature Range:59°F – 95°F (15°C – 35°C)
Storage Temperature Range:-4°F – 113°F (-20°C – 45°C) (Max 6 months)
Weight:95 lb (43.1 kg)
Depth:12.6 in (320 mm)
Width:18.1 in (460 mm)
Height:9.8 in (249 mm)
Max Connections:Up to (16) Parallel
Protection Rating:IP65 / NEMA 4X
Communications:CANBus / RS485
Self-Heating:Yes

Inverter Downloads

SKU#: K0746
User Manual:DownloadDOWNLOAD

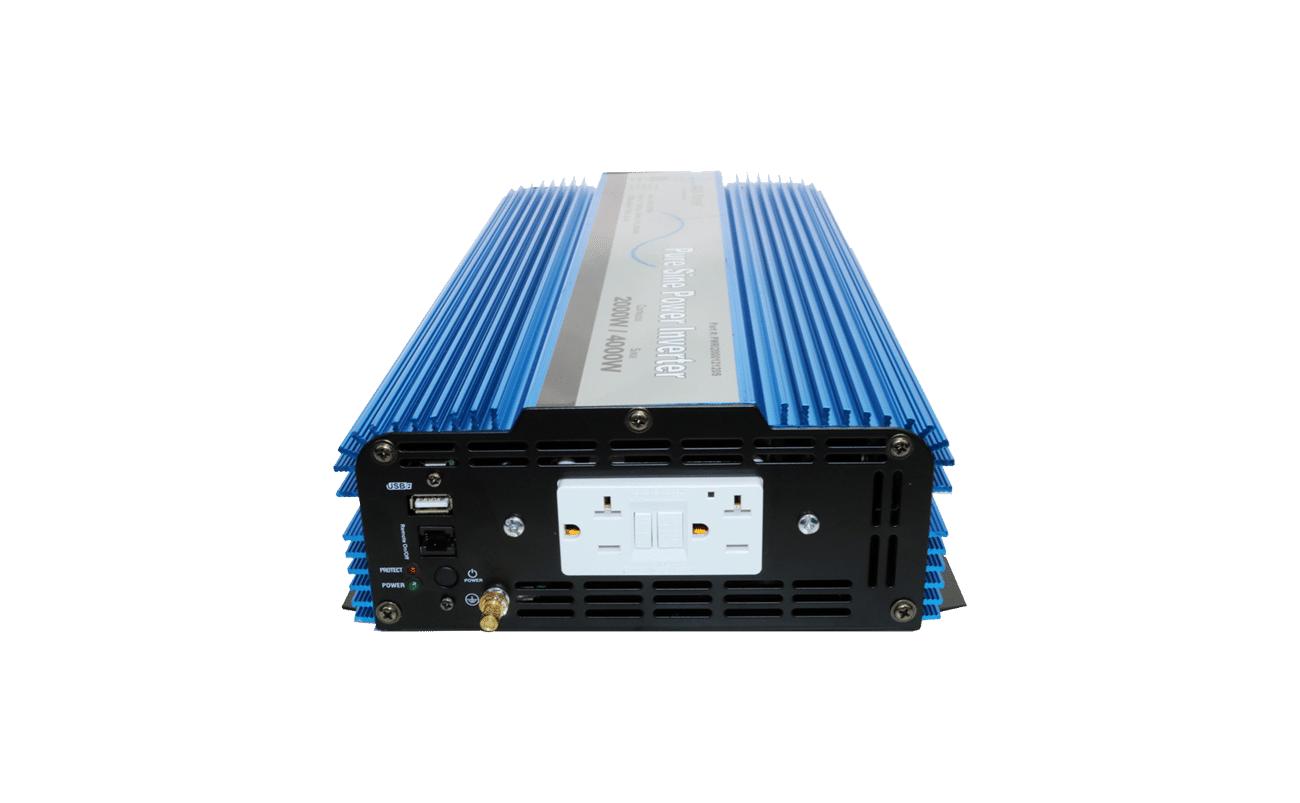

Inverter Specifications

Battery Voltage:12VDC
Continuous Output Power:2000W
Surge Power (Peak):4000W
Operating Voltage (DC Input):9.5 – 16VDC
Output Voltage:120VAC
Output Waveform:Pure Sine Wave
Output Frequency:60Hz
Efficiency (Full Load):90%
AC Current:16.6A
Battery Low Voltage Alarm:9.8V (±0.5V)
Battery Low Voltage Shutdown:9.5V (±0.5V)
Low Input Voltage Shutdown:9.5V (±0.5V)
High Input Voltage Shutdown:16V
Min. Operating Temperature (No Load):0ºC (32ºF)
Max. Operating Temperature (Full Load):40ºC (104ºF)
Weight:11.8 lbs
Depth:17.1 in
Width:9.4 in
Height:3.9 in
