Designed For 48V Applications
- LEAD ACID REPLACEMENT
- CLASS A, B, & C RVs
- CAMPER VANS
- TOW-BEHIND TRAILERS
- MARINE SYSTEMS
- BOATS & YACHTS
- COMMERCIAL VEHICLES
- FOOD TRUCKS
- EMERGENCY BACKUP
- LIGHT TOWERS & SIGNS

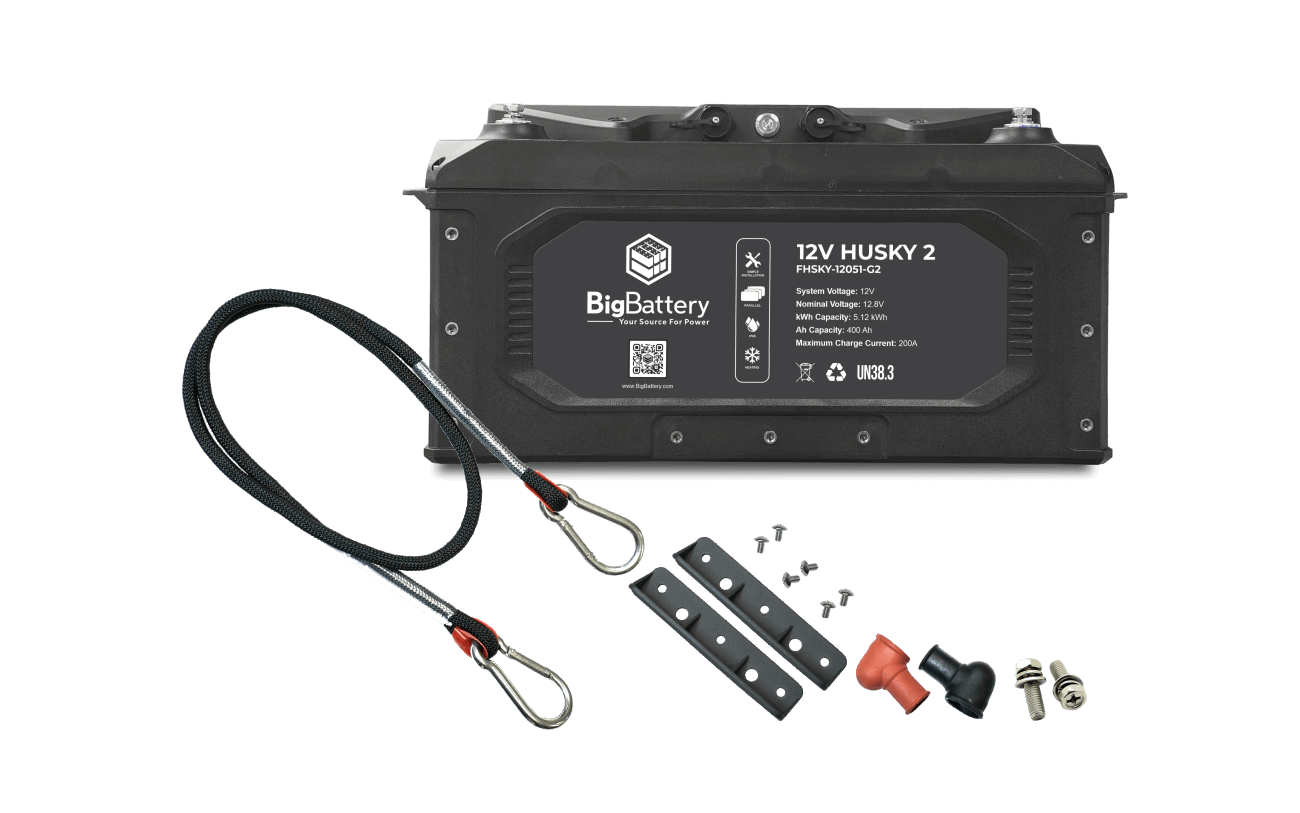

12V 3X HUSKY 2 KIT
Original price was: $6,190.00.$5,400.00Current price is: $5,400.00.
SKU# K0748
The 12V 3× HUSKY 2 Kit is a high-capacity lithium power solution for RVs, camper vans, trolling motors, and marine applications. Featuring three 12V 5.12 kWh LiFePO₄ HUSKY 2 batteries for a total of 15.36 kWh, this kit delivers exceptional energy density, long cycle life, and reliable performance using Tier 1 LFP cells and advanced BMS protection.
Housed in IP65-rated enclosures with built-in self-heating, the HUSKY 2 supports dependable operation in cold and demanding environments. With CANBus and RS485 communications, a wide operating temperature range, and a plug-and-play, maintenance-free design, the 12V HUSKY 2 Kit provides lightweight, worry-free power for life on the road or water.
DOWNLOADBattery Specifications
System Voltage:12V
Nominal Voltage:12.8V
Chemistry:LiFePO4
kWh Capacity:5.12kWh
Ah Capacity:400Ah
Charging Voltage Range:13.9V – 14V
Max Charge Voltage:14.4V
Operating Voltage Range:12V – 14.4V
Suggested Low Voltage Cutoff:12V – 12.7V
BMS Cutoff Range:10.5V – 11.75V
Cell Configuration:4S
Max Continuous Discharge Current:300A
Max Continuous Power:5120W
Max Discharge Peak Current:350A (Max 5 seconds)
Max Charge Current:200A
Charge Temperature Range:-4°F – 113°F (-20°C – 45°C)
Discharge Temperature Range:-4°F – 131°F (-20°C – 55°C)
Optimal Discharge Temperature Range:59°F – 95°F (15°C – 35°C)
Storage Temperature Range:-4°F – 113°F (-20°C – 45°C) (Max 6 months)
Weight:95 lb (43.1 kg)
Depth:12.6 in (320 mm)
Width:18.1 in (460 mm)
Height:9.8 in (249 mm)
Max Connections:Up to (16) Parallel
Protection Rating:IP65 / NEMA 4X
Communications:CANBus / RS485
Self-Heating:Yes
