EG4 All Weather Battery – EG4 12000XP Hybrid Inverter (ESS) | 14.3-85.8 kWh | Off-Grid Home Solar System (24kW-72kW PV)

$30,425.00

SKU# K0766-V

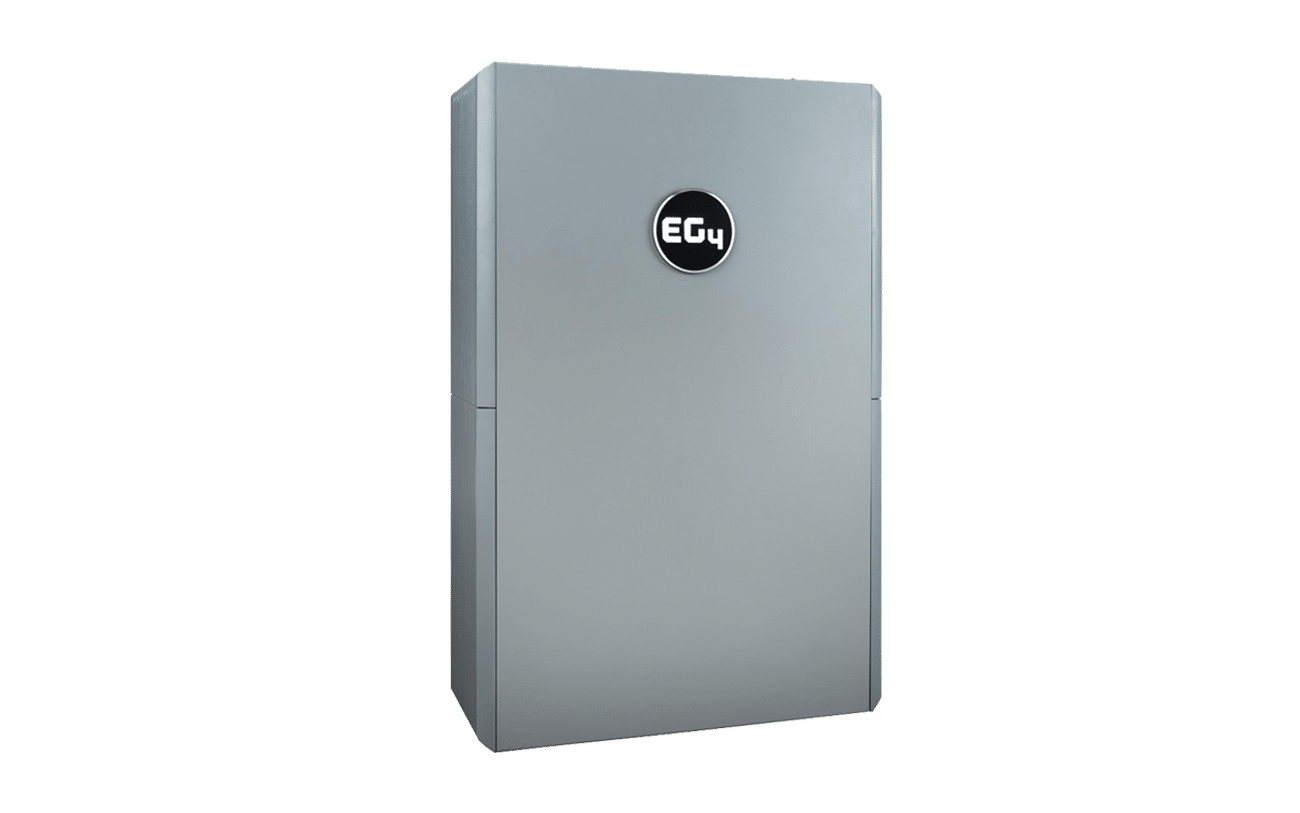

The EG4 All Weather + 12000XP ESS System is a wall-mountable, all-weather off-grid energy storage solution built for homes, cabins, and homesteads that demand reliable power in any environment. Starting at 28.6 kWh and expandable up to 85.8 kWh, this 48 V system features an IP65-rated enclosure, advanced BMS with auto cell-balancing, built-in self-heating, internal fire suppression, and full CANBus/RS485 communication. Rated for 8,000 cycles at 80% DoD, it delivers long-term durability for indoor or outdoor installations.

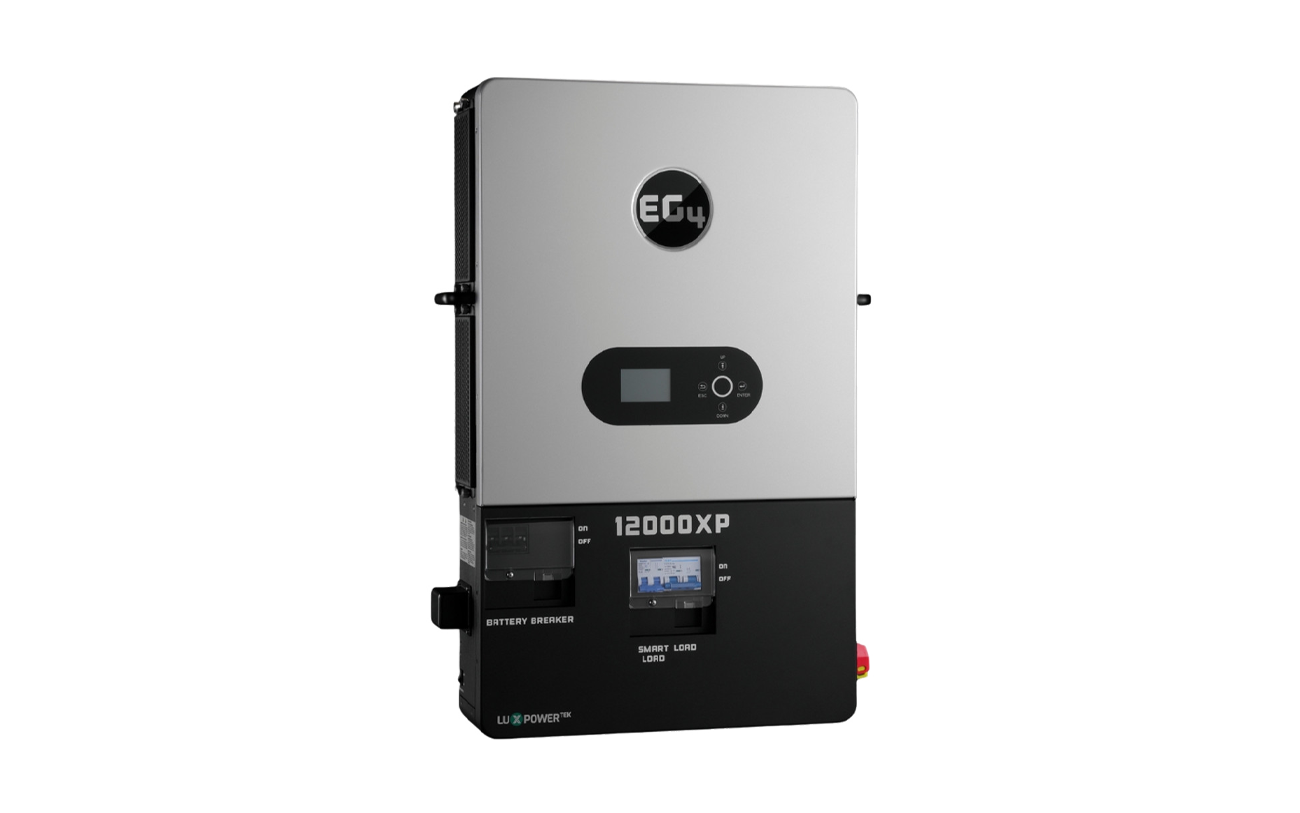

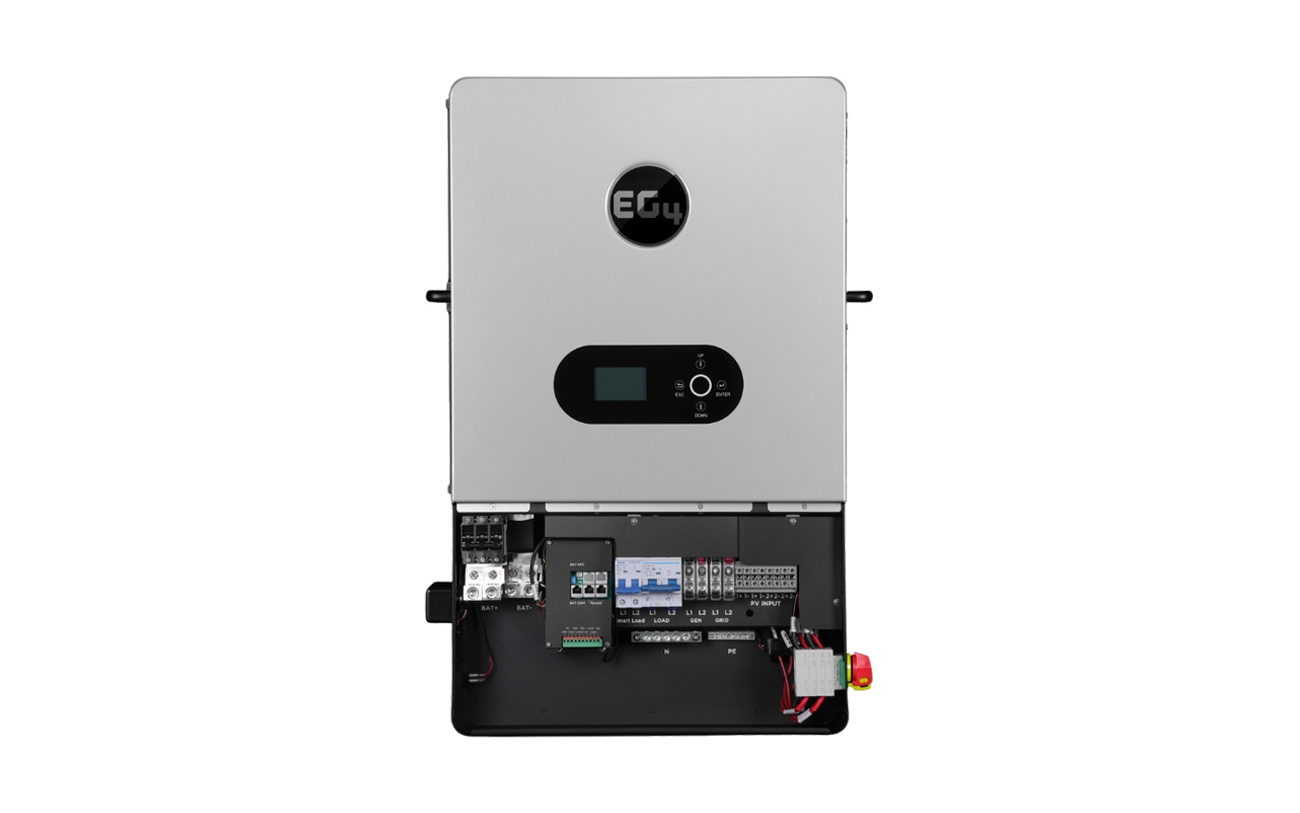

Paired with the EG4 12000XP split-phase hybrid inverter, the system provides 12 kW of output, supports up to 24 kW of solar PV input, and enables seamless on/off-grid switching with smart load control, AC coupling, and peak shaving. Compatible with many 48 V inverters, the EG4 All Weather system offers a scalable, efficient path to energy independence, backup protection, and year-round peace of mind.

Choose Your Inverter Option*

12kPV 18kPV EG4 FlexBoss18 EG4 FlexBoss21

Choose Your Battery Option*

EG4 280Ah All Weather EG4 280Ah Indoor None

Choose Your Inverter Option*

EG4 6000XP EG4 12000XP None

Choose Your Battery Option*

BigBattery NEXUS BigBattery ETHOS BigBattery HUSKY2 INV EG4 280Ah All Weather EG4 280Ah Indoor None

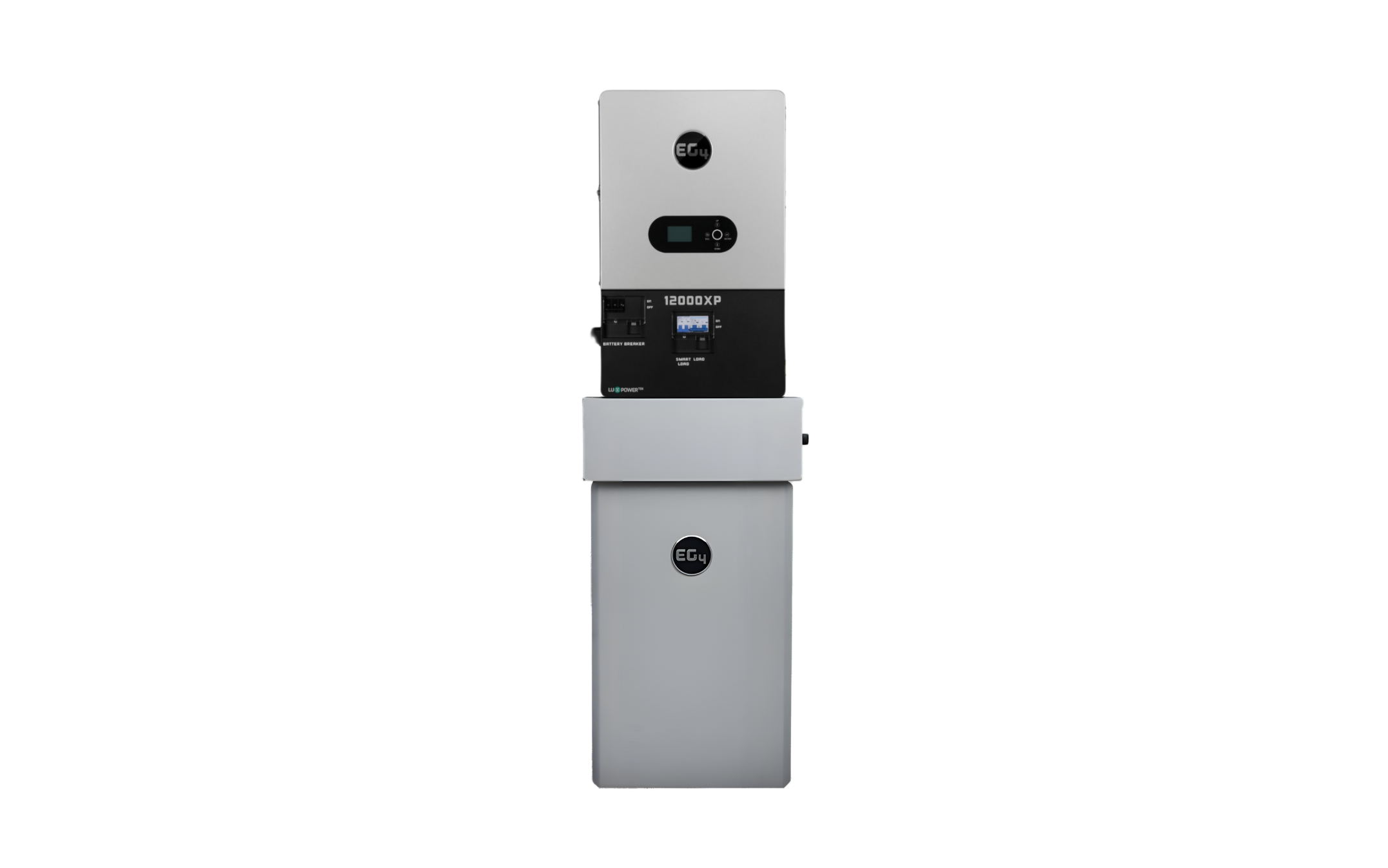

Whether indoors or outdoors, our All-Weather battery is built to last. Paired with the 12000XP inverter, the complete ESS system is engineered for safe, optimal indoor performance.

.



See More On YouTube

Battery Downloads

SKU#:K0149, K0766, K0767, K0165, K0166, K0167, K0168
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
UL9540A Certificate:DownloadDOWNLOAD
UL1973 Certificate:DownloadDOWNLOAD
Quick Start Guide:DownloadDOWNLOAD
CEC Listing- EG4 WallMount All Weather:Go to linkGO TO LINK

Battery Specifications

Nominal Voltage:51.2V
Chemistry:Lithium Iron Phosphate (LiFePO4)
kWh Capacity:14.3kWh
Ah Capacity:280Ah
BMS Charging Voltage (Bulk/Absorb):56.0V (±0.8V)
Rec. Charging Voltage (Bulk/Absorb):56.2V (±0.2V)
Rec. Float Setting:54V (±0.2V)
Rec. SoC Cutoff Setting:20%
Max. Continuous Charge Current:140A
Max. Continuous Discharge Current:140A (200A Max. Continuous for 30 min)
Rec. Charge Current:60 – 140A
Rec. Discharge Current:60 – 140A
Max Continuous Discharge Rate:10,240W
Voltage:56V
Power Consumption:224W
Internal Temperature Cutoffs:≤32ºF (On) | ≥41ºF (Off)
Charging Temperature Range:32ºF – 122ºF (0ºC – 50ºC)
Discharging Temperature Range:-4ºF – 131ºF (-20ºC – 55ºC)
Storage Temperature Range:32ºF – 113ºF (0ºC – 45ºC)
Operating Altitude:<16,404 ft (<5,000 m)
Protection Rating:IP65
Communications:RS485 | CANBus
Weight:308.6 lbs (140 kg)
Depth:9.1 in (232 mm)
Width:22.3 in (566 mm)
Height:36.1 in (916 mm)

Inverter Downloads

SKU:K0149, K0766, K0767, K0165, K0166, K0167, K0168
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
UL1741 Certificate:DownloadDOWNLOAD
UL9540 Certificate:DownloadDOWNLOAD
WiFi Configuration Guide:DownloadDOWNLOAD
CEC Listing – EG4 12000XP:Go to linkGO TO LINK

Inverter Specifications

Nominal AC Voltage:120/240VAC | 120/208VAC (L1/L2/N required)
Frequency (Grid | Generator):60 Hz (Default) | 50 Hz (Configurable)
Max Continuous AC Current (Grid | Generator):100A @ 240VAC | 62.5A @ 240VAC
Max AC Input Power:24000W
AC Bypass (Grid | Generator):100A | 90A
Recommended Generator Capacity:6000W – 15000W
Output Voltage:120/240VAC | 208VAC
Output Frequency:60 Hz (Default) | 50 Hz (Configurable)
Max Continuous Output Current:50A @ 240VAC | 57.7A @ 208VAC
Nominal Output Power (without PV):12000W @ 240V | 12000W @ 208V
Nominal Output Power (with PV):12000W @ 240V | 12000W @ 208V
Max Continuous Wattage:12000W (L1/L2) | 6000W (L1-N/L2-N)
Surge Capacity:18000W (5 sec) | 15000W (10 sec)
Power Factor:0.99
Total Harmonic Distortion:<3%
Switching Time:<10 ms (Single) | <20 ms (Parallel)
No. of MPPTs (Inputs per MPPT):2 (2)
Max Input Current:35A / 35A
Max Short Circuit Input Current:44A / 44A
DC Input Voltage Range:100 – 480VDC
Min Start Up Voltage:100VDC
MPPT Operating Voltage Range:120 – 385VDC
Nominal MPPT Voltage:320VDC
Max Utilized PV Power:24000W (12000W per MPPT)
Max Recommended PV Input:28000W (14000W per MPPT)
Efficiency:99% (MPPT) | 93.5% (PV to Loads) | 92.8% (PV to Battery) | 92.5% (AC to Battery) | 90.2% (Battery to Loads)
Idle Consumption (Standby Mode):<70W
Nominal Voltage:48VDC
Battery Voltage Range:46.4 – 60VDC
Max Charge / Discharge Current:250A
Max Charge / Discharge Power:12000W
DC Cut-Off Voltage:59VDC
Recommended Battery Capacity per Inverter:>400Ah
Max Parallel Connections:6
Protection Rating:IP20
Communication Interface:RS485 / CANBus / WiFi
Operating Temperature (Full Load):32ºF – 113ºF (0ºC – 45ºC)
Storage Temperature:5ºF – 140ºF (-15ºC – 60ºC)
Altitude:<6,561 ft (2000 m)
Relative Humidity:5 – 95% (Non-Condensing)
Typical Noise Emission:<60 dB
Cooling Method:Fan
Weight:104.7 lbs (47.5 kg)
Depth:5.9 in (150 mm)
Width:20.9 in (530 mm)
Height:34.25 in (870 mm)

Compare Battery & Inverter

EG4 All Weather Battery: 10-Year EG4 Manufacturer Warranty

EG4 12000xp Inverter: 5-Year EG4 Manufacturer Warranty
